Preparing Cross Member Above Rear Axle For Installation - Ar64.20-P-1300-08LWE

Model 213.0/2

Model 213.1

except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))

1. Grind mating surfaces on rear axle crossmember (1) down to bare metal in crosshatched areas.
2. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

3. Grind mating surfaces on rear axle crossmember (1) down to bare metal in crosshatched areas.
4. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

5. Grind mating surfaces on rear axle crossmember top section (2) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

6. Remove grinding dust.
7. Grind mating surface on end plate (3) down to bare metal in crosshatched area.
8. Remove grinding dust.

   Observe preliminary treatment of bonding surface.

   End plate (3), inside

   Courtesy of MERCEDES-BENZ USA

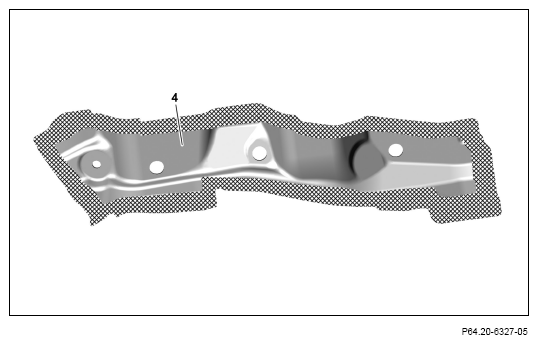

9. Grind mating surface on end plate (4) down to bare metal in crosshatched area.
10. Remove grinding dust.

    Observe preliminary treatment of bonding surface.

    End plate (4), inside
