Install Rear Wall - Ar64.10-P-5746-03LWE

Model 213.0/1

Courtesy of MERCEDES-BENZ USA

1. Install rear wall (1) and crossmember (2), fit and fix in place.
2. Rear wall (1) and crossmember (2) rp  (area A).

   Courtesy of MERCEDES-BENZ USA

3. Drill rivet holes on rear wall (1) with Ø 6.7 mm bit (areas B, C and D).

   Drill rivet holes offset to impact nails in body (areas C).

   Drill rivet holes through existing holes in body (area D).

4. Remove rear wall (1).
5. Deburr rivet holes on rear wall (1) and body on both sides.
6. Remove drilling chips.
7. Coat insides of riveted joints with zinc dust paint (areas B).

   Courtesy of MERCEDES-BENZ USA

8. Rear wall (1) and den crossmember (2) rp (area E).

   Courtesy of MERCEDES-BENZ USA

9. Apply 2-component adhesive to body in crosshatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

10. Install rear wall (1) and fix in place.
11. Rivet rear wall (1) with Ø 6.4x12 rivets (areas F).
12. Rivet rear wall (1) with Ø 6.5x14.5 rivets (areas G).

    Courtesy of MERCEDES-BENZ USA

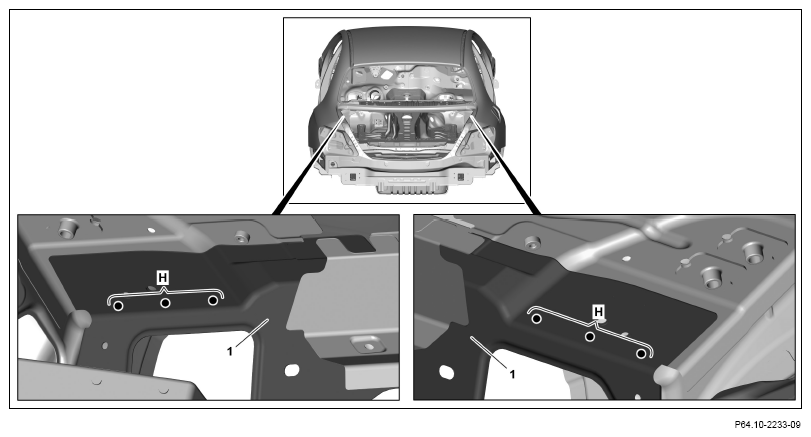

13. Rear wall (1) rp (areas H).

    Courtesy of MERCEDES-BENZ USA

14. Install mounting console (3), fit and fix in place.

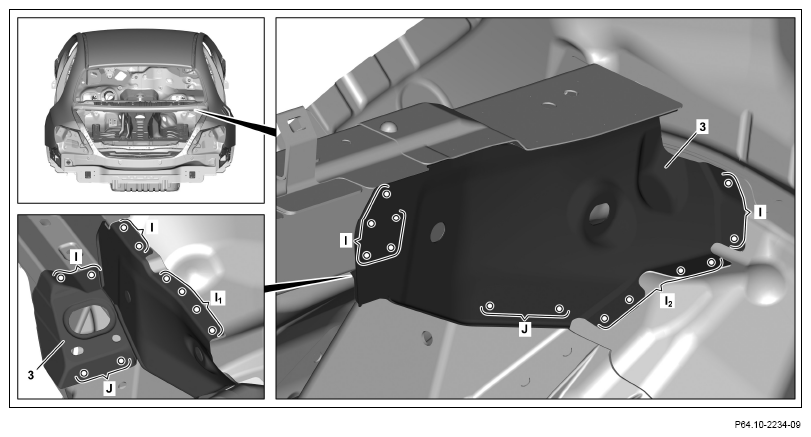

15. Drill rivet holes on mounting console (3) with Ø 6.7 mm bit (areas I, I₁ , I₂ and J).

    Drill rivet holes offset to impact nails in body (areas J).

    Drill rivet holes from outside (area I₂ ).

16. Countersink rivet holes from top (area I₁ ).
17. Remove mounting console (3).
18. Deburr rivet holes on mounting console (3) and body on both sides.
19. Remove drilling chips.
20. Coat insides of riveted joints with zinc dust paint (areas I, I₁ and I₂ ).
21. Apply 2-component adhesive to crosshatched area of body.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

22. Install right mounting console (3) and fix in place.
23. Rivet right mounting console (3) with Ø 6.4x12 rivets (areas K).
24. Rivet right mounting console (3) with Ø 6.5x12.5 rivets (areas L).
25. Rivet right mounting console (3) with Ø 6.4x15.5 countersunk-head rivet from top (area N).
26. Rivet right mounting console (3) with Ø 6.4x12 rivet from top (area K₁ ).
27. Right mounting console (3) rp (area M).

    Courtesy of MERCEDES-BENZ USA

28. Install left mounting console (4), fit and fix in place.

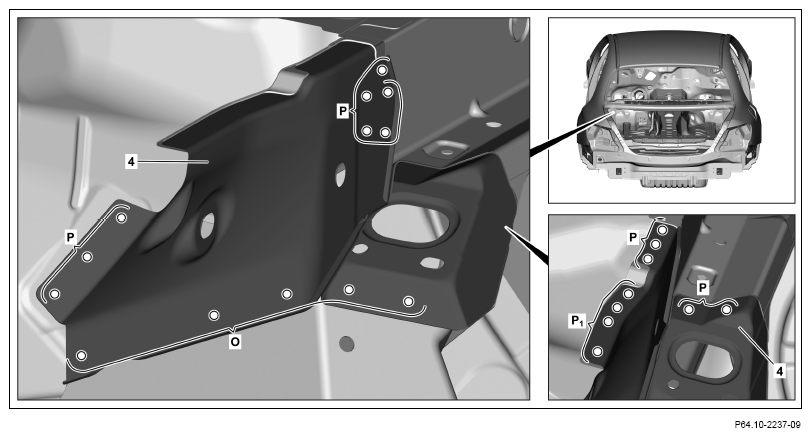

29. Drill rivet holes on left mounting console (4) with Ø 6.7 mm bit (areas O, P and P₁ ).

    Drill rivet holes offset to impact nails in body (areas O).

30. Countersunk rivet holes from top (area P1).
31. Remove left mounting console (4).
32. Deburr rivet holes on mounting console (4) and body on both sides.
33. Remove drilling chips.
34. Coat insides of riveted joints with zinc dust paint (areas P and P₁ ).
35. Apply 2-component adhesive to crosshatched area of body.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

36. Install left mounting console (4) and fix in place.

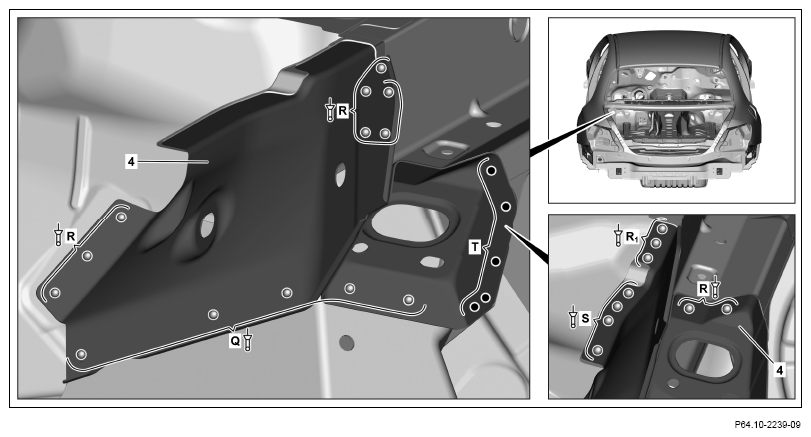

37. Rivet left mounting console (4) with Ø 6.5x12.5 rivets (area Q).
38. Rivet left mounting console (4) with Ø 6.4x12 rivets (areas R).
39. Rivet left mounting console (4) with Ø 6.4x15.5 countersunk-head rivet from top (area S).
40. Rivet left mounting console (4) with Ø 6.4x12 rivet from top (area R₁ ).
41. Left mounting console (4) RP (area T).
