Install Cross Member And Weld In - Ar64.20-P-1060-03LWT

Model 213.2

1. Install crossmember (7), fit and fix in place.

   The following operation steps 2 and 3 are shown on the left side of the vehicle and must be performed in the same way on the right side of the vehicle.

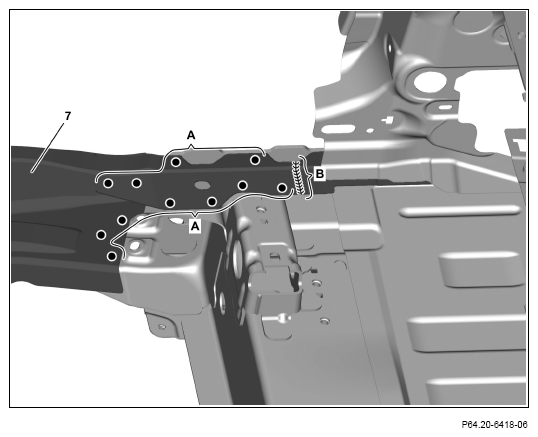

2. Crossmember (7) rp (areas A).
3. Crossmember (7) SG (area B).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

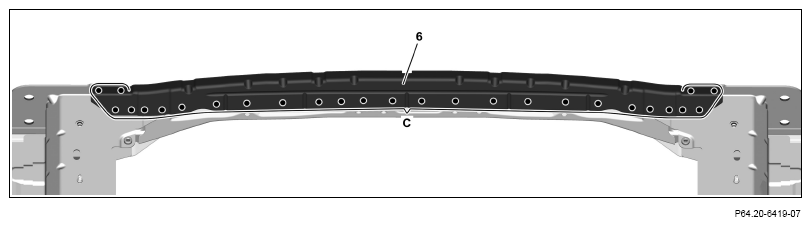

4. Install support angle (6), fit and fix in place.
5. Support angle (6) rp (area C).
