Install Cross Member And Weld In - Ar64.20-P-1060-03LWE

Model 213.0/1

1. Install crossmember (2), fit and fix in place.

   The following operation step 2 is shown on the left side of the vehicle and must be performed analogously on the right side.

2. Crossmember (2) rp (area

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

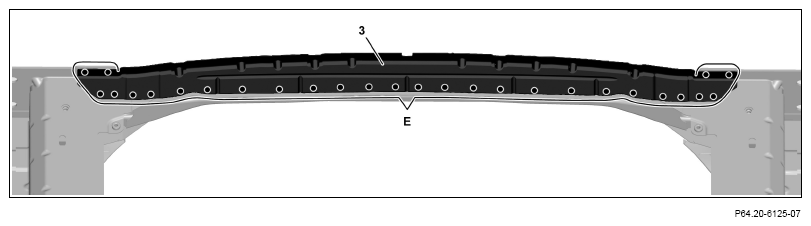

3. Install support angle (3) and fix in place.
4. Support angle (3) rp (area E).
