Remove/Install Load Compartment Cover Guide Rail - AR68.30-P-1100LWT
Model 213.2
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 213.2 with code P17 (KEYLESS-GO package) | AH80.61-P-0001-01A | |
| Remove/install | |||

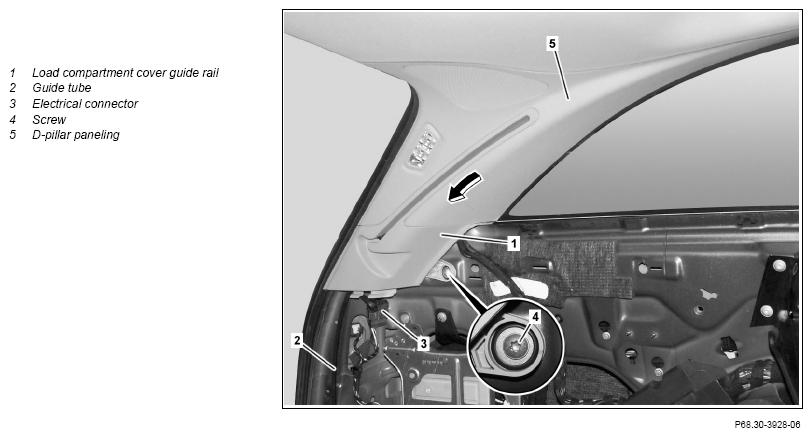

| 1 | Remove left and right side load compartment cover | AR68.30-P-1185LWE | |
| 2 | Unclip guide tube (2) from bracket | ||
| 3 | Disconnect electrical connector (3) | ||
| 4 | Unscrew bolt (4) | ||
| 5 | Unclip D-pillar paneling (5) in lower area | Carefully unclip D-pillar paneling (5). Otherwise the electrical connectors below can be damaged. |
|
| 6 | Remove load compartment cover guide rail (1) from D-pillar paneling (5) in direction of arrow | ||
| 7 | Install in the reverse order |
