Lift/Lower Vehicle - AR00.60-P-1002LWG

Model 205

Model 213

Model 238

Model 253

Courtesy of MERCEDES-BENZ USA

Shown on model 253

Courtesy of MERCEDES-BENZ USA

Picture no., etc.	Work notes
	Risk of death  caused by vehicle slipping or toppling off during lifting	Only lift vehicle at the lift support points specified by the vehicle manufacturer.	AS00.00-Z-0032-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A

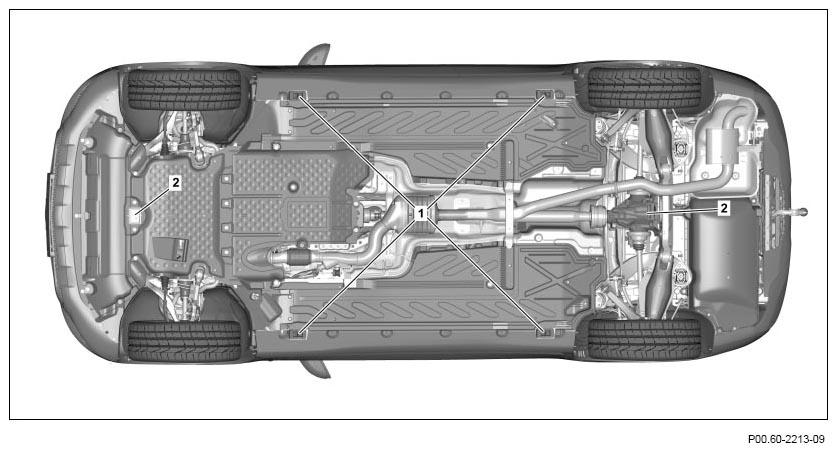

1	Vehicle lift support point
2	Lift support points for pit and floor jacks
3	Adapter	For removal of longitudinal member panels, insert into vehicle lift support points (1).
		Adapter kit	Fig 2

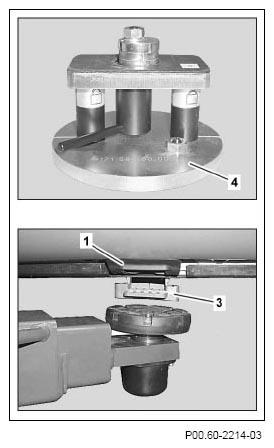

4	Vehicle lift safety device	Insert in place of vehicle lift support points (1) to secure the vehicle against slipping or tilting. The vehicle lift safety devices (4) must always be mounted in pairs, i.e. at two positions in the vehicle longitudinal members. The vehicle lift safety devices (4) can both be mounted at the front, at the rear or on one side.
		Vehicle hoist securing tool	Fig 1

Fig 1: Identifying Vehicle Hoist Securing Tool (171 589 01 31 00)
