Remove/Install Upper Liftgate Trim - AR72.20-P-6631LWS
Model 205.2
Model 213.2
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 205.2 with Code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Model 213.2 with Code P17 (KEYLESS-GO package) |
|||
| Remove/install | |||

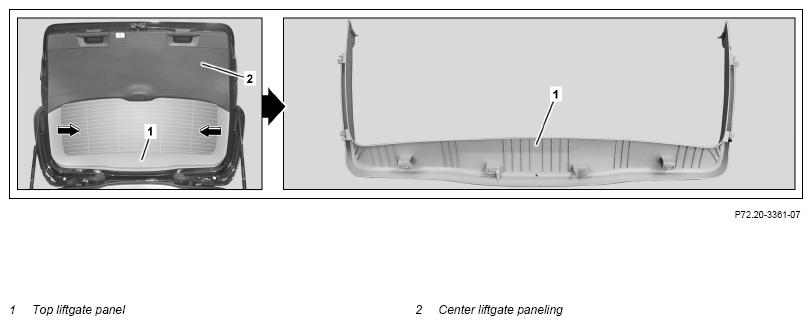

| 1 | Remove center liftgate paneling (2) | AR72.20-P-6618LWS | |
| 2 | Unclip top liftgate panel (1) from window frame in direction of arrow | ||
| 3 | Completely unclip top liftgate panel (1) and remove | ||
| 4 | Install in the reverse order |
