Overview Of System Components Of Parking Assistance Systems - GF54.00-P-9997FQ

MODEL 218

up to year 2015

with CODE 218 (Rear view camera)

with CODE 220 (PARKTRONIC)

with CODE 235 (Active Parking Assist with PARKTRONIC)

G12625614Courtesy of MERCEDES-BENZ USA

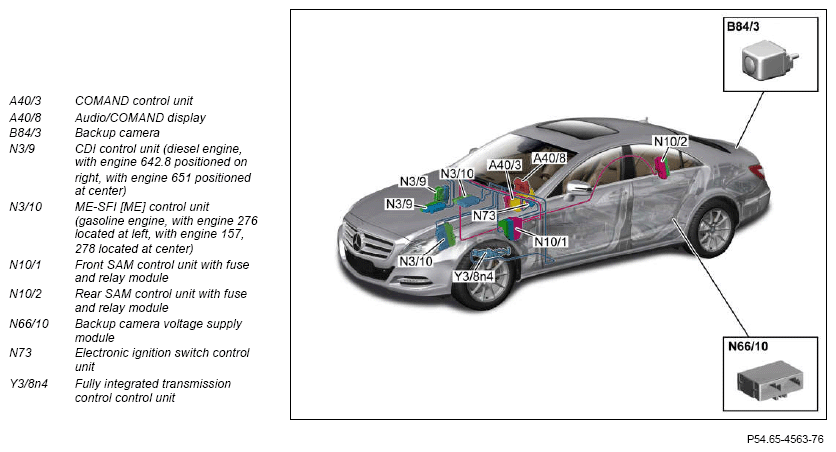

Reversing camera (with code (218) Reversing camera without code (498) Japan version), model 218.3

G12625615Courtesy of MERCEDES-BENZ USA

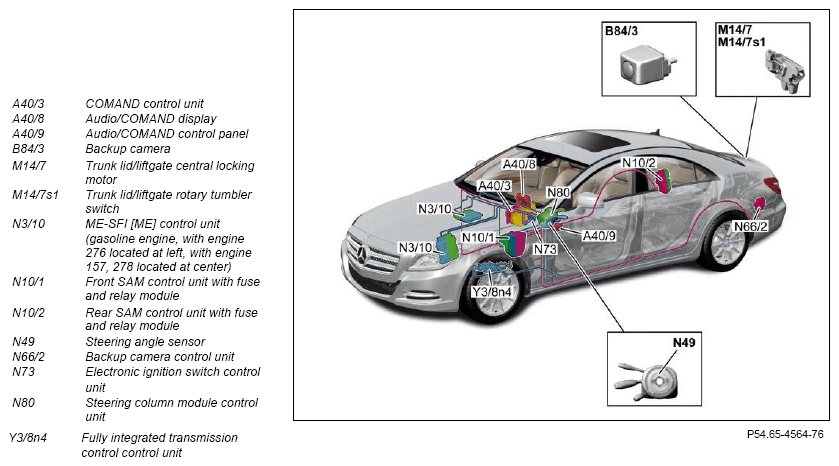

Reversing camera (with code (218) Reversing camera and code (498) Japan version), model 218.3

G12625616Courtesy of MERCEDES-BENZ USA

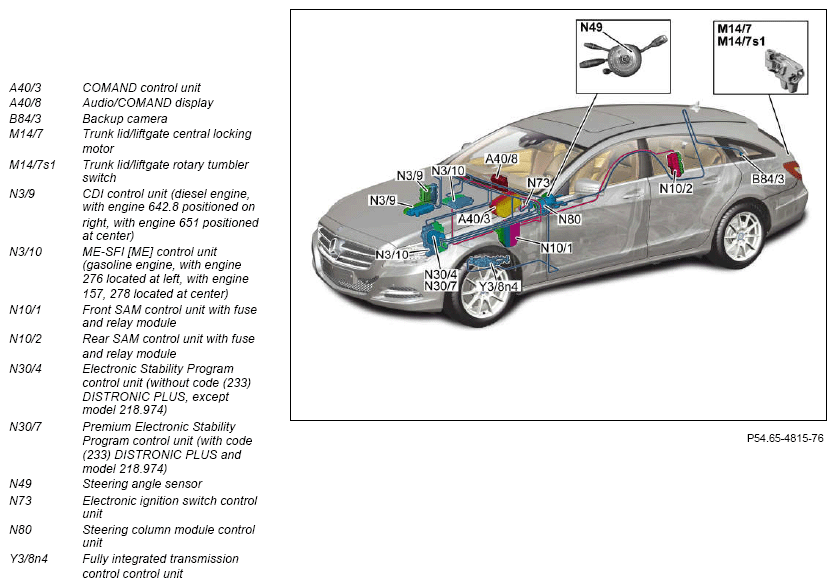

Reversing camera (with code (218) Reversing camera), model 218.9

G12625617Courtesy of MERCEDES-BENZ USA

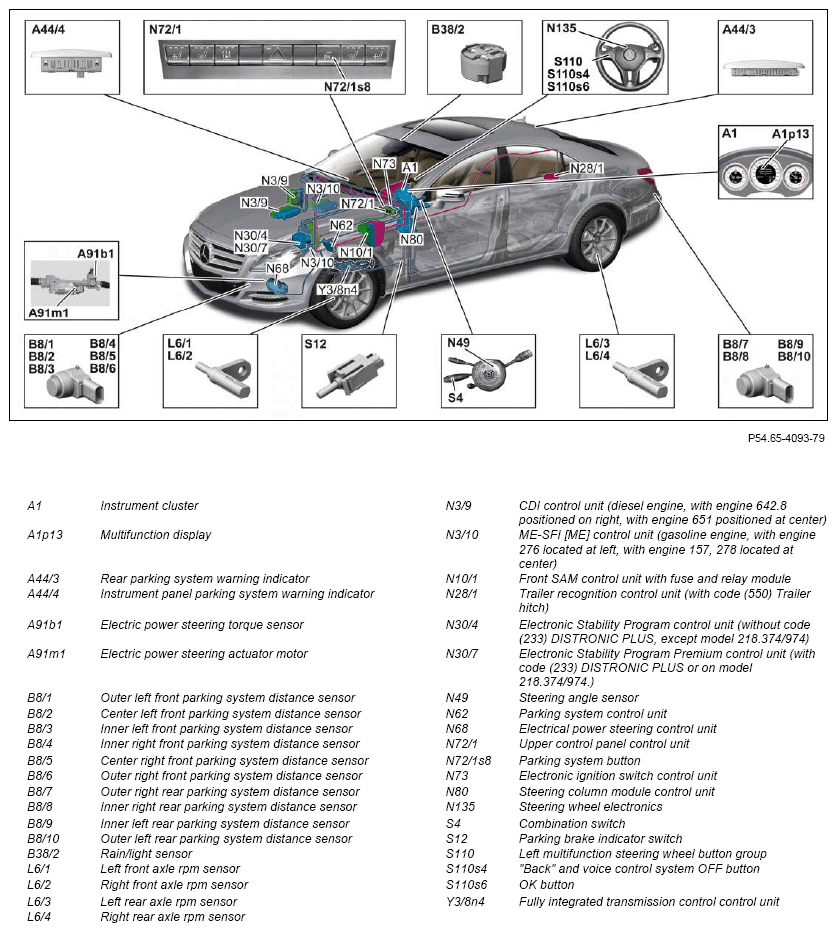

Parking system (with code (235) Active Parking Assist or code (220) PARKTRONIC), illustration shows model 218.3

  Component description for instrument cluster A1 GF54.30-P-6000FQ
  Component description for COMMAND controller unit Model 218
up to model year 2013
with code 218 (Rear view camera)
with code 512 (COMMAND APS with DVD changer)
Model 218
up to model year 2013
with code 218 (Rear view camera)
with code 526 (COMMAND with single DVD drive (without navigation))
Model 218
up to model year 2013
with code 218 (Rear view camera)
with code 527 (COMMAND APS with single DVD drive (with navigation))
Model 218
up to model year 2013
with code 218 (Rear view camera)
with code 528 (COMMAND with DVD changer)
Model 218
up to model year 2013
with code 220 (PARKTRONIC)
with code 512 (COMMAND APS with DVD changer)
Model 218
up to model year 2013
with code 220 (PARKTRONIC)
with code 526 (COMMAND with single DVD drive (without navigation))
Model 218
up to model year 2013
with code 220 (PARKTRONIC)
with code 527 (COMMAND APS with single DVD drive (with navigation))
Model 218
up to model year 2013
with code 220 (PARKTRONIC)
with code 528 (COMMAND with DVD changer)
Model 218
up to model year 2013
with code 235 (Active Parking Assist with PARKTRONIC)
with code 512 (COMMAND APS with DVD changer)
Model 218
up to model year 2013
with code 235 (Active Parking Assist with PARKTRONIC)
with code 526 (COMMAND with single DVD drive (without navigation))
Model 218
up to model year 2013
with code 235 (Active Parking Assist with
PARKTRONIC)
with code 527 (COMMAND APS with single DVD drive (with navigation))
Model 218
up to model year 2013
with code 235 (Active Parking Assist with PARKTRONIC)
with code 528 (COMMAND with DVD changer)
A40/3		 GF82.85-P-3136FQ
Model 218
as of model year 2013 up to model year 2015
with code 218 (Rear view camera)
with code 512 (COMMAND APS with DVD changer)
Model 218
as of model year 2013 up to model year 2015
with code 218 (Rear view camera)
with code 527 (COMMAND APS with single DVD drive (with navigation))
Model 218
as of model year 2013 up to model year 2015
with code 218 (Rear view camera)
with code 528 (COMMAND with DVD changer)
Model 218
as of model year 2013 up to model year 2015
with code 220 (PARKTRONIC)
with code 512 (COMMAND APS with DVD hanger)
Model 218
as of model year 2013 up to model year 2015
with code 220 (PARKTRONIC)
with code 527 (COMMAND APS with single DVD drive (with navigation))
Model 218
as of model year 2013 up to model year 2015
with code 220 (PARKTRONIC)
with code 528 (COMMAND with DVD changer)
Model 218
as of model year 2013 up to model year 2015
with code 235 (Active Parking Assist with PARKTRONIC)
with code 512 (COMMAND APS with DVD changer)
Model 218
as of model year 2013 up to model year 2015 with code 235 (Active Parking Assist with PARKTRONIC)
with code 527 (COMMAND APS with single DVD drive (with navigation))
Model 218
as of model year 2013 up to model year 2015
with code 235 (Active Parking Assist with PARKTRONIC)
with code 528 (COMMAND with DVD changer)
A40/3		 GF82.85-P-3136FQB
  Component description for Audio/COMMAND display Model 218
up to model year 2015
with code 218 (Rear view camera)
except code 867 (SPLITVIEW)
Model 218
up to model year 2015
with code 220 (PARKTRONIC)
except code 867 (SPLITVIEW)
Model 218
up to model year 2015
with code 235 (Active Parking Assist with PARKTRONIC)
except code 867 (SPLITVIEW)
A40/8		 GF54.30-P-6150FQ
Model 218
up to model year 2015
with code 218 (Rear view camera)
with code 867 (SPLITVIEW)
Model 218
up to model year 2015
with code 220 (PARKTRONIC)
with code 867 (SPLITVIEW)
Model 218
up to model year 2015
with code 235 (Active Parking Assist with PARKTRONIC)
with code 867 (SPLITVIEW)
A40/8		 GF54.30-P-6150FQA
  Component description for Audio/COMMAND control panel A40/9 GF54.21-P-4501FQ
  Reversing camera component description Model 218.9
up to model year 2015
with code 218 (Rear view camera)
B84/3		 GF54.65-P-5040FQA
  Component description for CDI control unit Model 218 with engine 642.8
up to model year 2015
with code 218 (Rear view camera)
Model 218 with engine 642.8
up to model year 2015
with code 220 (PARKTRONIC)
Model 218 with engine 642.8
up to model year 2015
with code 235 (Active Parking Assist with PARKTRONIC)
N3/9		 GF07.16-P-6000OG
Model 218 with engine 651.9
up to model year 2015
with code 218 (Rear view camera)
Model 218 with engine 651.9
up to model year 2015
with code 220 (PARKTRONIC)
Model 218 with engine 651.9
up to model year 2015
with code 235 (Active Parking Assist with PARKTRONIC)
N3/9		 GF07.16-P-6000OM
  Component description for ME-SFI (ME) control unit Model 218 with engine 276.9
up to model year 2015
with code 218 (Rear view camera)
Model 218 with engine 276.9
up to model year 2015
with code 220 (PARKTRONIC)
Model 218 with engine 276.9
up to model year 2015
with code 235 (Active Parking Assist with PARKTRONIC)
N3/10		 GF07.61-P-6000MM
Model 218 with engine 157.9
up to model year 2015
with code 218 (Rear view camera)
Model 218 with engine 157.9
up to model year 2015
with code 220 (PARKTRONIC)
Model 218 with engine 157.9
up to model year 2015
with code 235 (Active Parking Assist with PARKTRONIC)
Model 218 with engine 278.9
up to model year 2015
with code 218 (Rear view camera)
Model 218 with engine 278.9
up to model year 2015
with code 220 (PARKTRONIC)
Model 218 with engine 278.9
up to model year 2015
with code 235 (Active Parking Assist with PARKTRONIC)
N3/10		 GF07.61-P-6000MMA
  Component description for front SAM control unit with fuse and relay module N10/1 GF54.21-P-6070FQ
  Component description for rear SAM control unit with fuse and relay module N10/2 GF54.21-P-6030FQ
  Component description for trailer recognition control unit Model 218.9
up to model year 2015
with code 218 (Rear view camera)
with code 550 (Trailer coupling)
N28/1		 GF31.19-P-4050FQ
  Component description for Electronic Stability Program control unit Model 218
up to model year 2014
with code 218 (Rear view camera)
Model 218
up to model year 2014
with code 220 (PARKTRONIC)
Model 218
up to model year 2014
with code 235 (Active Parking Assist with PARKTRONIC)
N30/4, N30/7		 GF42.45-P-5119FQ
Model 218
as of model year 2014 up to model year 2015
with code 218 (Rear view camera)
Model 218
as of model year 2014 up to model year 2015
with code 220 (PARKTRONIC)
Model 218
as of model year 2014 up to model year 2015
with code 235 (Active Parking Assist with PARKTRONIC)
N30/4, N30/7		 GF42.45-P-5119FQA
  Parking system control unit component description Model 218
up to model year 2015
with code 220 (PARKTRONIC)
Model 218
up to model year 2015
with code 235 (Active Parking Assist with PARKTRONIC)
N62		 GF54.65-P-5002FQ
  Component description for reversing camera control unit Model 218.3
up to model year 2015
with code 218 (Rear view camera)
with code 498 (Japanese version)
N66/2		 GF54.65-P-5030FQJ
  Electrical power steering control unit (ES), component description Model 218
up to model year 2014
with code 218 (Rear view camera)
Model 218
up to model year 2014
with code 220 (PARKTRONIC)
Model 218
up to model year 2014
with code 235 (Active Parking Assist with PARKTRONIC)
N68		 GF46.35-P-7010FQ
Model 218
as of model year 2014 up to model year 2015
with code 218 (Rear view camera)
Model 218
as of model year 2014 up to model year 2015
with code 220 (PARKTRONIC)
Model 218
as of model year 2014 up to model year 2015
with code 235 (Active Parking Assist with PARKTRONIC)
N68		 GF46.35-P-7010FQA
  Upper control panel control unit, component description N72/1 GF54.21-P-6040FQ
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001FQ
  Component description for steering column tube module control unit N80 GF54.21-P-6051FQ
  Component description for fully integrated transmission control unit Model 218 with transmission 722.9 (except 722.931)
up to model year 2015
with code 218 (Rear view camera)
Model 218 with transmission 722.9 (except 722.931)
up to model year 2015
with code 220 (PARKTRONIC)
Model 218 with transmission 722.9 (except 722.931)
up to model year 2015
with code 235 (Active Parking Assist with PARKTRONIC)
Y3/8n4		 GF27.60-P-5165AHQ
Model 218 with transmission 722.931
up to model year 2015
with code 218 (Rear view camera)
Model 218 with transmission 722.931
up to model year 2015
with code 220 (PARKTRONIC)
Model 218 with transmission 722.931
up to model year 2015
with code 235 (Active Parking Assist with PARKTRONIC)
Y3/8n4		 GF27.60-P-5165AHR
  Table of contents for function description of parking assistance systems   GF54.00-P-0997FQ
