Retrofit Reversing Camera - AN54.65-P-0030EL

MODEL 218.3## (except 218.374) 1# up to 6/30/14

up to year 2013

with CODE 512 (COMAND APS with DVD changer)

except CODE 460 (Canada version)

except CODE 494 (US version)

except CODE 498 (Japanese version)

except CODE 804 (Model year 2014)

with CODE 527 (COMAND APS with single DVD drive (with navigation))

except CODE 460 (Canada version)

except CODE 494 (US version)

except CODE 498 (Japanese version)

except CODE 804 (year 2014)

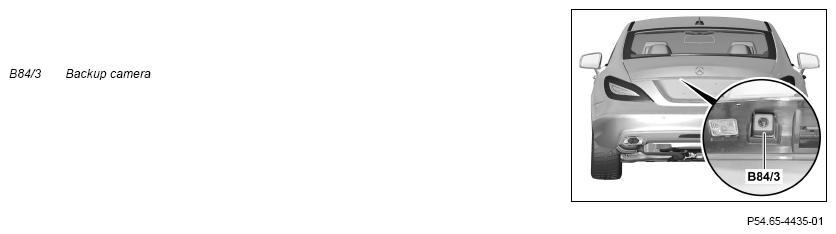

Fig 1: Reversing Camera Components Location - MODEL 218.3## up to year 2013 CODE 460, 494, 498, 527, 804

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove center console		AR68.20-P-2000EL
2	Remove COMAND controller unit		AR82.60-P-7502EW
3	Remove left rear door sill molding
4.1	Remove left side bolster of rear backrest	Model 218.3 with code 287 (Folding rear seat backrests)	AR91.12-P-1710CW
4.2	Remove backrest in rear	Model 218.3 except code 287 (Folding rear seat backrests)	AR91.12-P-1620CW

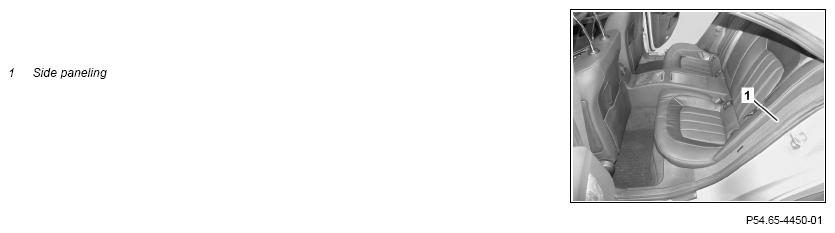

5	Remove left side paneling (1) in rear
6	Remove right and left side paneling in luggage compartment		AR68.30-P-4600EL
7	Remove handle strip from trunk lid	Remove trunk lid cover completely. Removed trunk lid handle strip is no longer required.	AR88.50-P-5062EL
8	Remove left trunk lid hinge cover
	Install
9	Prepare wiring harness for retrofitting reversing camera (B84/3)		AN54.65-P-0030-07EL
10	Retrofit power supply module		AN54.65-P-0030-06EL
11	Retrofit wiring harness for reversing camera (B84/3)		AN54.65-P-0030-03EL
		Left rear wheel arch ground point	*BA00.19-P-1006-01D
		Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2
12	Install remaining parts
	Update Vehicle Documentation (VeDoc)
13	Enter special equipment in on-line vehicle data card	LTI Code 218 (Reversing camera)
14	Attach "Reversing camera retrofitted as per AN54.65-P-0030EL " under field organization text for design group 54 and design group 88
15	Connect diagnostic system and select vehicle using vehicle identification number (VIN)		AD00.00-P-2000-04A
16	Carry out variant coding using software calibration number (SCN)	Central gateway (CGW) Front SAM control unit with fuse and relay module COMAND control unit
17	Disconnect diagnostic system		AD00.00-P-2000-04A
	Check
18	Perform function test	HI See Owner's Manual.

GROUND POINTS

Number	Designation			Model 218
BA00.19-P-1006-01D	Left rear wheel arch ground point	W6	Nm	10

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 99	Reversing camera, scope of supply	1
