Retrofit The Backup Camera Wiring Harness - AN54.65-P-0030-03EL
MODEL 218.3## (except 218.374) 1# up to 6/30/14
up to year 2013
with CODE 512 (COMAND APS with DVD changer)
except CODE 460 (Canada version)
except CODE 494 (US version)
except CODE 498 (Japanese version)
with CODE 527 (COMAND APS with single DVD drive (with navigation))
except CODE 460 (Canada version)
except CODE 494 (US version)
except CODE 498 (Japanese version)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A |
| Number | Designation | Model 218 | ||
|---|---|---|---|---|
| BA00.19-P-1006-01D | Left rear wheel arch ground point | W6 | Nm | 10 |

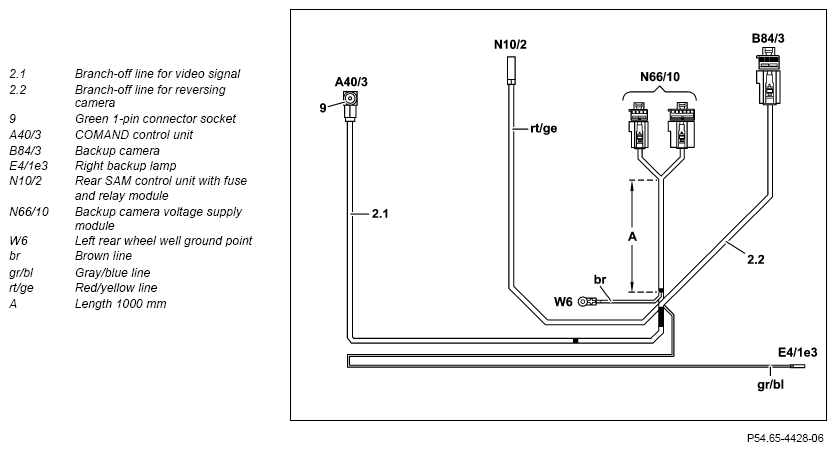

Connection scheme

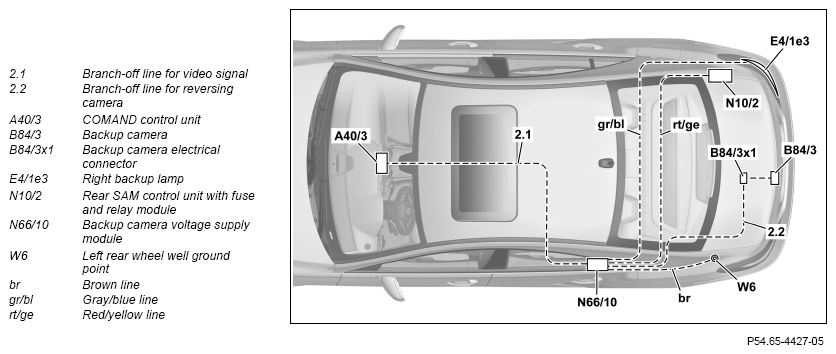

Routing diagram
- Clip reversing camera (B84/3), as shown, into cutout provided in trunk lid (4) and detach protective foil.
Route the electrical line into the interior of the trunk lid (4).
- Connect black 4-pin connector socket and white 6-pin connector socket to reversing camera power supply module (N66/10).
- Retrofit cable duct (6).
If the cable duct (6) is not installed.

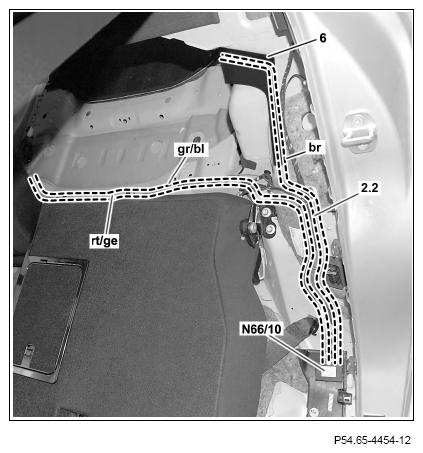

- Route branch-off line for reversing camera (2.2) and brown line (BN) through cable duct (6) to left side of trunk.
- Route gray/blue line (GY/BU) and red/yellow line (RD/YE) along existing wiring harnesses of reversing camera power supply module (N66/10) to rear SAM control unit with fuse and relay module and fix in place using cable ties.

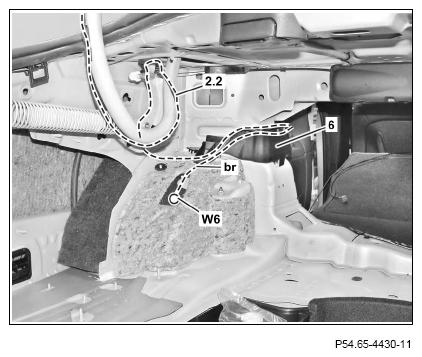

- Route branch-off line for reversing camera (2.2) from cable duct (6) along trunk lid hinge and clip retaining clips attached to branch-off line for reversing camera (2.2) into corresponding holes.
- Connect brown line (BN) to ground point on left rear wheel arch (W6)
- Route branch-off line for reversing camera (2.2) to trunk lid.
- Connect reversing camera electrical connector (B84/3x1).
- Fix the electrical connector for the reversing camera (B84/3x1) in place on the trunk lid.

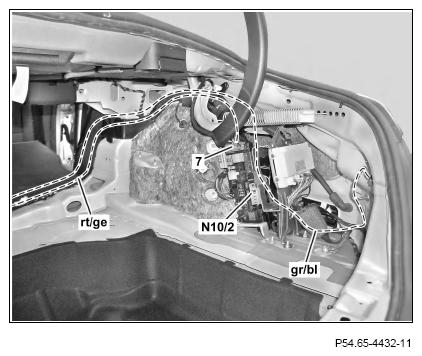

- Route red/yellow line (RD/YE) and gray/blue line (GR/BL), as shown, along existing wiring harnesses on right side of luggage compartment and fix in place using cable ties.

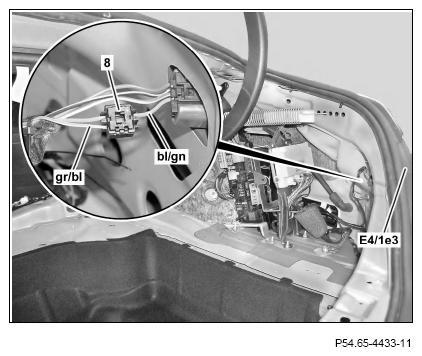

- Connect gray/blue line (GY/BU) of reversing camera wiring harness with blue/green line (BU/GN) of right reversing light (E4/1e3) using a potential distributor (8).
Basic wiring harness repair kit or the
- Wrap felt tape round potential distributor (8).
- Install green fuse holder of reversing camera wiring harness with connected red/yellow line (RD/YE) on rear SAM control unit with fuse and relay module (N10/2).
If the green fuse holder (7) is not yet fitted on the rear SAM control unit with fuse and relay module (N10/2).
- Remove green fuse holder (7) from rear SAM control unit with fuse and relay module (N10/2).
If a green fuse holder (7) is installed on the rear SAM control unit with fuse and relay module (N10/2).
- Remove the red/yellow line (RD/YE) with the
If a green fuse holder (7) was installed on the rear SAM control unit with fuse and relay module (N10/2).
- Install red/yellow line (RD/YE) into contact cavity 4 of green fuse holder (7).
If a green fuse holder (7) was installed on the rear SAM control unit with fuse and relay module (N10/2).
- Install green fuse holder (7) onto rear SAM control unit with fuse and relay module (N10/2).
If a green fuse holder (7) was installed on the rear SAM control unit with fuse and relay module (N10/2).

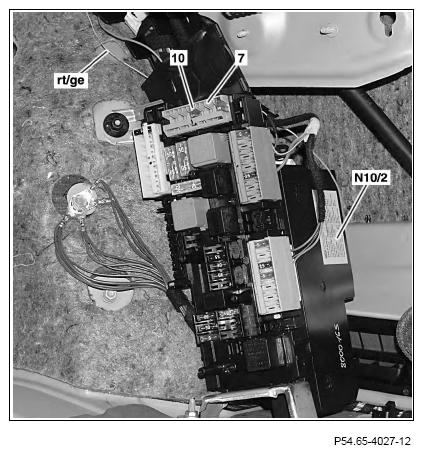

- Insert 5 amp fuse (10) into slot 4 of green fuse holder (7).

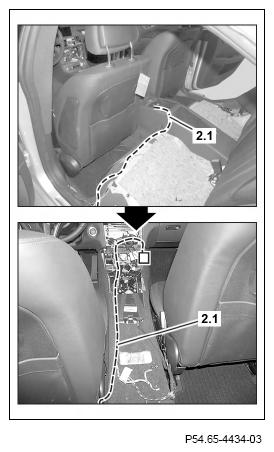

- Route branch-off line for video signal (2.1) from reversing camera power supply module, as shown, under floor covering in rear passenger compartment and to transmission tunnel and fix in place using felt tape.
- Route branch-off line for video signal (2.1) on transmission tunnel along existing wiring harness to slot for COMAND controller unit and fix in place using cable ties.
- Route excess length of branch-off line for video signal (2.1) in loops on transmission tunnel and fix in place using cable ties.
- Model 218.3## 1# except code 518 (Media Interface) except code 610 (Night View Assist)

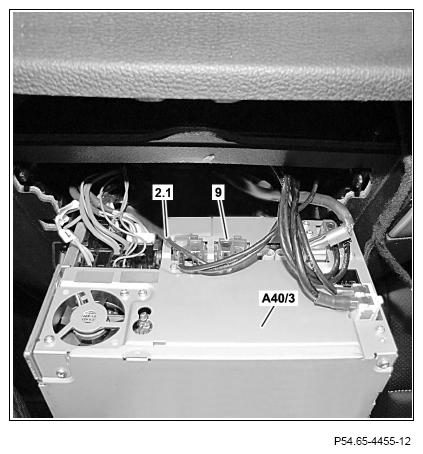

Connect green 1-pin connector socket (9) of branch-off line for video signal (2.1) to green slot of COMAND controller unit (A40/3).
- Model 218.3## 1# with code 518 (Media Interface) with code 610 (Night View Assist)
Remove green 2-pin connector socket (9) of branch-off line for video signal (2.1).
- Model 218.3## 1# with code 518 (Media Interface) with code 610 (Night View Assist)
Remove Media Interface line with the
- Model 218.3## 1# with code 518 (Media Interface) with code 610 (Night View Assist)
Insert the branch-off line for the video signal (2.1) into contact cavity "1" of the green 2-pin connector socket.
- Model 218.3## 1# with code 518 (Media Interface) with code 610 (Night View Assist)
Connect green 2-pin connector socket (9) of branch-off line for video signal (2.1) to green slot of COMAND controller unit (A40/3).
