Remove/Install Backup Camera - AR54.65-P-0030EW
MODEL 204.0/2/3, 207, 212, 218
with CODE 218 (Rear view camera)
MODEL 207, 212
with CODE 501 (360° camera)

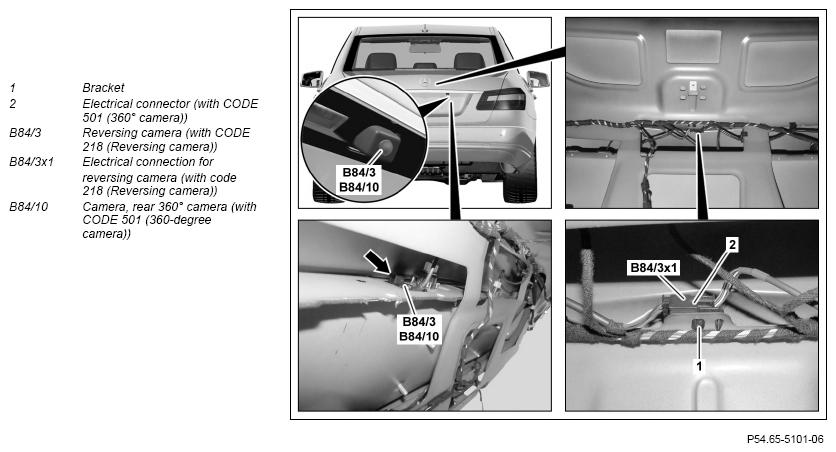

Shown on MODEL 212.0 with CODE 218 (Reversing camera)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove handle strip from trunk lid | Model 204.0/3, model 207, 212.0/1, 218.3 MODEL 204.0/3 |
AR88.50-P-5062CW |
| Model 207.3/4, 212.0/1 | AR88.50-P-5062EW | ||
| MODEL 218.3 | AR88.50-P-5062EL | ||
| 1.2 | Remove handle strip for liftgate | Model 204.2 | AR72.20-P-3650CX |
| 1.3 | Pull out handle strip for liftgate using extraction hook and remove. | MODEL 212.2, 218.9 |
Figure |
| 2 | Remove liftgate paneling | MODEL 212.2, 218.9 Model 212.2 |
AR72.20-P-3520ES |
| 3 | Disconnect electrical connection for reversing camera (B84/3x1) or electrical connection (2) | ||
| 4 | Release catch hook on coupling of backup camera electrical connector (B84/3x1) and slide coupling of backup camera connector (B84/3x1) from bracket (1) | Model 204.0/2/3, 207.3/4, 212.0/1, 218 with code 218 (Reversing camera) | |
| 5 | Unlock catches (arrow) and remove reversing camera (B84/3) or rear 360° camera (B84/10) from outside | If seal is damaged ↓ Replace seal |
|
| 6 | Install in the reverse order | ||
| 7 | Perform initial startup of reversing camera (B84/3) or rear 360° camera (B84/10) | If reversing camera (B84/3) or rear 360° camera (B84/10) was replaced. | |
| 8 | Calibrate reversing camera (B84/3) or rear 360° camera (B84/10) using the diagnostic system | Model 207, 212 up to model year 2014 with code 218 (Rear view camera) with code 498 (Japanese version) Model 207, 212 with code 501 (360° camera) Model 218.3 up to model year 2013 with code 218 (Rear view camera) with code 498 (Japanese version) |
|
| Model 207, 212 up to model year 2014 with code 218 (Rear view camera) with code 498 (Japanese version) Model 218.3 up to model year 2013 with code 218 (Rear view camera) with code 498 (Japanese version) |
AR54.65-P-0022GZ | ||
| 9 | Calibrate reversing camera (B84/3) using the diagnostic system and calibration device | Model 218.9 with code 218 (Rear view camera) | |
| AD00.00-P-2000-04A | |||
| Fig 2 |
