Calibration Of The Backup Camera - AR54.65-P-0022GZ
MODEL 164
with CODE 218 (Rear view camera)
with CODE 498 (Japanese version)
without CODE 849 (Spare wheel carrier)
MODEL 207, 212
up to year 2014
with CODE 218 (Rear view camera)
with CODE 498 (Japanese version)
MODEL 216.3, 221.0
with CODE 218 (Rear view camera)
with CODE 498 (Japanese version)
MODEL 218.3
up to year 2013
with CODE 218 (Rear view camera)
with CODE 498 (Japanese version)
MODEL 221.1
with CODE 218 (Rear view camera)
with CODE 498 (Japanese version)
MODEL 251
with CODE 218 (Rear view camera)
with CODE 498 (Japanese version)
Shown on MODEL 251
| Notes on calibration of reversing camera | AH54.65-P-0022-01SX | ||
| Calibrate backup camera | |||
| 1 | Drive the vehicle onto a level surface and place the front wheels in the straight-ahead position | ||
| 2 | Close trunk lid or liftgate | ||
| 3 | Close front passenger door. | ||
| 4 | Move front passenger mirror into drive mode. | Model 164 with CODE 218 (Rear view camera) with CODE 498 (Japanese version) without CODE 849 (Spare wheel carrier) Model 251 with CODE 218 (Rear view camera) with CODE 498 (Japanese version) When calibrating the front passenger outside mirror reversing camera. |
|

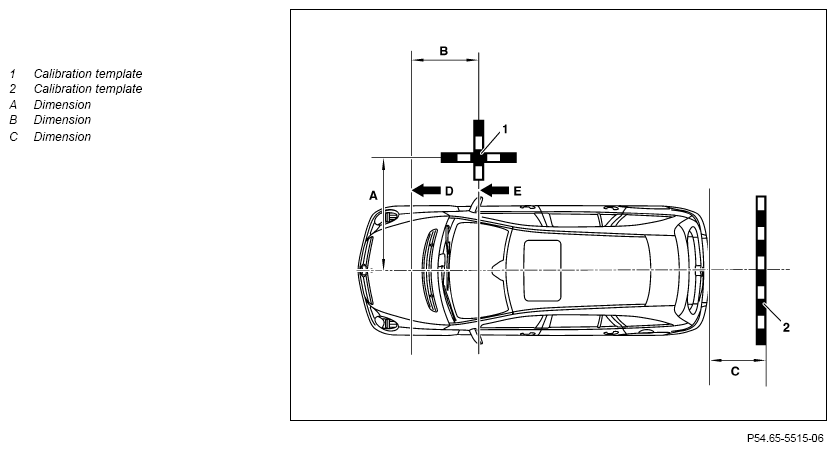

| 5 | Align calibration template (1) according to dimensions (A and B) parallel to the front axle (arrow D) and the vehicle's longitudinal axis, and in the center to the front passenger outside mirror (arrow E) on the floor | Model 164 with CODE 218 (Rear view camera) with CODE 498 (Japanese version) without CODE 849 (Spare wheel carrier) Model 251 with CODE 218 (Rear view camera) with CODE 498 (Japanese version) When calibrating the front passenger outside mirror reversing camera. |
|
| Template for calibration of reversing camera | Dimension (b): 1000 mm |
WF58.50-P-5465-01EL | |
| 6 | Align calibration template (2) according to dimension (C) parallel to the vehicle lateral axis and central to the vehicle on the floor | When calibrating the reversing camera in the trunk lid or the liftgate. | |
| Template for calibration of reversing camera | WF58.50-P-5465-01EL | ||
| 7 | Place ignition on position "2" | ||
| 8 | Calibrate front passenger outside mirror reversing camera or the reversing camera in the trunk lid or in the liftgate with diagnostic system | ||
| AD00.00-P-2000-04A |
