Deactivate Transport Mode Prior To Vehicle Delivery - AR54.00-P-0001A
MODEL 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242, 253, 292, 293
MODEL 166.0, 172, 197, 204, 207.3/4, 212, 218.3, 246
as of year 2013

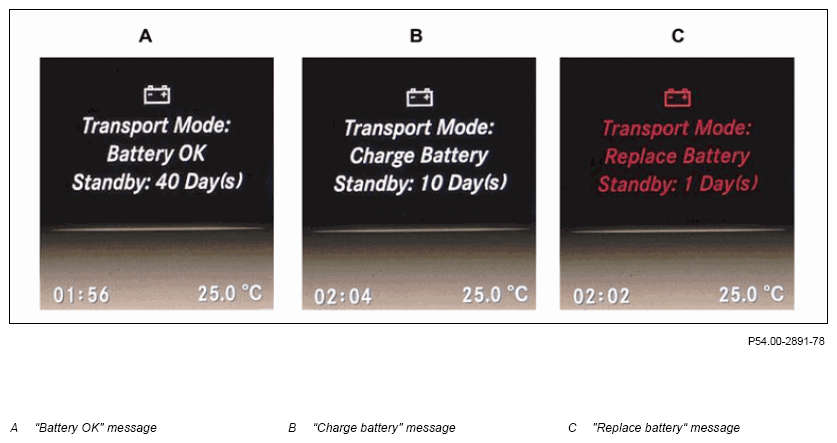

The different system states in the instrument cluster with active transport mode, shown on model 205
| Check | |||
| 1 | Switch on ignition (circuit 15) and check whether "Transport mode" message is shown. | Ensure that "Battery OK" message (A) is shown before deactivation. If the transport mode is no longer active. ↓ Activate transport mode again in rear SAM control unit (N10/8) using vehicle diagnosis system in the "Actuation" menu item. Model 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242, 253, 292 Model 166.0, 172, 197, 204, 207.3/4, 212, 218.3, 246 as of model year 2013 |
|
| Model 117, 156, 166.8, 176, 218.9, 231, 242, 292 | AD00.00-P-2000-04A | ||
| Model 166.0, 172, 197, 204, 207.3/4, 212, 218.3, 246 as of model year 2013 | |||
| Model 190, 205, 217, 222, 253 Activate transport mode in front central controller unit (N10/6) again using diagnostic system under "Actuation" menu item. |
AD00.00-P-2000-04B | ||
| Model 293 | AD00.00-P-2000-06FR | ||
| 2 | Charge battery. If "Charge battery" message (B) is shown. |
Model 190 | AR54.10-P-1130RG |
| Model 197, 204, 207.3/4, 212, 218.3 as of model year 2013 | AR54.10-P-1130CW | ||
| Model 218.9 | |||
| Model 166.0 as of model year 2013 | AR54.10-P-1130GZ | ||
| Model 166.8, 292 | |||
| Model 117, 156, 176, 242 | AR54.10-P-1130NKB | ||
| Model 246 as of model year 2013 | |||
| Model 172 as of model year 2013 | AR54.10-P-1130V | ||
| Model 205, 253, 293 | AR54.10-P-1130LW | ||
| Model 217, 222 | AR54.10-P-1130LF | ||
| Model 231 | AR54.10-P-1130RK | ||
| 3 | Replace battery. | If "Replace battery" message (C) is shown. | |
| Model 293 | AR54.10-P-0005EQ | ||
| Model 190 | AR54.10-P-0005RG | ||
| Model 217.3 | AR54.10-P-0005LC | ||
| Model 217.4 | AR54.10-P-0005LCA | ||
| Model 197 as of model year 2013 | AR54.10-P-0005RQ | ||
| Model 172 as of model year 2013 | AR54.10-P-0005W | ||
| Model 117, 156, 176, 242 | AR54.10-P-0005NKB | ||
| Model 246 as of model year 2013 | |||
| Model 166.0 as of model year 2013 | AR54.10-P-0005GZ | ||
| Model 166.8, 292 | |||
| Model 204 as of model year 2013 | AR54.10-P-0005CW | ||
| Model 205 (except 205.012/047/147/212/247) Model 253 | AR54.10-P-0005LW | ||
| Model 205.047/147/247 | AR54.10-P-0005LWA | ||
| Model 205.012/212 | AR54.10-P-0005LWH | ||
| Model 207.3/4, 212, 218.3 as of model year 2013 | AR54.10-P-0005EW | ||
| Model 218.9 | |||
| Model 222.020/021/032/033/034/035/064/066/067/082/085 | AR54.10-P-0005LF | ||
| Model 222.083/086/183/186/983/986 except code 810 (Sound system) | |||
| Model 222.120/121/123/132/133/134/135/150/155 | |||
| Model 222.162/163/164/165/166/167/182/184/185 | |||
| Model 222.173 with code ME05 (Hybrid drive 85kW/90kW VARIANT (incl. Plug-in)) | |||
| Model 222.176 with code Z07 (Top protection) | |||
| Model 222.964/967/976/980/982/984/985 | |||
| Model 222.004/057/077/104/157/177/178/179/187/188 | AR54.10-P-0005LFA | ||
| Model 222.058/059/060/158/159/160 | |||
| Model 222.083/086/183/186/983/986 with code 810 (Sound system) | |||
| Model 222.176 except code Z07 (Top protection) | |||
| Model 231 | AR54.10-P-0005RK | ||
| 4 |
Document displayed residual service life. | Model 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242, 253, 292, 293 Model 166.0, 172, 197.3/4, 204, 207.3/4, 212, 218.3, 246 as of model year 2013 |
AP00.20-P-1100B |
| Deactivation | |||
| 5 | Deactivate transport mode using button combination. | AR54.00-P-0001-01A | |
| 6 |
Document deactivation of transport mode. | Model 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242, 253, 292, 293 Model 166.0, 172, 197.3/4, 204, 207.3/4, 212, 218.3, 246 as of model year 2013 |
AP00.20-P-1100B |
