Remove/install panoramic sunroof drive guide rail - AR77.21-P-0430NKA

MODEL 117, 156, 176 with CODE 413 (Automatic panoramic sliding sunroof)

MODEL 205.0/1/2 with CODE 413 (Automatic panoramic sliding sunroof)

MODEL 222 with CODE 413 (Automatic panoramic sliding sunroof)

MODEL 253 with CODE 413 (Automatic panoramic sliding sunroof)

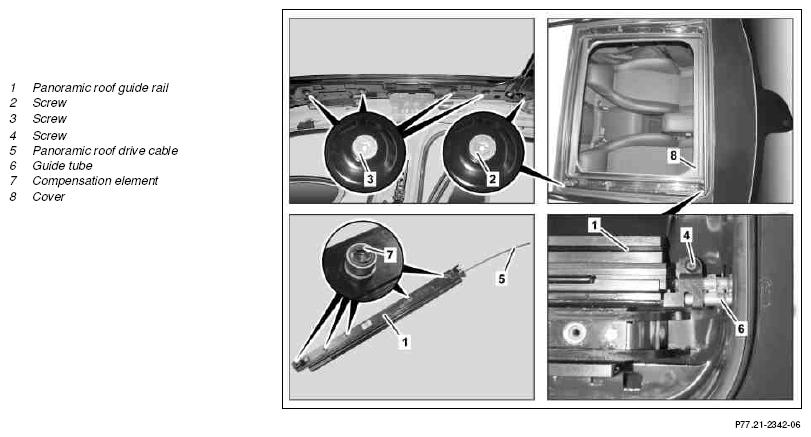

Shown on right guide rail on panoramic roof (1), model 176

Fig 1: Guide Rail Remove/Install Components - Shown On Model 176

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove panoramic sliding roof motor		AR77.21-P-6995NKA
2	Remove cover (8)	Model 205.0/1/2 with code 413 (Automatic panoramic sliding sunroof) Model 222 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof)	AR77.21-P-0100LF
		Model 117, 156, 176 with code 413 (Automatic panoramic sliding sunroof)	AR77.21-P-0100NKA
3	Remove left or panoramic roof roller sun blind drive cable		AR77.21-P-0230NKA
4	Unscrew bolts (4) on left and right panoramic roof guide rail (1)
5	Remove headliner until bolts (2, 3) on left and right panoramic guide rail (1) are accessible	Model 156 with code 413 (Automatic panoramic sliding sunroof)	AR68.30-P-4300NKX
		Model 117, 176 with code 413 (Automatic panoramic sliding sunroof)	AR68.30-P-4300NKA
		Model 205.0/1 with code 413 (Automatic panoramic sliding sunroof)	AR68.30-P-4300LW
		Model 205.2 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof)	AR68.30-P-4300LWS
		Model 222.0/1 with code 413 (Automatic panoramic sliding sunroof)	AR68.30-P-4300LF
6	Remove left and right guide tube for roller sun blind drive cable	Model 117, 156, 176 with code 413 (Automatic panoramic sliding sunroof) Model 205.0/1/2 with code 413 (Automatic panoramic sliding sunroof) Model 222 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof)
		Model 156 with code 413 (Automatic panoramic sliding sunroof) Model 205.0/1/2 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof)	AR77.21-P-0232NKX
7	Unscrew bolts (2, 3) from panoramic roof guide rail (1)	Observe installation location on bolts (3). Number of bolts (3) depends on change status of panoramic roof guide rail (1).
8	Remove panoramic roof guide rail (1) from panoramic sliding roof and pull panoramic roof drive cable (5) out of guide tube (6)
	Install
9	Manually turn back compensation elements (7)	Expansion elements (7) should be easy to move. Otherwise the panoramic roof guide rail (1) can be damaged when tightening.
10	Install panoramic roof drive cable (5) in guide tube (6) and insert panoramic roof guide rail (1) in panoramic sliding roof frame	Carefully insert panoramic roof guide rail (1). Otherwise the guide tubes (6) can be damaged.
11	Tighten bolt (2) on panoramic roof guide rail (1)
12	Tighten bolt (4) on panoramic roof guide rail (1)
13	Position bolts (3) on panoramic roof guide rail (1)	Tighten bolts (3) only after installing front panoramic roof sliding roof. Observe installation location on bolts (3). Number of bolts (3) depends on change status of panoramic roof guide rail (1).
14	Push sliding roof mechanism on left and right panoramic roof guide rail (1) completely toward front to limit stop
15	Install panoramic sliding roof motor		AR77.21-P-6995NKA
16	Connect overhead control panel control unit to vehicle wiring harness and completely adjust mechanical sliding roof components toward rear to limit stop	Leave overhead control panel control unit connected.
17	Install covering (8)	Model 117, 156, 176 with code 413 (Automatic panoramic sliding sunroof)	AR77.21-P-0100NKA
		Model 205.0/1/2 with code 413 (Automatic panoramic sliding sunroof) Model 222 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof)	AR77.21-P-0100LF
18	Install panoramic roof roller sun blind drive cable		AR77.21-P-0230NKA
		Do not install headliner.
19	Close panoramic sliding roof
20.1	Push rear edge on panoramic sliding roof at transition to rear headliner downward and tighten bolts (3) on left and right panoramic roof guide rail (1)	Model 117, 156, 176 with code 413 (Automatic panoramic sliding sunroof) Push rear edge approx. 1 mm deeper than rear headliner. After tightening, the rear edge of the closed sliding roof must be flush or max. 2 mm higher than the rear headliner.
20.2	Push rear edge on panoramic sliding roof at transition to rear headliner downward and tighten bolts (3) on left and right panoramic roof guide rail (1)	Model 205.0/1/2 with code 413 (Automatic panoramic sliding sunroof) Model 222 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) Push rear edge approx. 1 mm deeper than rear fixed glass section. After tightening, the rear edge of the closed panoramic sliding roof must be flush or max. 2 mm higher than the rear fixed glass section.
21	Install guide tube for roller sun blind drive cable	Model 156 with code 413 (Automatic panoramic sliding sunroof) Model 205.0/1/2 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof)	AR77.21-P-0232NKX
22	Adjust panoramic sliding roof		AR77.21-P-0501NKA
23	Disconnect overhead control panel control unit from vehicle wiring harness
24	Install headliner	Model 156 with code 413 (Automatic panoramic sliding sunroof)	AR68.30-P-4300NKX
		Model 117, 176 with code 413 (Automatic panoramic sliding sunroof)	AR68.30-P-4300NKA
		Model 205.0/1 with code 413 (Automatic panoramic sliding sunroof)	AR68.30-P-4300LW
		Model 205.2 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof)	AR68.30-P-4300LWS
		Model 222.0/1 with code 413 (Automatic panoramic sliding sunroof)	AR68.30-P-4300LF
