Remove/Install Pyrofuse - AR54.10-P-1180LW
Model 205.012/013/047/053/054/147/212/213/247/253
Model 253.311/353/354/911/953/954
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove cover below instrument panel at right. | AR68.10-P-1520LW | |
| 2 | Detach ground line of on-board electrical system battery. | AR54.10-P-0003LW | |
| 3 | Unscrew bolts (3). | ||

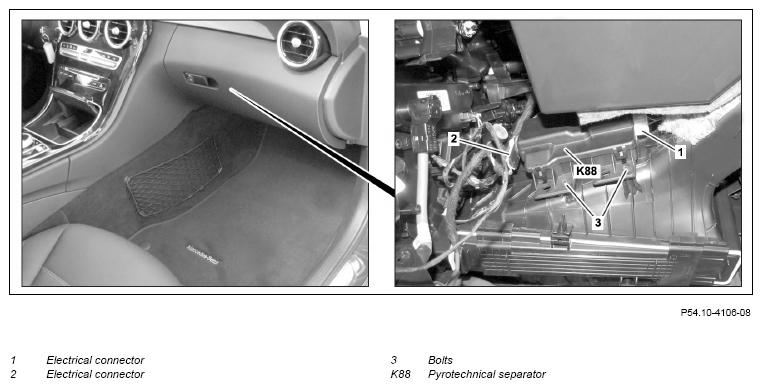

| 4 | Pull pyrofuse (K88) downward until the electrical connectors (1, 2) are accessible. | ||
| 5 | Disconnect electrical connector (1). | ||
| 6 | Disconnect electrical connection (2). | ||
| 7 | Remove pyrofuse (K88). | ||
| 8 | Install in the reverse order |
