Parking, Basic Function - GF54.65-P-1002A
Model all (CAR)
with code 235 (Active Parking Assist with PARKTRONIC)
Model all (CAR)
with code P44 (Parking package)
Model all (CAR)
with code P47 (Parking package with 360-degree camera)
Overview
This document contains the following information:
- General
- Function requirements
- Active parking guidance
- Parking
- Exiting a parking space
General
Active Parking Guidance makes it easier to enter and exit a parking space.
On vehicles with automatic transmission, the vehicle is automatically braked while being assisted in and out of a parking space.
On vehicles with manual transmission, emergency braking is applied while being assisted in and out of a parking space, if an imminent collision is detected.
Function requirements
- Engine running or drive train operational
- Vehicle speed below 10 km/h
- Vehicle was parked automatically (only exit function)
Active parking guidance
Active Parking Guidance is started by selecting a parking space detected by the system.
The system evaluates the following function-relevant parameters for this:
- Drive range (vehicles with automatic transmission)
- Electric power steering, status
- Wheel speeds and wheel rotation direction
- Steering wheel angle
- Status of anti-lock braking system (ABS) and Electronic Stability Program (ESP®)
- Trailer recognition (vehicles with trailer hitch)
Parking
If Active Parking Guidance is started, various driving instructions and messages are displayed to the driver. The driver can now take the hands off the steering wheel.
If the driver does not take his/her hands off the steering wheel (hands-on detection), the procedure is aborted.
Active Parking Guidance steers the vehicle into the parking space with targeted steering movements. On vehicles with manual transmission, the driver must press the accelerator pedal.
The vehicle can be braked and the direction of travel changed by the driver during the procedure. Active Parking Guidance then calculates a new route. The procedure can be continued after this.
The engine torque is influenced such that the vehicle does not drive faster than 10 km/h (vehicles with manual transmission) or 4 km/h (vehicles with automatic transmission). The driver can reduce speed using the brake pedal. After a maximum of 12 moves, the parking procedure is ended, but the driver can take over at any time.
Exiting a parking space
Assisted exiting of a parking space can only be started if the parking space was entered beforehand with the assistance function.

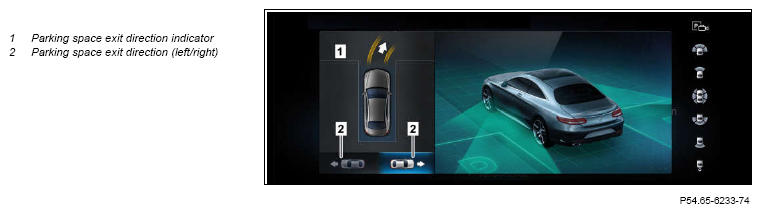

After the driver has started the engine and activated the parking system, the system then asks if an assisted unparking procedure is to be started. When exiting a parking space that is aligned at an incline or a right-angle to the direction of travel, the driver can select the direction of travel or start the procedure.
The driver can now take the hands off the steering wheel.
If the driver does not take his/her hands off the steering wheel (hands-on detection), the parking space exit procedure is aborted.
Exiting parking spaces that are aligned parallel to the direction of travel : As soon as the vehicle is at a sufficient incline to enable it to be driven in one straight move out of the parking space, the wheels are straightened up. The process has been completed. The unparking procedure is completed at the latest once the vehicle is at an angle of approx. 45° relative to the start position.
Driving forwards out of parking spaces that are aligned at an incline or at right angle to direction of travel:
When parking, the system stores the angle between the drive-by position past and the target position. When exiting a parking space the handover takes place at about 10° before reaching the drive-by direction.
Reversing out of parking spaces that are aligned at an incline or right angle to direction of travel:
When parking, the system stores the angle between the drive-by position past and the target position. When exiting a parking space the handover takes place roughly parallel to the drive-by direction.

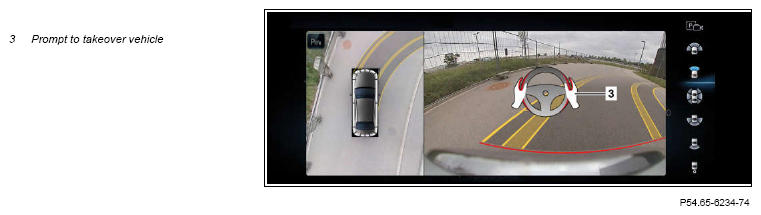

After completing the unparking procedure, the driving path shown on the multimedia display changes from green to yellow. The hands-off icon flashes and a warning tone prompts the driver to take over. The driver is then actively in charge of driving the vehicle again.
| Function schematics | |||
| Function schematic for detection of | Model 118, 167, 177, 247, 293 with code P44 | PE27.19-P-2500-97A | |
| transmission position | (Parking package) Model 118, 167, 177, 247, 293 with code P47 (Parking package with 360-degree camera) Model 118, 167, 177, 247 with code 235 (Active Parking Assist with PARKTRONIC) | ||
| Entering and exiting parking spaces, function schematic | Model 118, 167, 177, 247, 293 with code P44 (Parking package) Model 118, 167, 177, 247, 293 with code P47 (Parking package with 360-degree camera) Model 118, 167, 177, 247 with code 235 (Active Parking Assist with PARKTRONIC) | PE54.65-P-2502-97A | |
| Subsystems | |||
| Environment monitoring, basic function | GF54.65-P-1000A | ||
| Additional basic functions | |||
| Torque coordination, basic function | GF07.10-P-1060A | ||
| Steering, basic function | GF46.35-P-9900A | ||
| Control units | |||
| Head unit/instrument cluster display cluster, basic function | GF54.30-P-2005A | ||
| Instrument cluster control unit, basic function | Model all (CAR) with code 235 (Active Parking Assist with PARKTRONIC) with code 548 (Connect 20 MID (NTG6)) Model all (CAR) with code 235 (Active Parking Assist with PARKTRONIC) with code 549 (Connect 20 HIGH (NTG6)) Model all (CAR) with code 548 (Connect 20 MID (NTG6)) with code P44 (Parking package) Model all (CAR) with code 548 (Connect 20 MID (NTG6)) with code P47 (Parking package with 360-degree camera) Model all (CAR) with code 549 (Connect 20 HIGH (NTG6)) with code P44 (Parking package) Model all (CAR) with code 549 (Connect 20 HIGH (NTG6)) with code P47 (Parking package with 360-degree camera) |
GF54.30-P-9891A | |
| Parking system control unit, basic function | GF54.65-P-9890A | ||
| Head unit/instrument cluster control unit, basic function | Model all (CAR) with code 235 (Active Parking Assist with PARKTRONIC) with code 545 (Connect 5 (NTG6)) Model all (CAR) with code 545 (Connect 5 (NTG6)) with code P44 (Parking package) Model all (CAR) with code 545 (Connect 5 (NTG6)) with code P47 (Parking package with 360-degree camera) |
GF82.85-P-9893A |
