Head Unit/Instrument Cluster Displays, Basic Function - GF54.30-P-2005A
Model all (CAR)
General
The head unit/instrument cluster display cluster shows the contents of the multimedia system and of the instrument cluster in two separate, integrated displays:
- Display for the instrument cluster
- Display for the multimedia system
The size of the individual displays within the display cluster depends on the vehicle model and on the equipment installed.
The display for the multimedia system detects swipe movements with one or more fingers and tapping motions on the display. The inputs detected are transmitted as control signals to the head unit.

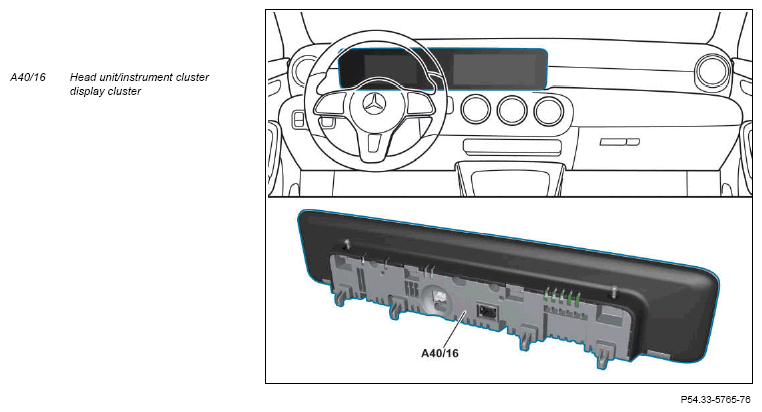

Location
The head unit/instrument cluster display cluster is located in the instrument panel on the driver's side.
Function requirement
- Circuit 30t ON
Variants
| Model series | Multimedia system display | Instrument cluster display |
|---|---|---|
| Model 118, 177, 247 | 7" display (without code 859 (Central display)) 10.25" display (with code 859 (Central display)) |
7" display (without code 458 (Fully digital Instrument Display)) 10.25" display (with code 458 (Fully digital Instrument Display)) |
| Model 167 | 12.3" display | 12.3" display |
| Model 293 | 10.25" display | 10.25" display |
