Replace Front Crankshaft Radial Sealing Ring - AR03.20-P-3000MRA
Engine 274.9 in model 205
Engine 274.9 in model 253
Shown on engine 274.9 in model 205 (except 205.047/147/247)
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove | |||
| 1 | Remove belt pulley/vibration damper (3) | AR03.30-P-1600MRA | |
| 2 | Use suitable tool to pry radial shaft sealing ring (5) out of timing case cover | Do not damage crankshaft (1) and timing case cover and use to push out a clean rag as a base. Leaks can occur otherwise. |
|
| 3 | Check contact surface of the radial shaft sealing ring (5) on hub of the belt pulley/vibration damper (3) for scoring and galling | In a case of scorch marks and galling ↓ replace belt pulley/vibration damper (3). |
|
| Install | |||
| 4 | Install new radial shaft sealing ring (5) | AR03.20-P-3000-01MR | |

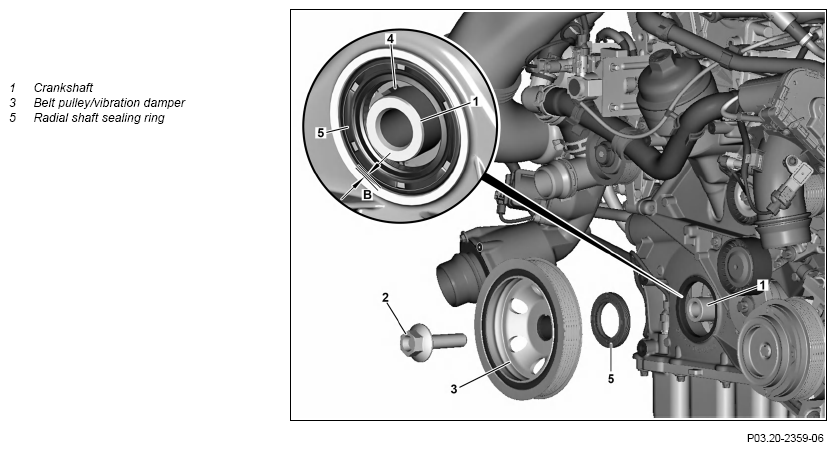

| Fig 1 | |||
| 5 | Install belt pulley/vibration damper (3) | AR03.30-P-1600MRA | |
| 6 | Check engine oil level and correct | ||
| AP18.00-P-1811MP |
