Remove/Install Connecting Flange Of Charge Air Distributor On Right Cylinder Head - AR09.41-P-0010MMV

Engine 276.8 in model 205

Engine 276.8 in model 253

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove charge air distributor		AR09.41-P-8683MMV

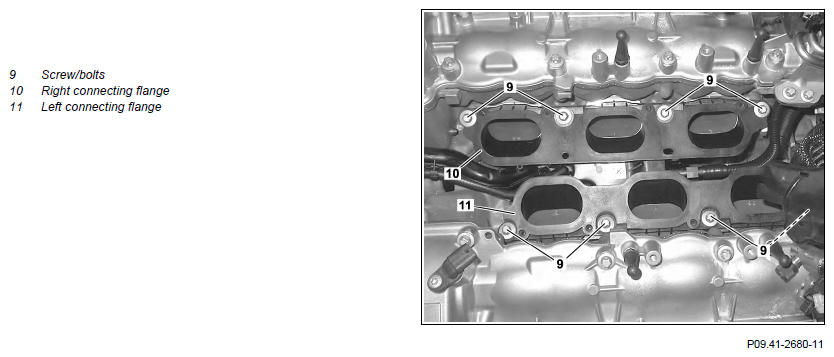

2	Remove screw/bolts (9) of right connecting flange (10) from outwards inwards
3	Remove right connecting flange (10) upwards
4	Close off intake ports of right cylinder head with rags
	Clean
5	Remove sealant residues on right connecting flange (10) and on right cylinder head	The sealing surfaces on the right connecting flange (10) and on the right cylinder head must not have any foreign objects, scratches or grooves. Non-observance leads to leakage between the right connecting flange (10) and right cylinder head. Do not use any sharp-edged tools or abrasive paper. The sealing surfaces can get damaged otherwise. Loctite 7200	*BR00.45-Z-1038-04A
	Install
6	Replace seals of right connecting flange (10) on right cylinder head
7	Remove rags from intake ports of right cylinder head
8	Position right connecting flange (10) on right cylinder head
9	Remove screw/bolts (9) of right connecting flange (10) from inside outwards	Screw/bolt, intermediate flange to cylinder head	*BA09.41-P-1004-01R
10	Install charge air distributor		AR09.41-P-8683MMV

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 276.8
BA09.41-P-1004-01R	Screw/bolt, intermediate flange to cylinder head	Nm	9

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1038-04A	Loctite 7200	Henkel AG & Co. KGaA
