Remove/Install HERMES Control Unit - AR82.95-P-0019LWR
Model 205.4
up to model year 2019
with code 360 (HERMES UMTS)
Model 205.4
up to model year 2019
with code 362 (HERMES communications module LTE)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission HERMES control unit (N112/9). | When replacing the HERMES control unit (N112/9). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove trim in trunk on right side. | AR68.30-P-4800LWR | |

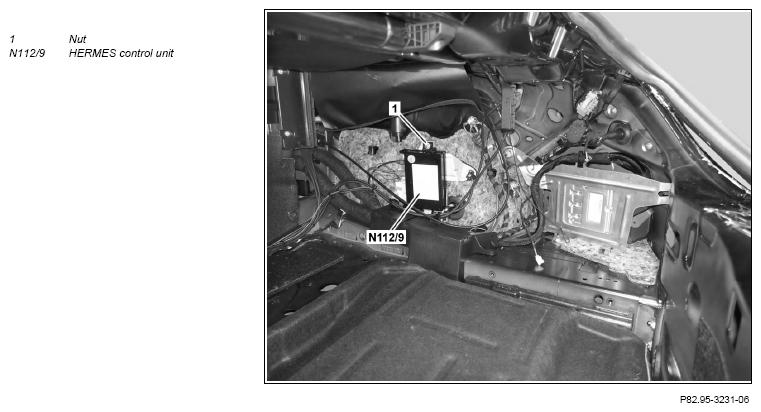

| 4 | Unscrew nut (1). | ||
| 5 | Remove HERMES control unit (N112/9) and disconnect its electrical connectors. | ||
| 6 | Install in the reverse order. |
