Retrofit CA Module Card Reader - AZ82.60-P-0032LWR

Model 205.4

with code 197 (DVB-T2 conversion with ext. card reader/HD-TV Korea)

with code 865 (digital TV)

except code 835 (South Korea version)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove rear center assembly paneling
			AR68.30-P-4785LW
2	Remove trunk recess cover
	Install

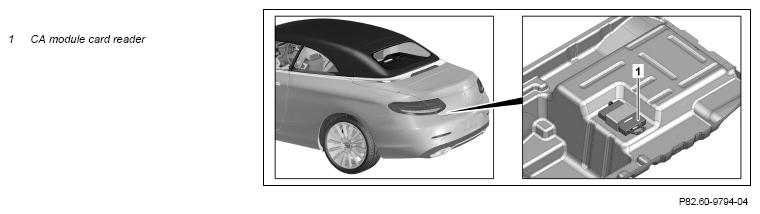

3	Install electrical wiring harness for CA module card reader (1)		AZ82.60-P-0032-01LWR
4	Retrofit bracket for CA module card reader (1)		AZ82.60-P-0032-02LWR
5	Position trunk recess trim in trunk, while guiding electrical wiring harness for CA module card reader (1) through previously drilled hole
6	Install luggage compartment well cover
7	Connect electrical wiring harness to CA module card reader (1) for TV tuner
8	Fasten CA module card reader (1) on bracket
9	Install rear center section paneling
			AR68.30-P-4785LW
	Update Vehicle Documentation (VeDoc)
10	Enter special equipment in on-line vehicle data card	Code 381 (CI+BOX card reader for DVB-T2 standard)
11	Attach note "CA module card reader retrofitted as per AZ82.60-P-0032LWR" under field organization texts to design group 82
12	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04B
13	Carry out variant coding using software calibration number (SCN)	TV tuner
		CA module card reader (1) can only be operated in temperature range from 0 to 50°C. Outside of this temperature range, the CA module card reader (1) shuts off automatically.
14	Disconnect diagnostic system
			AD00.00-P-2000-04B
	Check
15	Perform function test
