Retrofit Electrical Wiring Harness For CA Module Card Reader - AZ82.60-P-0032-01LWR
Model 205.4
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A |

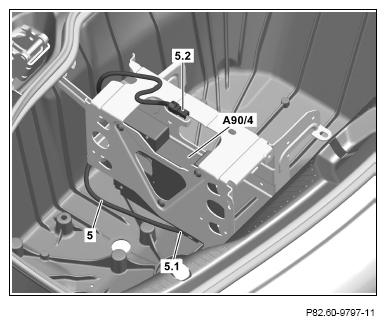

- Connect blue 1 - pin connector (5.1) at tuner unit (A90/4).
- Route wiring harness (5) along existing lines to CA module card reader installation location.
Note extended length of wiring harness (5) for connection at CA module card reader. Blue 1-pin connector (5.2) is connected to CA module card reader at a later point in time.
