Retrofit CA Module Card Reader - AZ82.60-P-0032LWH

Model 205.047

with code 197 (DVB-T2 conversion with ext. card reader/HD-TV Korea)

with code 865 (digital TV)

except code 835 (South Korea version)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove
1	Remove paneling in trunk on right and trunk recess paneling
			AR68.30-P-4600LW
	Install

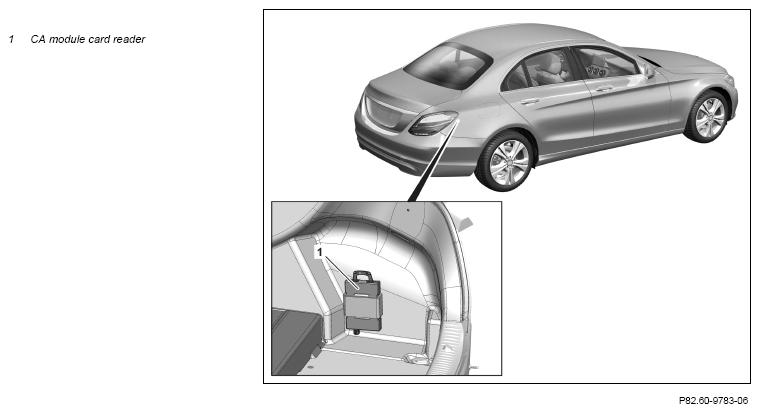

2	Retrofit electrical wiring harness for CA module card reader (1)		AZ82.60-P-0032-01LWI
3	Retrofit bracket for CA module card reader (1)		AZ82.60-P-0032-02LWI
4	Position trunk paneling on right of trunk, guiding the electrical wiring harness for the CA module card reader (1) through the previously drilled hole
5	Connect electrical wiring harness to CA module card reader (1) for TV tuner
6	Secure CA module card reader (1) to bracket for CA module card reader (1)
7	Insert paneling in trunk on right and trunk recess paneling
			AR68.30-P-4600LW
	Update Vehicle Documentation (VeDoc)
8	Enter special equipment in online vehicle data card	Code 381 (CI+BOX card reader for DVB-T2-Standard)
9	Attach note "CA module card reader retrofitted as per AZ82.60-P-0032LWH" under field organization texts to design group 82
10	Connect diagnostic system and select vehicle via vehicle identification number (VIN)
			AD00.00-P-2000-04B
11	Carry out variant coding using software calibration number (SCN)	TV tuner
		The CA module card reader (1) may only be operated within a temperature range of 0 to 50°C. Outside this temperature range, the CA module card reader (1) will switch off automatically.
12	Disconnect diagnostic system
			AD00.00-P-2000-04B
	Check
13	Perform function test
