Retrofit Holder For CA Module Card Reader - AZ82.60-P-0032-02LWI

Model 205.047

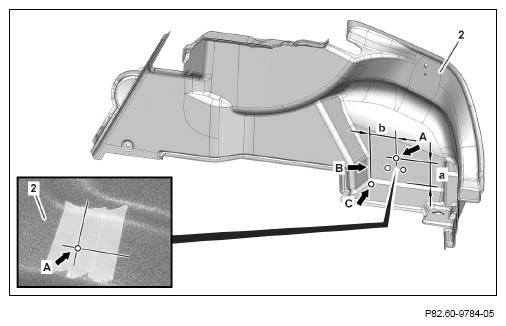

1. Mask off area for mounting bracket for CA module card reader on right trunk trim (2) with adhesive tape.
2. Mark hole (arrow A).

   Dimensions:

   a = 100 mm

   b = 50 mm

   Courtesy of MERCEDES-BENZ USA

3. Position velcro strip (3) on previously marked hole (arrow A), align and mark remaining holes according to velcro strip (3).

   Velcro strip (3) must be aligned at a right angle to reference edge (arrow B).

4. Remove velcro strip (3).
5. Drill marked holes with dia. 6 mm.

   Courtesy of MERCEDES-BENZ USA

6. Fasten velcro strip (3) with expansion rivets (4) on right trunk trim (2).

   Use expansion rivets (4) with dia. 6 mm. Expansion rivets (4) are included in scope of delivery.

   Courtesy of MERCEDES-BENZ USA

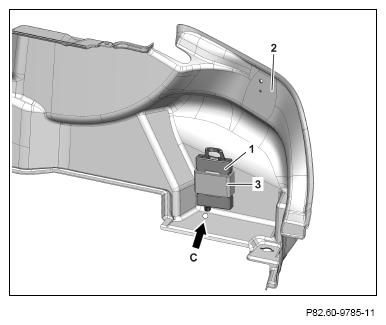

7. Fasten CA module card reader (1) to right trunk trim (2) by means of velcro strip (3).
8. Mark hole (arrow C) for electrical wiring harness passage for CA module card reader (1).
9. Remove CA module card reader (1).
10. Drill marked hole (arrow C) with dia. 6 mm.

    Courtesy of MERCEDES-BENZ USA

11. Cut in previously drilled hole (arrow C) approx. 4 mm at four points (dashed lines).

Courtesy of MERCEDES-BENZ USA
