Remove/Install Radio, Central Locking And KEYLESS-GO Antenna Amplifier - AR82.62-P-8307LW

Model 205.0/1/3

as of model year 2019

Shown on model 205.0

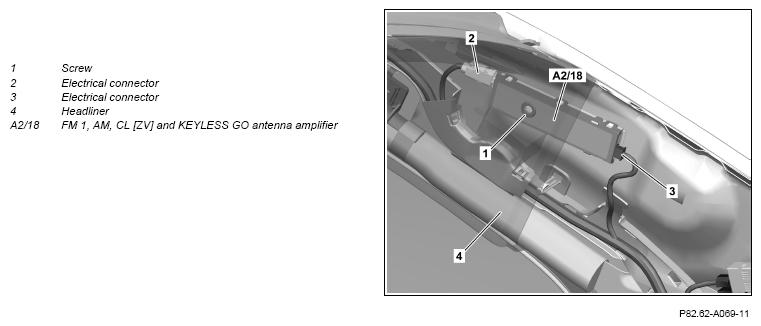

Fig 1: Radio, Central Locking And KEYLESS-GO Antenna Amplifier Components Location - Model 205.0/3; Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove right C-pillar trim.	Model 205.3 as of model year 2019	AR68.30-P-4490CLW
		Model 205.0/1 as of model year 2019	AR68.30-P-4490LW
2	Disconnect electrical connector (3).
3	Press roof lining (4) to one side.	Carefully press headliner (4) to one side. Otherwise the headliner (4) can be damaged.
4	Remove screw (1) and expose FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (A2/18) until the electrical connector (2) is accessible.	The bolt (1) remains on the FM 1, AM, CL and KEYLESS-GO antenna amplifier (A2/18).
5	Disconnect electrical connector (2) and remove FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (A2/18).
6	Install in the reverse order.
