Remove/Install Head Lamp Control Unit - AR82.10-P-4660LW
MODEL 205
with CODE 631 (Headlamps, LED, static, left-side traffic)
MODEL 205
with CODE 632 (Headlamps, LED, static, right-side traffic)
MODEL 205
with CODE 640 (High-performance LED)
MODEL 205
with CODE 641 (LED HEADLAMP, DYNAMIC, LEFT-HAND TRAFFIC)
MODEL 205
with CODE 642 (LED HEADLAMP, DYNAMIC, RIGHT-HAND TRAFFIC)

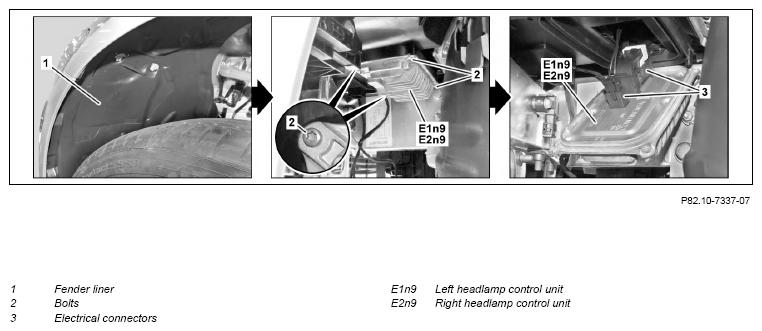

Shown on left side of vehicle

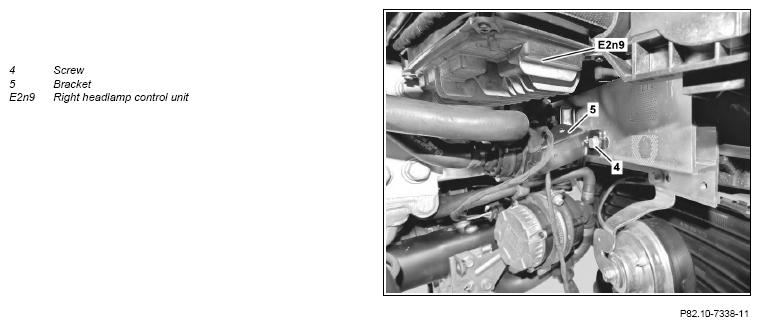

Right side of vehicle
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of left headlamp control unit (E1n9) or right headlamp control unit (E2n9) | When replacing the left headlamp control unit (E1n9) or right headlamp control unit (E2n9). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04B | ||
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Turn left or right front wheel inwards | ||
| 4 | Detach front section of fender liner (1) until left headlamp control unit (E1n9) or right headlamp control unit (E2n9) is accessible | AR88.10-P-1300LW | |
| 5 | Remove screw/bolt (4) and place bracket (5) to one side | When removing right headlamp control unit (E2n9). | |
| 6 | Remove screws/bolts (2) at left headlamp control unit (E1n9) or right headlamp control unit (E2n9) | ||
| 7 | Pull out left headlamp control unit (E1n9) or right headlamp control unit (E2n9) until electrical connectors (3) can be separated | ||
| 8 | Disconnect electrical connectors (3) and remove left headlamp control unit (E1n9) or right headlamp control unit (E2n9) | ||
| 9 | Install in the reverse order |
