Remove/Install Fender Liner In Front Fender - AR88.10-P-1300LW
Model 205
Model 253
Model 293

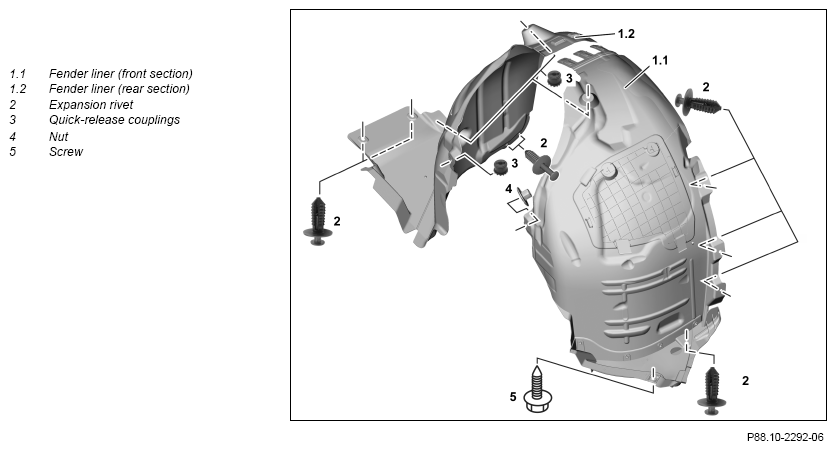

Shown on fender liner, model 205.0
| Remove/install | |||
| 1 | Raise vehicle | Model 205 Model 253 Model 293 Model 205, 253 |
AR00.60-P-1002LWG |
| 2 | Remove screw (5) | ||
| 3 | Remove expansion rivets (2) | ||
| 4 | Unscrew nuts (3, 4) | ||
| 5 | Pull outer edges of fender liner (front section) (1.1) and fender liner (rear section) (1.2) toward inside out of wheel arch lip and remove fender liner (front section) (1.1) and fender liner (rear section) (1.2) | ||
| 6 | Install in the reverse order |
