Remove/Install Amplifier For Sound System - AR82.62-P-7723LWR
Model 205.4
with code 810 (Premium sound system)
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of sound system amplifier control unit (N40/3) | When replacing the sound system amplifier control unit (N40/3). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove right side paneling in trunk | AR68.30-P-4800LWR | |

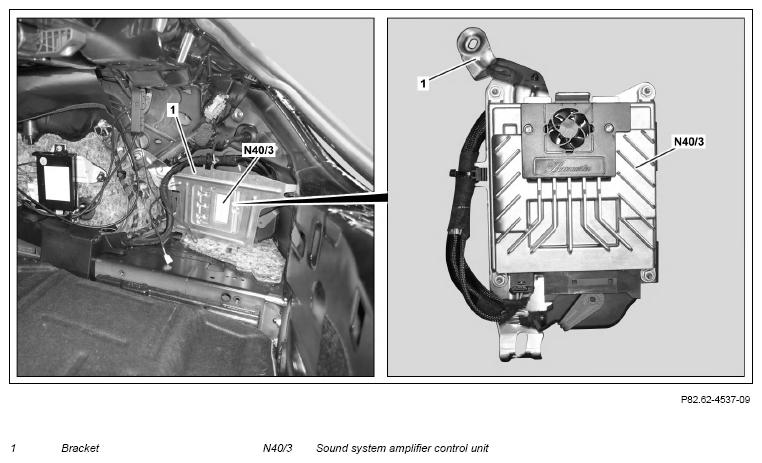

| 4 | Remove the bracket (1) with the sound system amplifier control unit (N40/3) from the sidewall | ||
| 5 | Disconnect electrical wiring harness from bracket (1) | ||
| 6 | Disconnect electrical connectors at sound system amplifier control unit (N40/3) | ||
| 7 | Remove sound system amplifier control unit (N40/3) with the bracket (1) | ||
| 8 | Detach sound system amplifier control unit (N403) from bracket (1) | When replacing the sound system amplifier control unit (N40/3). | |
| 9 | Install in the reverse order |
