Remove/Install AM Antenna Amplifier With Antenna Changeover Switch - AR82.62-P-8348LWR
Model 205.4
Model 238.4

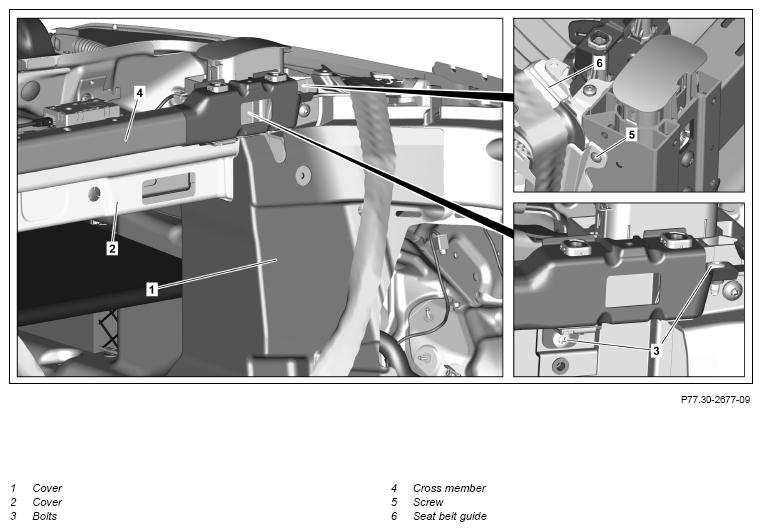

Shown on left side of vehicle on model 205.4

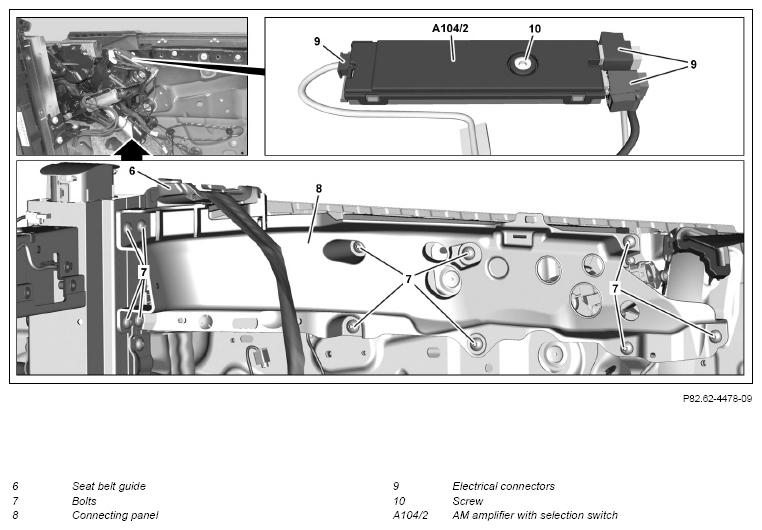

Shown on left side of vehicle on model 205.4
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects. |
AS91.00-Z-0003-01LCA | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove shoulder cushion in the rear | AR91.12-P-1712LWR | |
| 2 | Remove seat side bolster in left and right rear | AR91.12-P-1711LWR | |
| 3 | Remove lower side paneling in left rear | Model 238.4 | AR68.30-P-4784LWO |
| Model 205.4 | AR68.30-P-4784LWR | ||
| 4 | Release paneling (1) at left and right in area of roll bars | ||
| 5 | Remove panel (2) | ||
| 6 | Unscrew left and right screws (3) on crossmember (4) and remove crossmember (4) | ||
| 7 | Remove screw/bolt (5) at left belt guide (6) | ||
| 8 | Remove screws/bolts (7) at left connecting panel (8) and remove connecting panel (8) together with belt guide (6) | ||
| *BA64.10-P-1001-01D | |||
| 9 | Disconnect electrical connections (9) | ||
| 10 | Remove screw/bolt (10) and remove AM amplifier with selection switch (A104/2) | ||
| 11 | Install in the reverse order |
REAR PANEL
| Number | Designation | Model 205.4 | Model 238.4 | |
|---|---|---|---|---|
| BA64.10-P-1001-01D | Bolt, connecting panel to body | Nm | 20 | 20 |
