Hybrid Vehicle Telematics Services, Function - GF82.85-P-2061RF
Model 205.047
with code 348 (Emergency call/assistant system)
Model 205
up to model year 2019
with code 360 (HERMES UMTS)
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 205
up to model year 2019
with code 360 (HERMES UMTS)
with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Model 205
with code 362 (HERMES communications module LTE)
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 205
with code 362 (HERMES communications module LTE)
with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Model 205
with code B57 (KOM Module battery charging)
Model 253 (except 253.99)
up to model year 2019
with code 360 (HERMES UMTS)
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 253 (except 253.99)
with code 362 (HERMES communications module LTE)
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 253.99

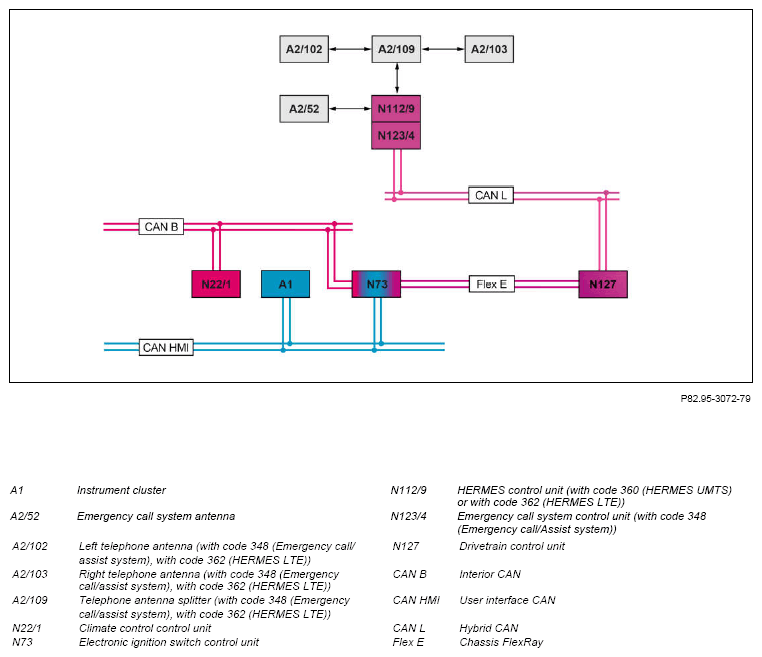

Shown on model 205 up to model year 2019 with code 348 (Emergency call/assist system) with code 360 (HERMES UMTS) or with code 362 (HERMES LTE)

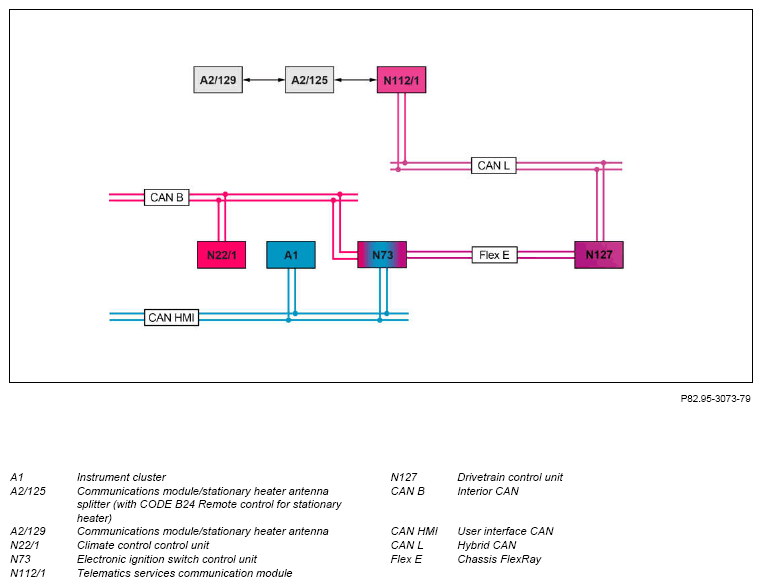

Shown on model 205 up to model year 2019 with code B57 (Communication module battery level)
General telematics services function requirements
- Status of circuit 30g On (model 205 up to model year 2019, Model 253 (except 253.99) up to model year 2020)
- Status of circuit 30t On (model 205 as of model year 2019, model 253 (except 253.99) as of model year 2020, model 253.99)
- Transport mode not active
- The vehicle owner is registered and authorized at the Service Center
- No prioritized service (emergency call (manual or automatic), MB information call, breakdown assistance) is activated
General telematics services
For convenient mobility planning in hybrid vehicles, the customer has the option of interrogating vehicle data and making settings via a vehicle-specific website, the "Vehicle Homepage". Position-dependent control and monitoring of the charging processes in particular are made possible by this. The "Vehicle Homepage" is made available by the service provider. The telematics services that can be performed via the "Vehicle Homepage" include the following functions, e. g.:
- Display of the battery charge level and the estimated battery charging duration
- Configuration and illustration of the pre-entry climate control
- Illustration of the estimated range
- Illustration of driving profiles (evaluations and statistics)
A gradual expansion of the functional scope is planned.
The processing of the telematics services includes the following procedures:
- Communication between vehicle and "Vehicle Homepage" via service provider
- CAN communication between the emergency call system control unit, the HERMES control unit or the telematics services communication module and other vehicle components
Communication between vehicle and "Vehicle Homepage" via service provider
As soon as the user has successfully called up the "Vehicle Homepage", he/she can exchange data with the vehicle (e. g. call up information and make settings) via a mobile radio connection secured by the service provider.
On vehicles with code 360 (HERMES UMTS), the signals are sent and received via the following route:
Emergency call system antenna →
HERMES control unit
On vehicles with code 362 (HERMES LTE) the signals are also sent and received over the following path:
Left telephone antenna and right telephone antenna →
Telephone antenna splitter →
HERMES control unit
On vehicles with code 348 (Emergency call/assist system), the signals are received and sent as follows:
Left telephone antenna and right telephone antenna →
Telephone antenna splitter →
Emergency call system control unit
On vehicles with code B57 (COM module battery level), the signals are received and sent as follows:
Communications module/stationary heater antenna →
Communications module/stationary heater antenna splitter (with code B24 (Remote control for stationary heater)) →
Telematics services communication module
Model 205.047 with code 348 (Emergency call/assistant system)
In the event of failure or poor reception of the left and right telephone antenna (e. g. defect because of rollover), the emergency call system control unit automatically transmits and receives the signals via the emergency call system antenna.
CAN communication between the emergency call system control unit, the telematics services communications module or the HERMES control unit and other vehicle components
During the data exchange concerning the charging processes, the emergency call system control unit (with code 348 (Emergency call/Assist system)), the telematics services communications module (with code B57 (COM MODULE battery level)) or the HERMES control unit (with code 360 (HERMES UMTS) or with code 362 (HERMES LTE)) communicates with the powertrain control unit via the hybrid CAN.
During pre-entry climate control the emergency call system control unit (with code 348 (Emergency call/Assist system)), the telematics services communications module (with code B57 (COM MODULE battery level)) or the HERMES control unit (with code 360 (HERMES UMTS) or with code 362 (HERMES LTE)) exchanges data via the following route:
Hybrid CAN →
Powertrain control unit →
Suspension FlexRay →
Electronic ignition lock control unit →
Interior CAN →
Climate control, control unit
The settings undertaken using the "Vehicle Homepage", for which visualization via the instrument cluster is relevant, are transmitted via the following route:
Emergency call system control unit (with code 348 (Emergency call/Assist system)), telematics services communications module (with code B57 (COM MODULE battery level)) or HERMES control unit (with code 360 (HERMES UMTS) or with code 362 (HERMES LTE)) →
Hybrid CAN →
Powertrain control unit →
Suspension FlexRay →
Electronic ignition lock control unit →
User interface CAN →
Instrument cluster
| Electrical function schematic for hybrid vehicle telematics services function | PE82.60-P-2065-97FBA | ||
| Overview of system components, telematics | Model 205, model 253.99, model 253 (except 253.99) up to model year 2020 | GF82.85-P-9999RF | |
| Model 253 (except 253.99) as of model year 2020 | GF82.85-P-9999RFM |
