Overview Of System Components, Telematics - GF82.85-P-9999RF

Model 205, 253.99

Model 253 (except 253.99)

up to model year 2020

G12941390Courtesy of MERCEDES-BENZ USA

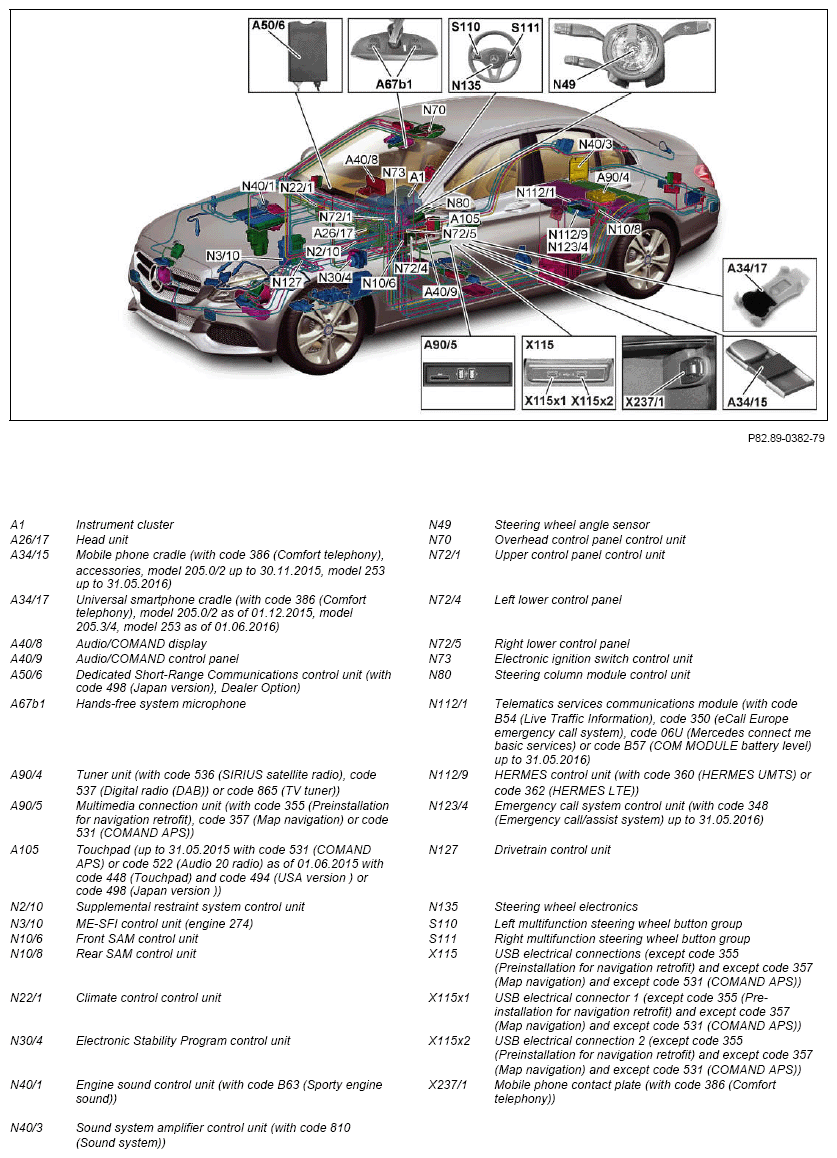

Shown on model 205.0 as of model year 2019, telematics except antenna system and speaker system

G12941391Courtesy of MERCEDES-BENZ USA

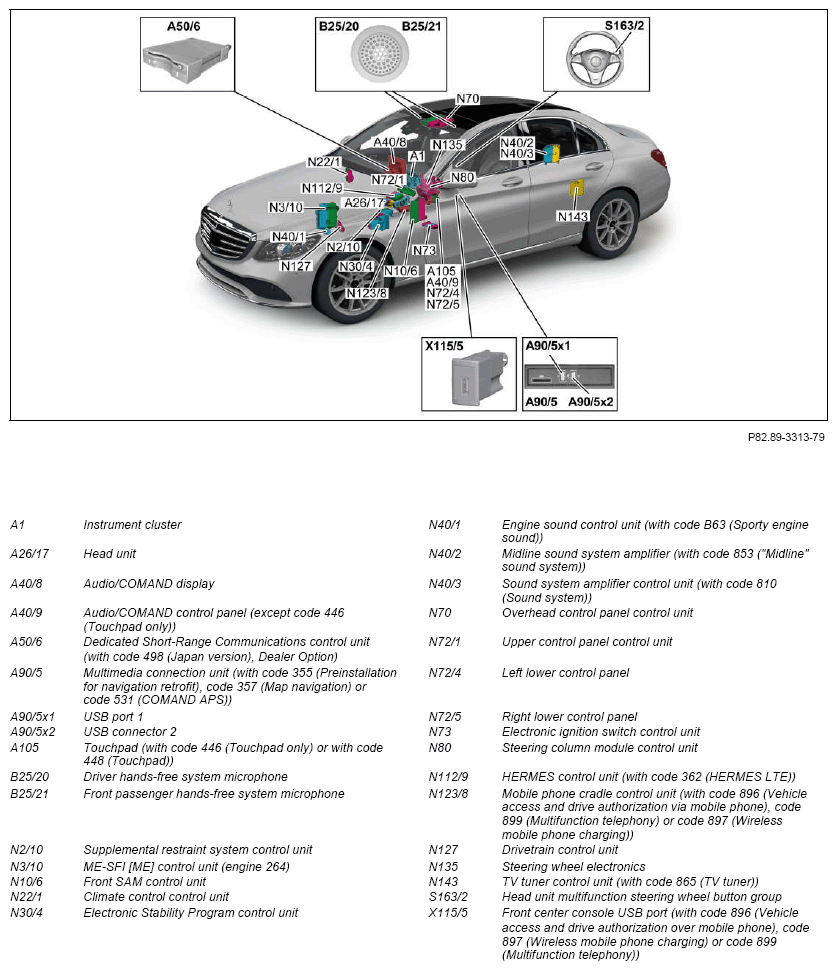

Shown on model 205.0 up to model year 2019, telematics except antenna system and speaker system

G12941392Courtesy of MERCEDES-BENZ USA

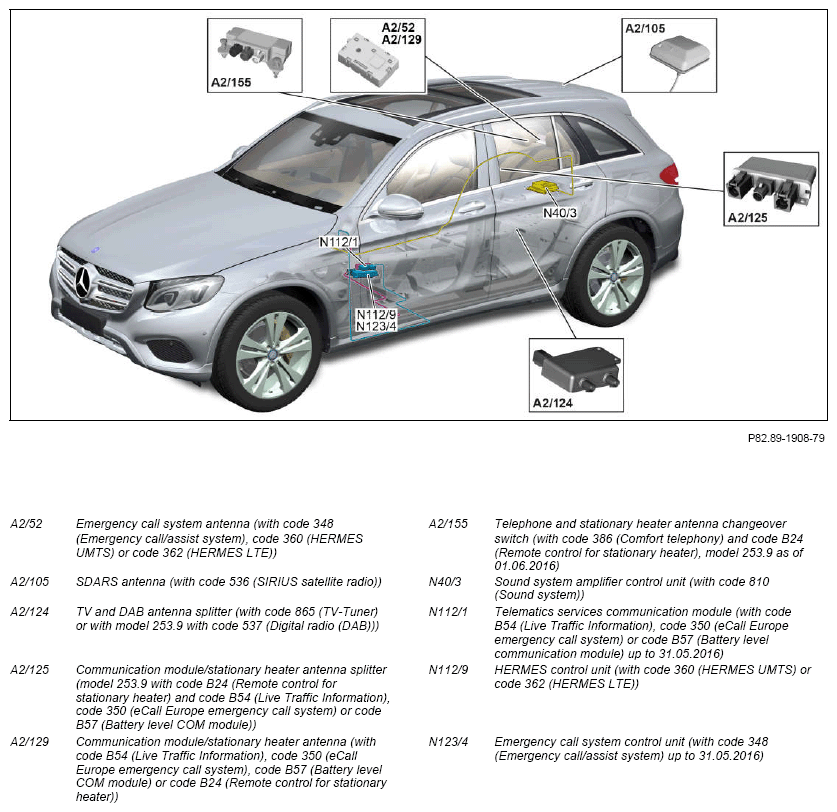

Model series-specific components in model 253

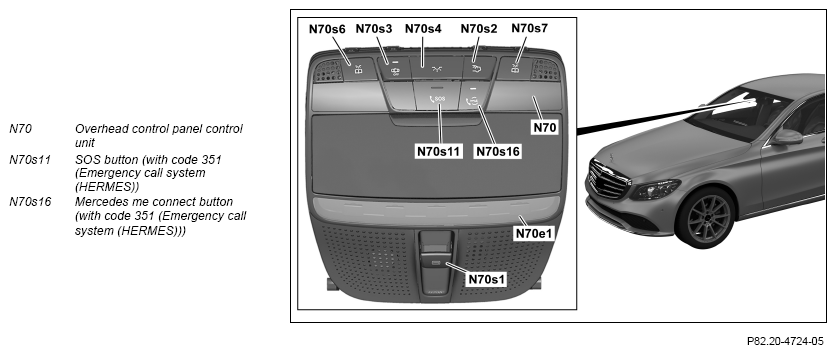

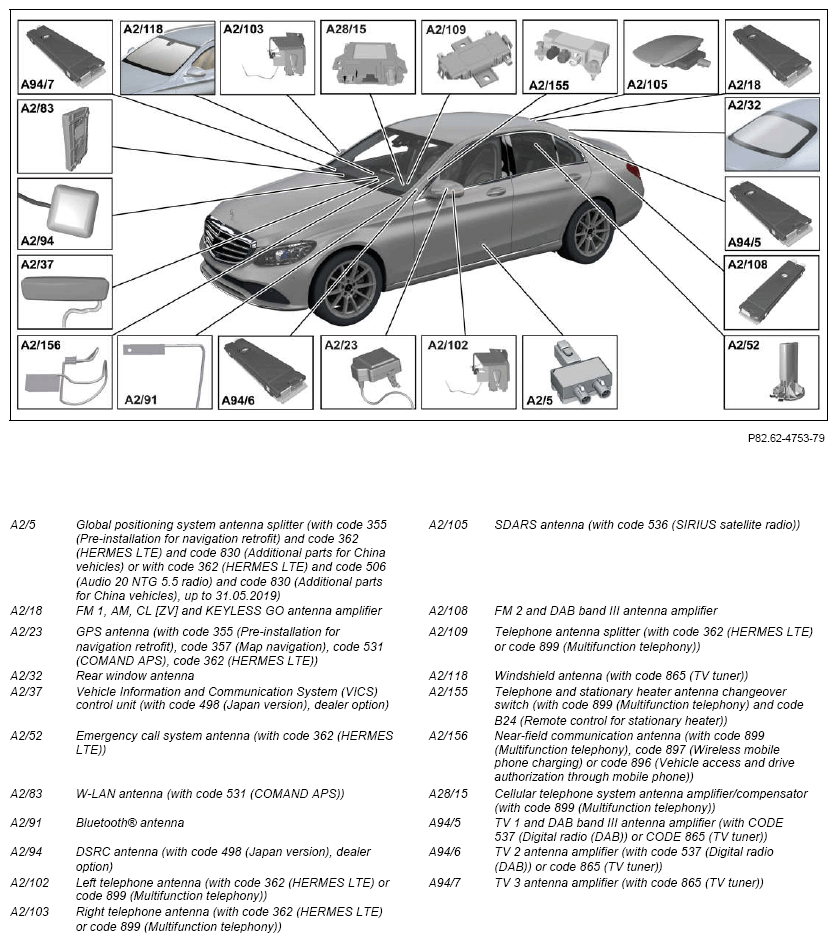

Model 205 as of 02.03.2018 (except model 205.4), model 253.99, shown with code 413 (Panoramic sliding sunroof) or code 414 (Sliding sunroof) and code 351 (Emergency call system (HERMES))

G12941393Courtesy of MERCEDES-BENZ USA

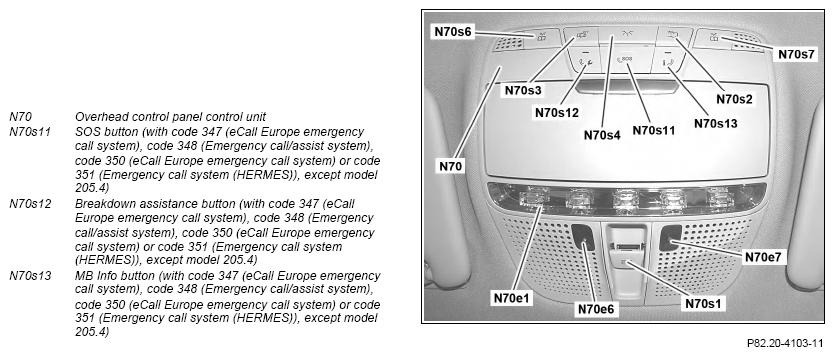

Model 205 up to 01.03.2018 (except model 205.4), model 253 (except model 253.99), shown with code 413 (Panoramic sliding sunroof) or code 414 (Sliding sunroof) and code 348 (emergency call/assistance system)

G12941394Courtesy of MERCEDES-BENZ USA

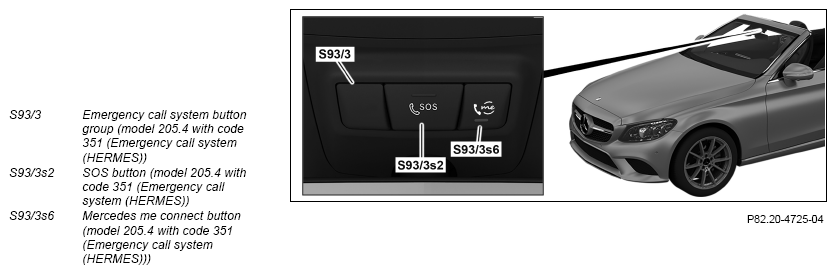

Emergency call system button group (S93/3), shown on model 205.4 from model year 2019 with code 351 (Emergency call system (HERMES))

G12941395Courtesy of MERCEDES-BENZ USA

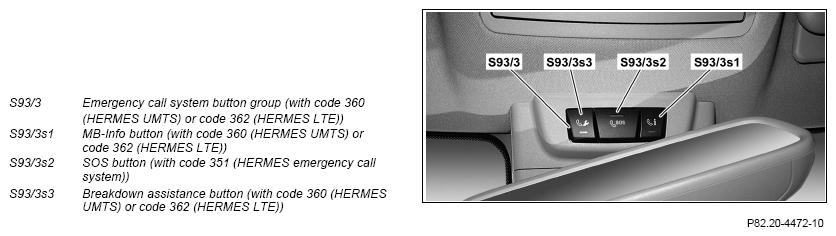

Emergency call system button group (S93/3), shown on model 205.4 up to model year 2019 with code 360 (HERMES UMTS) or code 362 (HERMES LTE)

G12941396Courtesy of MERCEDES-BENZ USA

Show on model 253.99

G12941397Courtesy of MERCEDES-BENZ USA

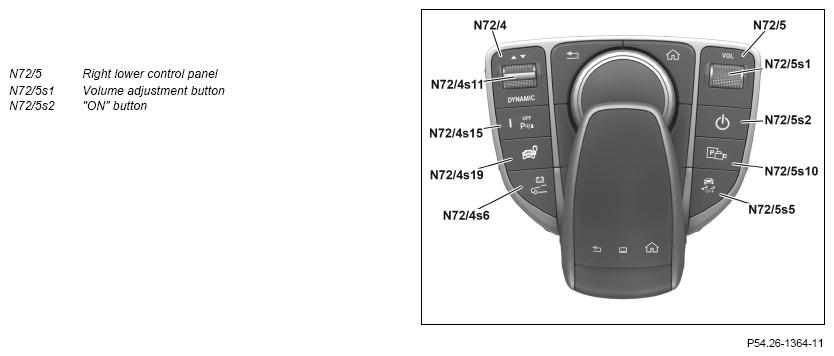

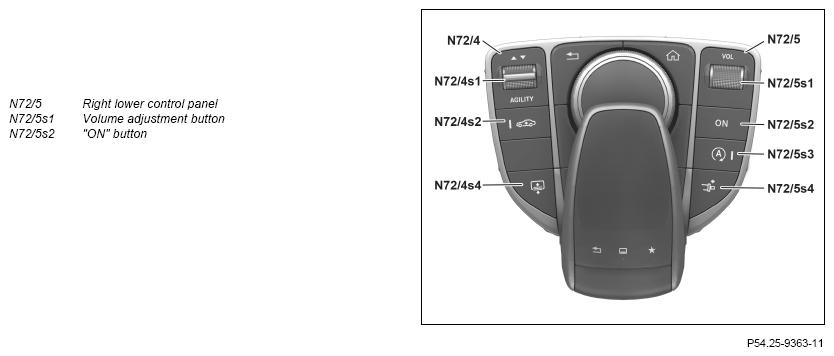

Shown on model 205 with code 489 (AIR BODY CONTROL), code 483 (ADVANCED AGILITY package), code 531 (COMAND APS) and automatic transmission up to model year 2016

G12941398Courtesy of MERCEDES-BENZ USA

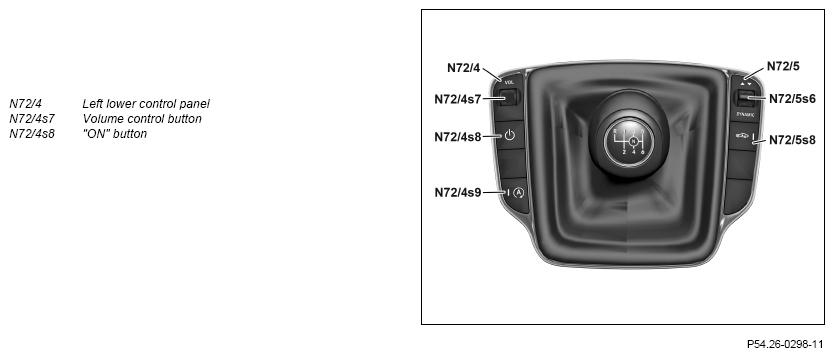

Shown on model 205 with code 489 (AIR BODY CONTROL), code 483 (ADVANCED AGILITY package) and manual transmission from model year 2016

G12941399Courtesy of MERCEDES-BENZ USA

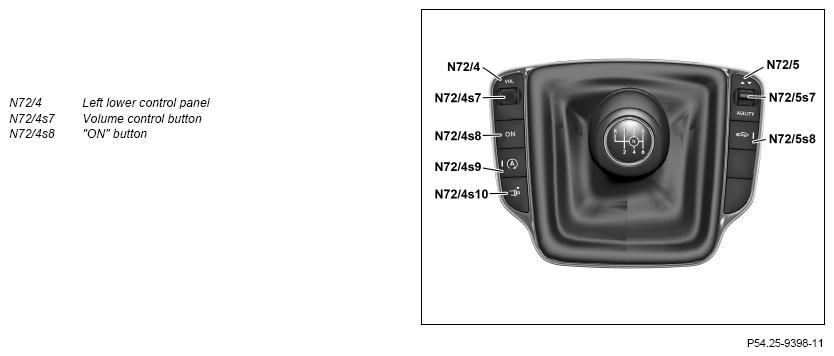

Shown on model 205 with code 489 (AIR BODY CONTROL), code 483 (ADVANCED AGILITY package) and manual transmission up to model year 2016

G12941400Courtesy of MERCEDES-BENZ USA

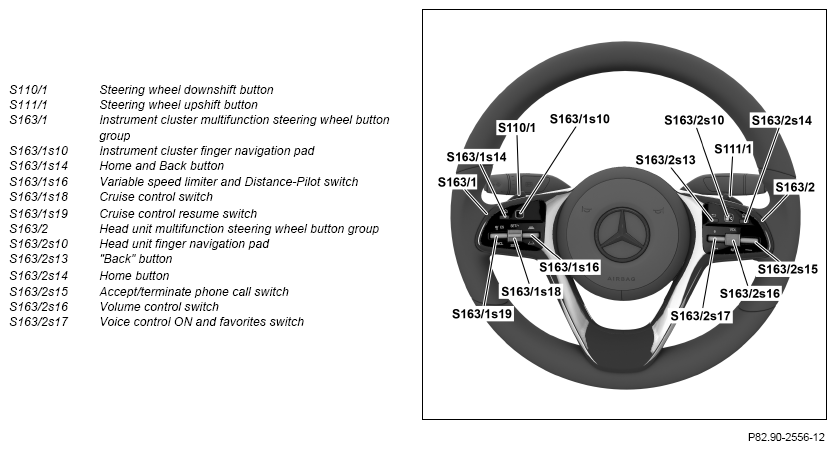

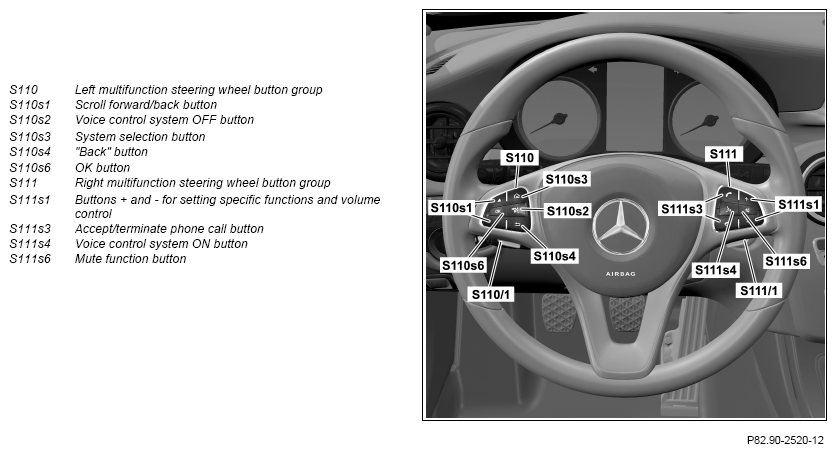

Detailed display of multifunction steering wheel, shown on model 205 as of model year 2019

G12941401Courtesy of MERCEDES-BENZ USA

Detailed display of multifunction steering wheel, shown on model 205 up to model year 2019

G12941402Courtesy of MERCEDES-BENZ USA
G12941403Courtesy of MERCEDES-BENZ USA

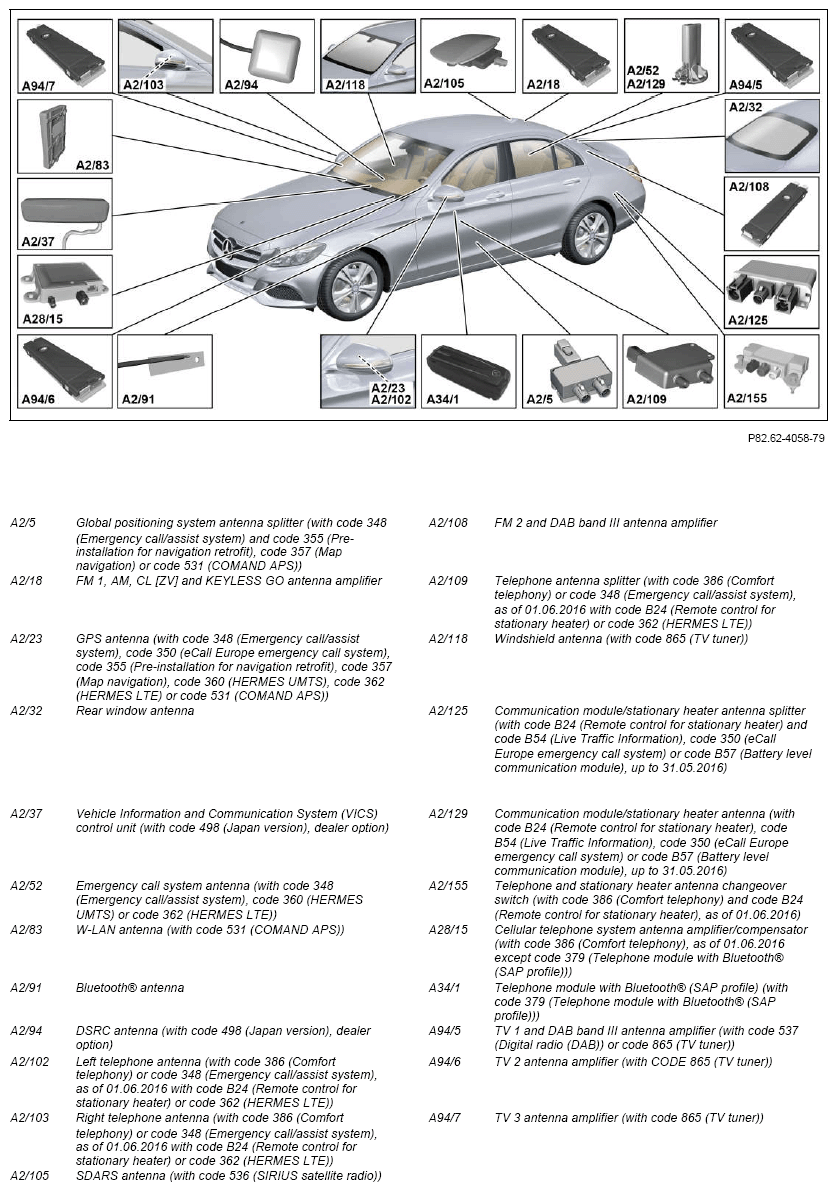

Telematics antenna system model 205.0/1/3, shown on model 205.0 as of model year 2019

G12941404Courtesy of MERCEDES-BENZ USA

Antenna system model 205.0/1/3, model 253.3, shown on model 205.0 up to model year 2019

G12941405Courtesy of MERCEDES-BENZ USA

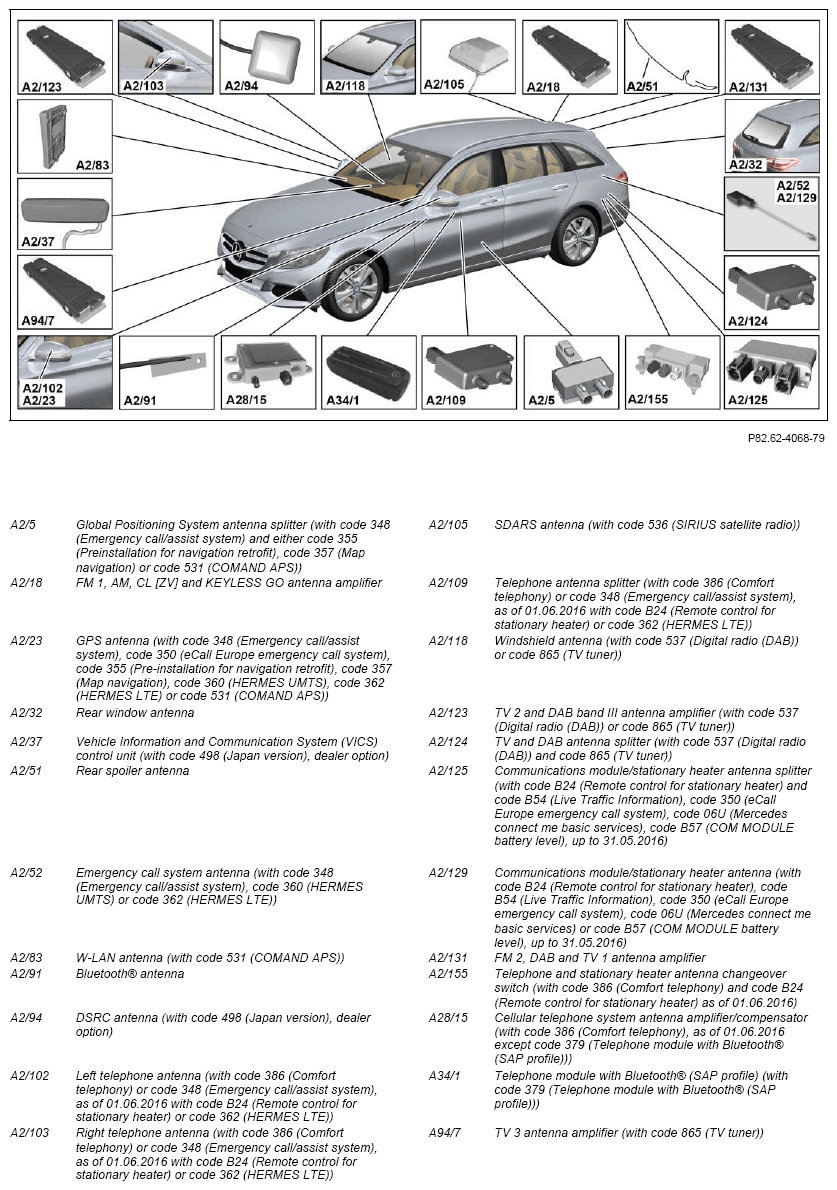

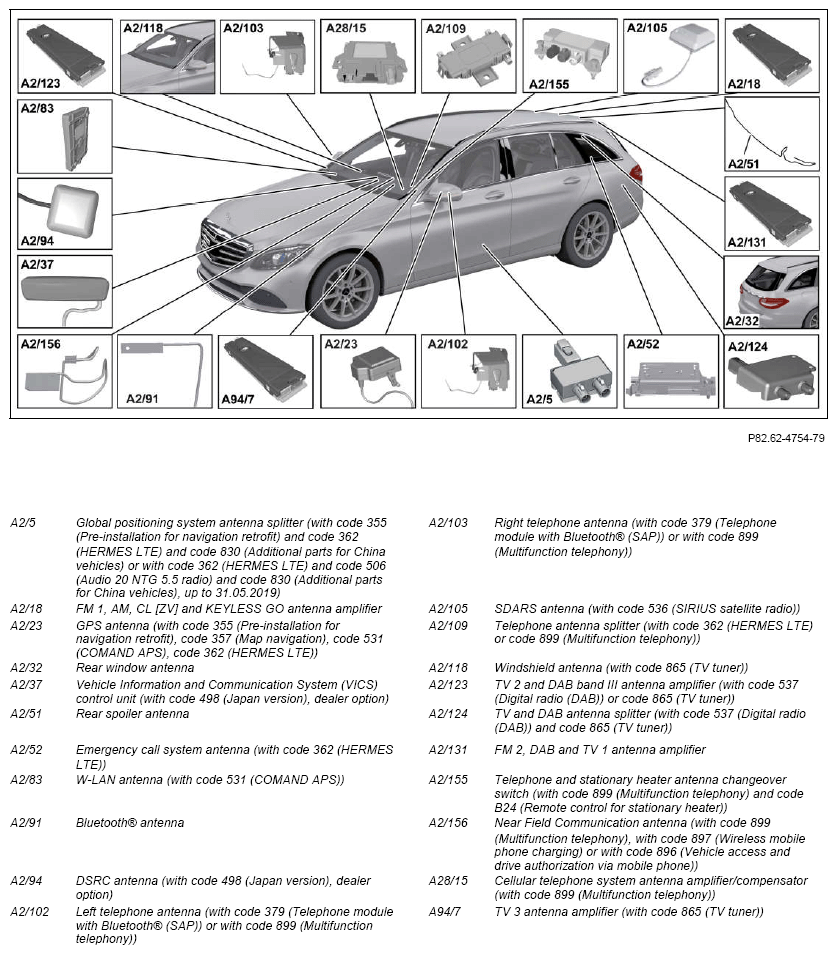

Telematics antenna system model 205.2 from model year 2019, model 253.99, shown on model 205.2 from model year 2019

G12941406Courtesy of MERCEDES-BENZ USA

Antenna system model 205.2, model 253.9 (except 253.99), shown on model 205.2 up to model year 2019

G12941407Courtesy of MERCEDES-BENZ USA

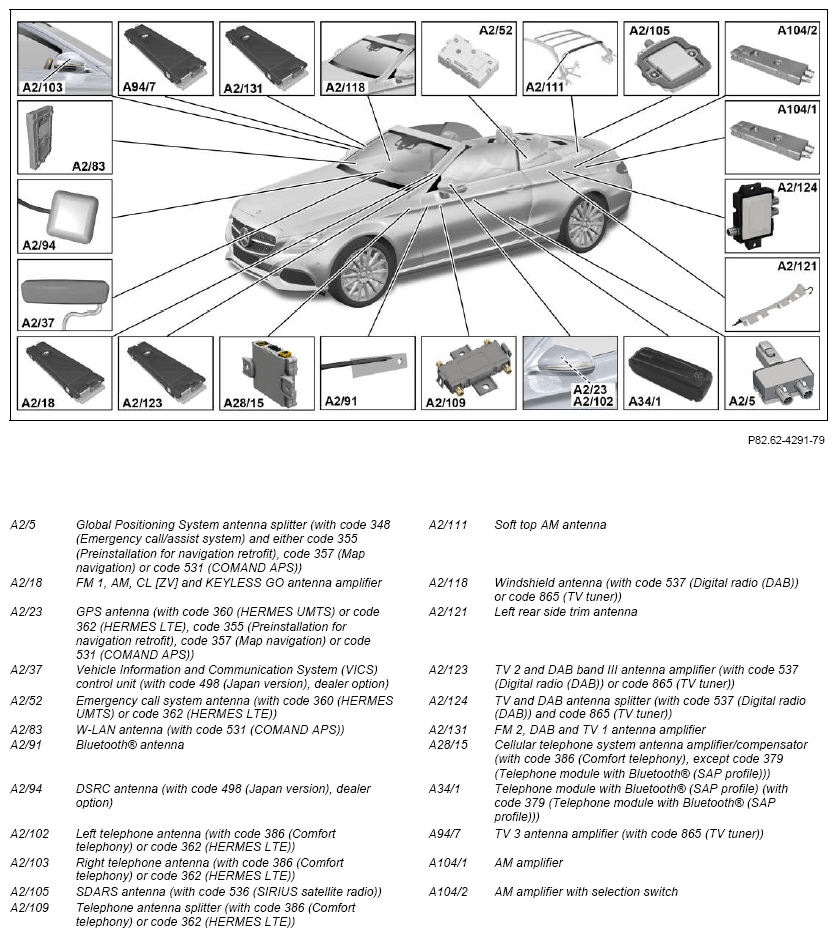

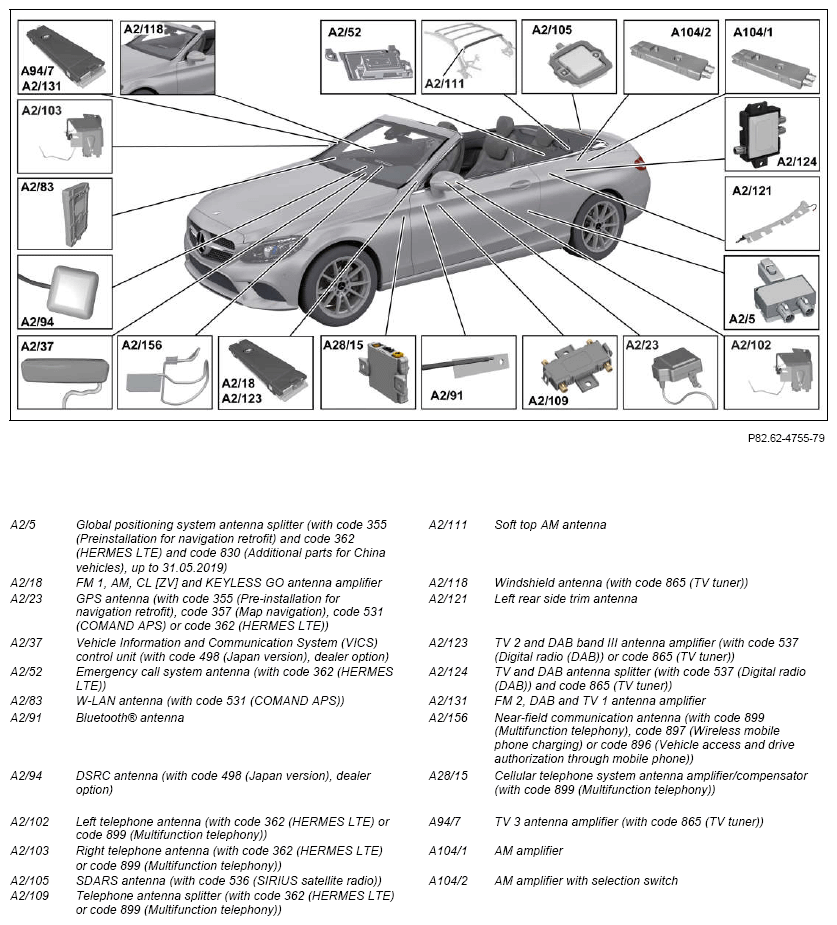

Telematics antenna system model 205.4 as of model year 2019

G12941408Courtesy of MERCEDES-BENZ USA

Telematics antenna system model 205.4 up to model year 2019

G12941409Courtesy of MERCEDES-BENZ USA

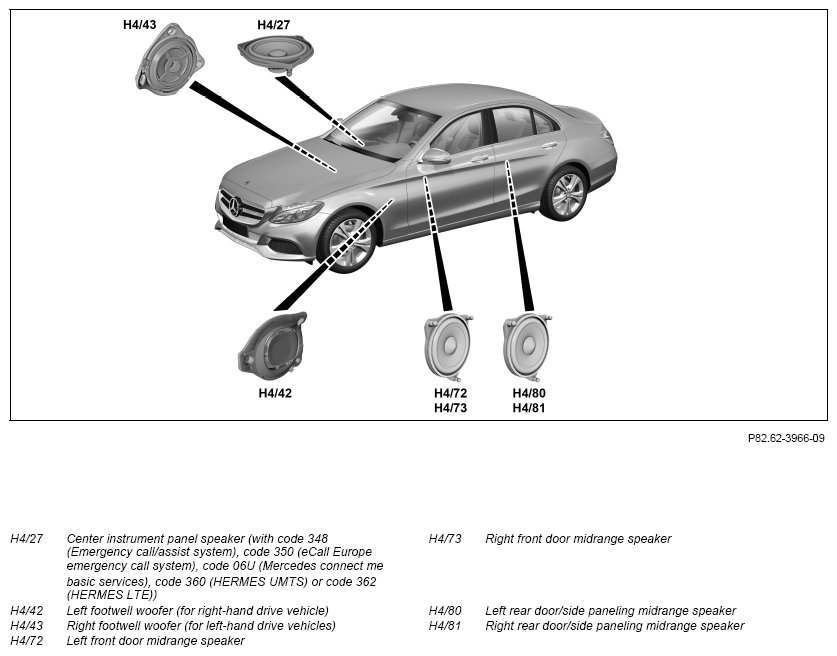

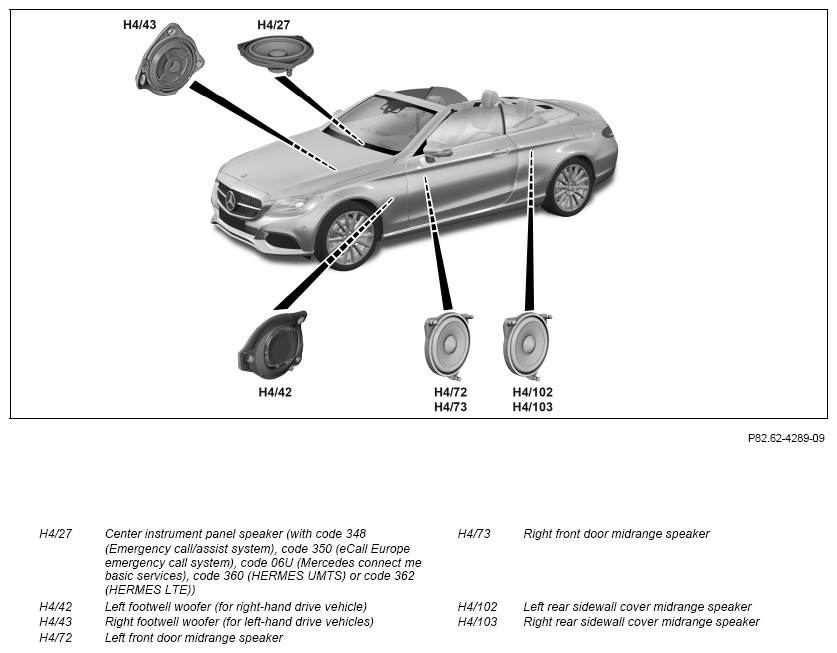

Speaker system model 205.0/1/2, model 253 except code 810 (Sound system) and except code 853 ("Midline" sound system), shown on model 205.0 up to model year 2019

G12941410Courtesy of MERCEDES-BENZ USA

Speaker system model 205.3/4 except code 810 (Sound system) and except code 853 ("Midline" sound system), shown on model 205.4 up to model year 2019

G12941411Courtesy of MERCEDES-BENZ USA

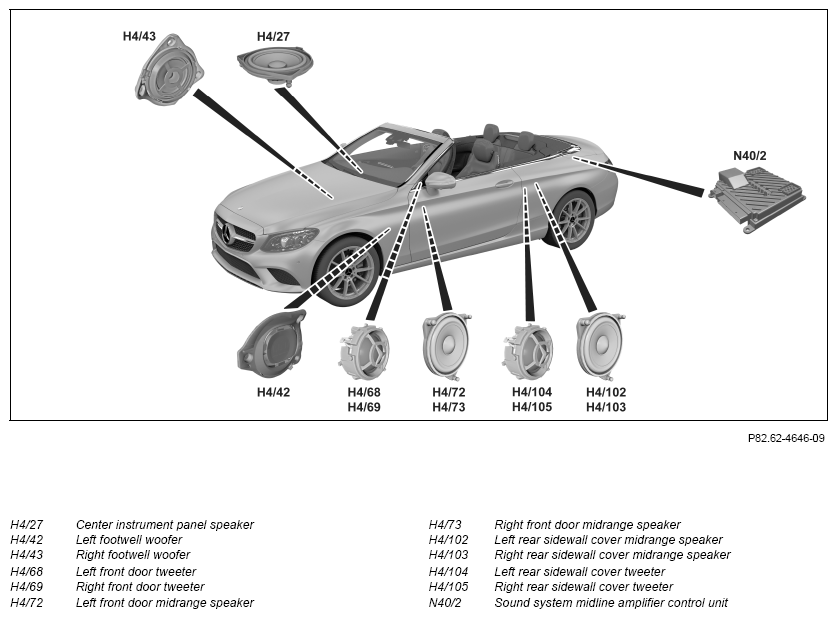

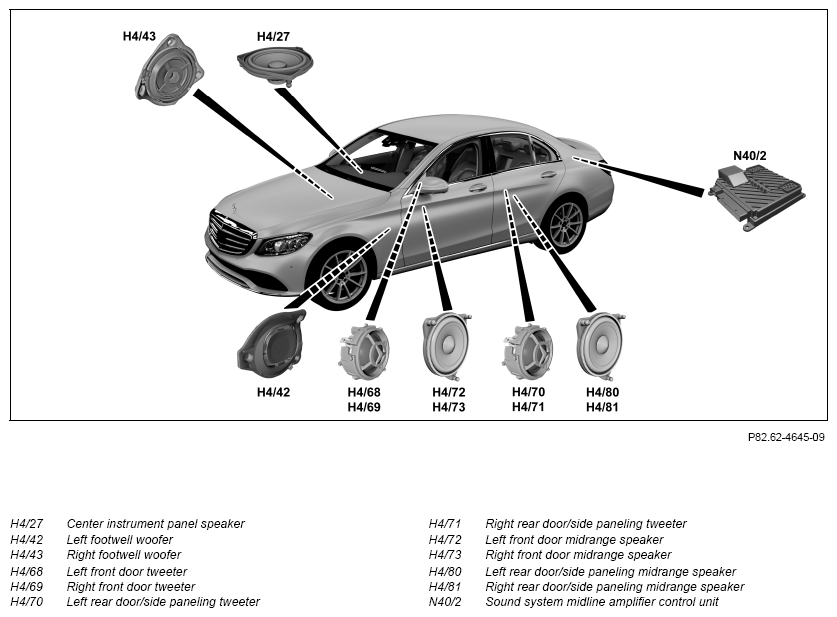

Speaker system model 205.0/1/2, model 253.99 with code 853 ("Midline" sound system), shown on model 205.0 from model year 2019

G12941412Courtesy of MERCEDES-BENZ USA

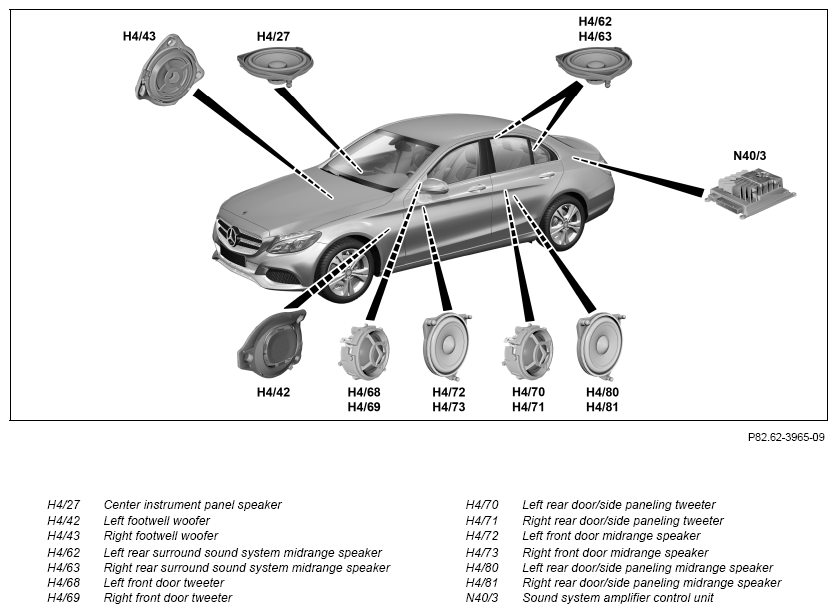

Speaker system model 205.3/4 with code 853 ("Midline" sound system), shown on model 205.4 as of model year 2019

G12941413Courtesy of MERCEDES-BENZ USA

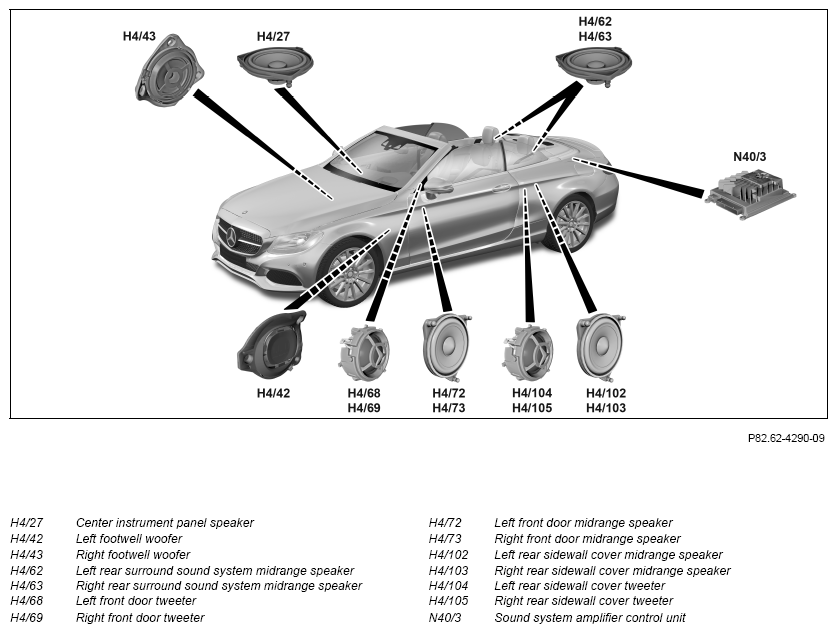

Speaker system model 205.0/1/2, model 253 with code 810 (Sound system), shown on model 205.0 up to model year 2019

G12941414Courtesy of MERCEDES-BENZ USA

Speaker system model 205.3/4 with code 810 (Sound system), shown on model 205.4 up to model year 2019

  Component description for instrument cluster A1 GF54.30-P-6000RF
  Head unit, component description Model 205
up to model year 2019
with code 520 (Audio 20 USB)
except code 522 (Audio 20 radio)
except code 531 (COMAND APS)
Model 253 (except 253.99)
up to model year 2020
with code 520 (Audio 20 USB)
except code 522 (Audio 20 radio)
except code 531 (COMAND APS)
A26/17		 GF82.85-P-3140RF
    Model 205
up to model year 2019
with code 522 (Audio 20 radio)
except code 520 (Audio 20 USB)
except code 531 (COMAND APS)
Model 253 (except 253.99)
up to model year 2020
with code 522 (Audio 20 radio)
except code 520 (Audio 20 USB)
except code 531 (COMAND APS)
A26/17		 GF82.85-P-3140RFA
    Model 205
as of model year 2019
with code 506 (Audio 20 NTG 5.5 radio)
Model 205
with code 531 (COMAND APS)
except code 520 (Audio 20 USB)
except code 522 (Audio 20 radio)
Model 253 (except 253.99)
up to model year 2020
with code 531 (COMAND APS)
except code 520 (Audio 20 USB)
except code 522 (Audio 20 radio)
Model 253.99
with code 531 (COMAND APS)
except code 520 (Audio 20 USB)
except code 522 (Audio 20 radio)
A26/17		 GF82.85-P-3140RFB
  Component description for Audio/COMAND display A40/8 GF54.30-P-6150RF
  Component description for Audio/COMAND control panel Model 205
as of model year 2019
except code 446 (Touchpad only)
Model 205
up to model year 2019
Model 253 (except 253.99)
up to model year 2020
A40/9		 GF54.21-P-4501RF
  Tuner unit, component description Model 205
up to model year 2019
with code 536 (SIRIUS satellite radio)
Model 205
up to model year 2019
with code 537 (Digital radio (DAB))
Model 205
up to model year 2019
with code 865 (TV tuner)
Model 253 (except 253.99)
up to model year 2020
with code 536 (SIRIUS satellite radio)
Model 253 (except 253.99)
up to model year 2020
with code 537 (Digital radio (DAB))
Model 253 (except 253.99)
up to model year 2020
with code 865 (TV tuner)
A90/4		 GF82.60-P-5015RF
  Touchpad, component description Model 205
as of model year 2016
with code 448 (Touchpad)
Model 205
as of model year 2019
with code 446 (Touchpad only)
Model 205
up to model year 2016
with code 522 (Audio 20 radio)
Model 205
up to model year 2016
with code 531 (COMAND APS)
Model 205
up to model year 2019
with code 494 (US version)
Model 205
up to model year 2019
with code 498 (Japanese version)
Model 253 (except 253.99)
up to model year 2020
with code 448 (Touchpad)
Model 253.99
with code 446 (Touchpad only)
A105		 GF54.21-P-4511RF
  Supplemental restraint system control unit, component description N2/10 GF91.60-P-4080RF
  Component description for ME-SFI (ME) control unit Model 205 (except 205.047/053/054/147/247/253) with engine 274.9
Model 253 (except 253.354/954/99) with engine 274.9
up to model year 2020
N3/10		 GF07.61-P-6000MRA
    Model 205 with engine 264.9
N3/10		 GF07.61-P-6000MRS
  Component description for front SAM control unit N10/6 GF54.21-P-7010RF
  Component description for rear SAM control unit N10/8 GF54.21-P-7030RF
  Climate control, control unit, component description N22/1 GF83.40-P-2250RF
  Component description for Electronic Stability Program control unit Model 205 (except 205.012/013/047/053/054/147/212/213/247/253)
Model 253 (except 253.354/954/99)
up to model year 2020
N30/4		 GF42.45-P-5119RF
    Model 205.012/013/047/053/054/147/212/213/247/253, 253.99
Model 253.354/954
up to model year 2020
N30/4		 GF42.45-P-5119RFH
  Engine sound control unit, component description Model 205
as of model year 2019
with code B63 (Sporty engine sound)
except code 810 (Sound system)
except code 853 ("Midline" sound system)
Model 205
up to model year 2019
with code B63 (Sporty engine sound)
Model 253 (except 253.99)
up to model year 2020
with code B63 (Sporty engine sound)
N40/1		 GF54.21-P-0019RF
  Component description for sound system amplifier control unit Model 205
as of model year 2019
with code 853 ("Midline" sound system)
except code 810 (Sound system)
N40/2		 GF82.62-P-5010RFM
    Model 205
with code 810 (Sound system)
Model 253 (except 253.99)
up to model year 2020
with code 810 (Sound system)
Model 253.99
with code 810 (Sound system)
N40/3		 GF82.62-P-5010RF
  Component description for overhead control panel control unit N70, N70s11, N70s12, N70s13, N70s16 S93/3, S93/3s1, S93/3s2, S933s3/, S93/3s6 GF82.20-P-5216RF
  Upper control panel control unit, component description N72/1 GF54.21-P-6040RF
  Lower control panel, component description N72/4, N72/4s7, N72/4s8 N72/5, N72/5s1, N72/5s2 GF54.25-P-4270RF
  Component description for the electronic ignition lock control unit Model 205
up to model year 2019
Model 253 (except 253.99)
up to model year 2020
N73		 GF80.57-P-6001RF
    Model 205
as of model year 2019
Model 253.99
N73		 GF80.57-P-6001RFM
  Component description for steering column tube module control unit Model 205
up to model year 2019
Model 253 (except 253.99)
up to model year 2020
N80		 GF54.21-P-6051RF
    Model 205
as of model year 2019
Model 253.99
N80		 GF54.21-P-6051RFM
  Telematics services communications module, component description Model 205, 253
up to model year 2017
with code 06U (Mercedes connect me standard services)
Model 205, 253
up to model year 2017
with code 350 (Ecall emergency call system, Europe)
Model 205, 253
up to model year 2017
with code B54 (Live Traffic Information)
Model 205, 253
up to model year 2017
with code B57 (KOM Module battery charging)
N112/1		 GF82.85-P-0220RF
  HERMES control unit, component description Model 205, 253.99
with code 362 (HERMES LTE)
Model 205
up to model year 2019
with code 360 (HERMES UMTS)
Model 253 (except 253.99)
up to model year 2020
with code 360 (HERMES UMTS)
Model 253 (except 253.99)
up to model year 2020
with code 362 (HERMES LTE)
N112/9		 GF82.85-P-0221RF
  Component description for emergency call system control unit Model 205, 253
up to model year 2017
with code 348 (Emergency call/assistant system)
N123/4		 GF82.95-P-3212RFU
  Mobile phone cradle control unit component description Model 205
as of model year 2019
with code 896 (Vehicle access and drive authorization via mobile phone)
Model 205
as of model year 2019
with code 897 (Wireless mobile phone charging)
Model 205
as of model year 2019
with code 899 (Multifunction telephony)
N123/8		 GF82.70-P-0201RFM
  Drivetrain control unit, component description Model 205 (except 205.047/053/054/147/247/253) with engine 274.9
Model 253 (except 253.354/954) with engine 274.9
up to model year 2020
N127		 GF54.21-P-2141MRA
    Model 205.047/053/054/147/247/253 with engine 274.9
Model 253.354/954 with engine 274.9
up to model year 2020
N127		 GF54.21-P-2141MRH
    Model 205.012/212 with engine 651.9
N127		 GF54.21-P-2141OLC
  TV tuner control unit, component description Model 205
as of model year 2019
with code 865 (TV tuner)
Model 253.99
with code 865 (TV tuner)
N143		 GF82.60-P-3108RFM
  Table of contents for function description, telematics   GF82.85-P-0993RF
