Inspect Condition Of Brake Disks - AP42.10-P-4258AC
Model 190, 205
with code B07 (AMG - ceramic brake system)
MODIFICATION NOTES
| 20.09.2019 | Checking brake disks for wear using Carboteq measurement method added. | Operation step 5.2 | AR42.10-P-0264-01RG |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Remove | |||
| 1 | Remove wheel and tire assemblies. | ||
| Model 190 | AR40.10-P-1100RQ | ||
| Model 205 On front axle only. |
AR40.10-P-1102A | ||
| 2 | Remove front brake disks. | When checking brake disks for wear using wear indicators. | |
| Model 190 | AR42.10-P-0230RG | ||
| Model 205 | AR42.10-P-0220EWE | ||
| 3 | Remove rear brake disks. | When checking brake disks for wear using wear indicators. | |
| Model 190 | AR42.10-P-0240RG | ||
| Check | |||

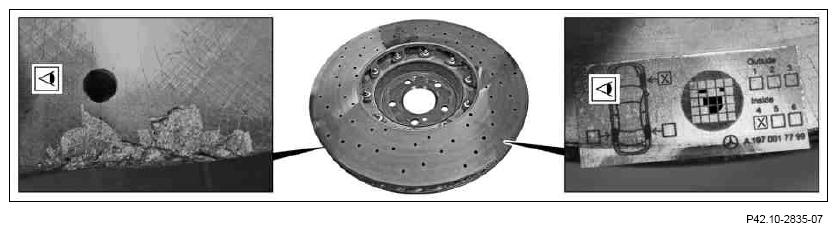

| 4 | Check brake disks for damage. Notes on evaluating brake disks |
Replace brake disks subject to separate repair order. Otherwise the brake system may malfunction. On front axle only. |
AH42.10-P-9406-07RQ |
| 5.1 | Check brake disks for wear. | Checking brake disks for wear using wear indicators. Replace brake disks subject to separate repair order. Otherwise the brake system may malfunction. with code B07 (AMG - ceramic brake system) On front axle only. Part number: A 197 001 77 99 Designation: Test film Quantity: as required. |
AP42.10-P-4258-02RQ |
| Risk of injury to skin and eyes from laser beams | Never look directly into the laser beam. Do not attempt to suppress natural reflex of closing the eyelids. Avoid direct skin contact with the laser beam. If damage to the eye is suspected, consult an eye specialist immediately. |
AS30.30-Z-0001-01A | |
| 5.2 | Check brake disks for wear. | Checking brake disks for wear using Carboteq measurement method. | |
Replace brake disks subject to separate repair order. Otherwise the brake system may malfunction. with code B07 (AMG - ceramic brake system) On front axle only. |
AR42.10-P-0264-01RG | ||
| Install | |||
| 6 | Install rear brake disks. | When checking brake disks for wear using wear indicators. | |
| Model 190 | AR42.10-P-0240RG | ||
| 7 | Install front brake disks. | When checking brake disks for wear using wear indicators. | |
| Model 190 | AR42.10-P-0230RG | ||
| Model 205 | AR42.10-P-0220EWE | ||
| 8 | Install wheel and tire assemblies. | ||
| Model 190 | AR40.10-P-1100RQ | ||
| Model 205 with code B07 (AMG - ceramic brake system) On front axle only. |
AR40.10-P-1102A |
