Remove/install low-temperature circuit additional radiator - AR09.41-P-3001NKE
ENGINE 780 in MODEL 242
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Drain coolant from low-temperature circuit | AR09.41-P-6834NKE | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 2 | Remove front bumper | AR88.20-P-2000NKB | |

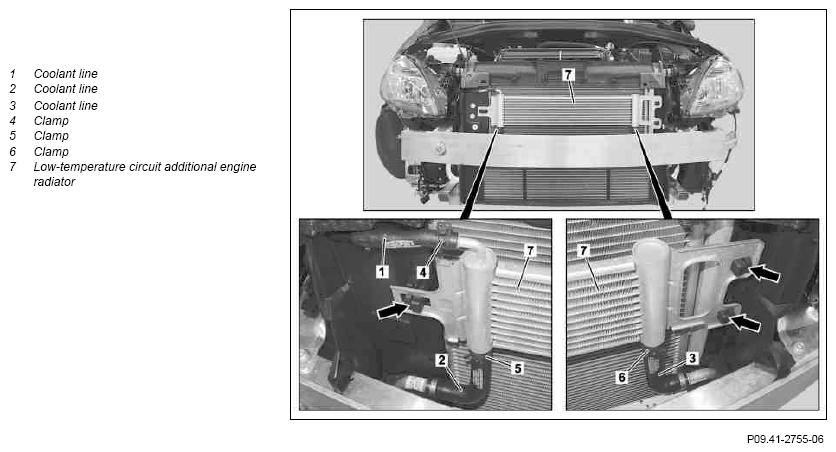

| 3 | Detach coolant lines (1, 2, 3) | ||
| 4 | Unclip low-temperature circuit additional engine radiator (7) (arrows) and remove | ||
| 5 | Install in the reverse order | ||
| 6 | Pour in coolant and bleed low-temperature circuit cooling system | AR20.00-P-1142-04AK | |
| Fig 2 | |||
| Fig 4 | |||
| Fig 3 | |||
| Check | |||
| 7 | Check low-temperature circuit cooling system for leaktightness | AR20.00-P-1010NKE | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run while checking cooling system low-temperature circuit for proper operation |
