Remove/install low temperature water circuit radiator - AR09.41-P-6935NKE
ENGINE 780 in MODEL 242
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Drain coolant from low-temperature circuit | AR09.41-P-6834NKE | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 2 | Remove front bumper | AR88.20-P-2000NKB | |

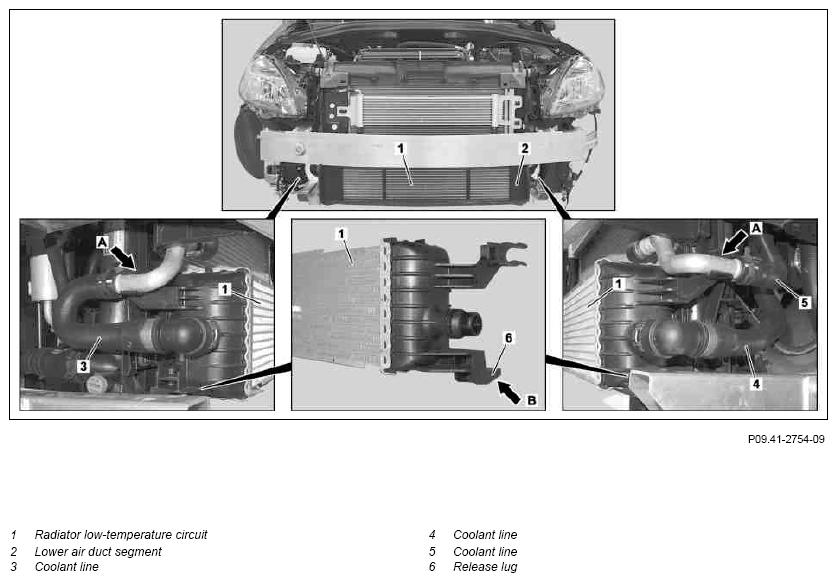

| 3 | Remove lower air duct segment (2) | ||
| 4 | Unlock and disconnect coolant lines (3, 4) | ||
| 5 | Unclip coolant lines (3, 5) from radiator low-temperature circuit (1) (arrows A) | ||
| 6 | Push release lugs (6) upwards (arrow B) and remove low-temperature water circuit radiator (1) | ||
| 7 | Install in the reverse order | ||
| 8 | Pour in coolant and bleed cooling system low-temperature circuit | AR20.00-P-1142-04AK | |
| Figure | |||
| Figure | |||
| Figure | |||
| Check | |||
| 9 | Check low-temperature circuit cooling system for leaktightness | AR20.00-P-1010NKE | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform an engine test run while checking low-temperature circuit for proper function |
