Retrofit reversing camera - AN54.65-P-0030NKE

MODEL 242.848/890 1# with CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer) without CODE 520 (Audio 20 USB) without CODE 522 (Audio 20 radio) without CODE 523 (Audio 20 CD) without CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 531 (COMAND APS)

MODEL 242.848/890 1# with CODE 512 (COMAND APS with DVD changer) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 520 (Audio 20 USB) without CODE 522 (Audio 20 radio) without CODE 523 (Audio 20 CD) without CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 531 (COMAND APS)

MODEL 242.848/890 1# with CODE 523 (Audio 20 CD) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 512 (COMAND APS with DVD changer) without CODE 520 (Audio 20 USB) without CODE 522 (Audio 20 radio) without CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 531 (COMAND APS)

MODEL 242.848/890 1# with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 512 (COMAND APS with DVD changer) without CODE 520 (Audio 20 USB) without CODE 522 (Audio 20 radio) without CODE 523 (Audio 20 CD) without CODE 531 (COMAND APS)

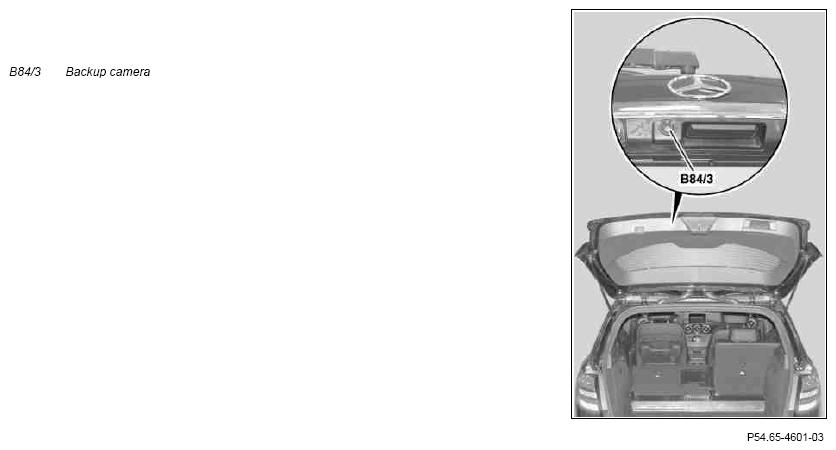

Fig 1: Identifying Backup Camera
G10442882Courtesy of MERCEDES-BENZ USA
NOTES Notes on the use of paint scraping nuts on ground connections   AH00.19-P-1000-20A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVING Remove
1 Move front passenger seat toward rear
2 Disconnect battery ground line
REFER TO TESTING & REPAIR     AR54.10-P-0003NKB
3 Remove front door sill molding and rear right
REFER TO TESTING & REPAIR     AR68.30-P-4100NKB
4 Loosen right front edge guard in the area of the A-pillar cover and in the area of the door sill
5 Remove cover below right dashboard
REFER TO TESTING & REPAIR     AR68.30-P-4010NKB
6 Fold back floor covering at right in footwell
7 Unfasten vehicle interior fuse box and turn around with wiring harnesses connected
REFER TO TESTING & REPAIR     AR54.21-P-1255-10NKB
8.1 Release COMAND controller unit and carefully put down on center console with wiring harnesses connected MODEL 242.848/890 1#
with CODE 512 (COMAND APS with DVD changer)
without CODE 460 (Canada version)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 523 (Audio 20 CD)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 531 (COMAND APS)
MODEL 242.848/890 1#
with CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 460 (Canada version)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 512 (COMAND APS with DVD changer)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 523 (Audio 20 CD)
without CODE 531 (COMAND APS)
REFER TO TESTING & REPAIR     AR82.60-P-7502NKB
    IMPORTANT Use clean cloth as base.
8.2 Remove radio MODEL 242.848/890 1#
with CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 460 (Canada version)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 512 (COMAND APS with DVD changer)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 523 (Audio 20 CD)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 531 (COMAND APS)
MODEL 242.848/890 1#
with CODE 523 (Audio 20 CD)
without CODE 460 (Canada version)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 512 (COMAND APS with DVD changer)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
REFER TO TESTING & REPAIR     AR82.60-P-7502NKB
    IMPORTANT The radio is no longer required.
The radio must be replaced with a new one with connector for the reversing camera (B84/3).
9 Remove left and right trunk lining
REFER TO TESTING & REPAIR     AR68.30-P-4800NKB
10 Remove paneling from liftgate
11 Remove handle strip for liftgate IMPORTANT The trunk lid handle strip is no longer required.
12 Remove headliner
13 Remove electronic ignition control unit MODEL 242.848/890 1#
with CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 234 (Blind Spot Monitoring)
without CODE 429 (7G-DCT)
without CODE 460 (Canada version)
without CODE 475 (Tyre pressure monitoring system)
without CODE 476 (Lane keeping assist)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 512 (COMAND APS with DVD changer)
without CODE 513 (Speed Limit Assist)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 523 (Audio 20 CD)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
without CODE 614 (Bi-xenon headlamps)
without CODE 615 (Bi-xenon headlamps with active light function)
without CODE 618 (Bi-xenon headlamps)
without CODE 621 (Intelligent Light System (left-hand traffic))
without CODE 622 (Intelligent Light System)
MODEL 242.848/890 1#
with CODE 512 (COMAND APS with DVD changer)
without CODE 234 (Blind Spot Monitoring)
without CODE 429 (7G-DCT)
without CODE 460 (Canada version)
without CODE 475 (Tyre pressure monitoring system)
without CODE 476 (Lane keeping assist)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 513 (Speed Limit Assist)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 523 (Audio 20 CD)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
without CODE 614 (Bi-xenon headlamps)
without CODE 615 (Bi-xenon headlamps with active light function)
without CODE 618 (Bi-xenon headlamps)
without CODE 621 (Intelligent Light System (left-hand traffic))
without CODE 622 (Intelligent Light System)
MODEL 242.848/890 1#
with CODE 523 (Audio 20 CD)
without CODE 234 (Blind Spot Monitoring)
without CODE 429 (7G-DCT)
without CODE 460 (Canada version)
without CODE 475 (Tyre pressure monitoring system)
without CODE 476 (Lane keeping assist)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 512 (COMAND APS with DVD changer)
without CODE 513 (Speed Limit Assist)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
without CODE 614 (Bi-xenon headlamps)
without CODE 615 (Bi-xenon headlamps with active light function)
without CODE 618 (Bi-xenon headlamps)
without CODE 621 (Intelligent Light System (left-hand traffic))
without CODE 622 (Intelligent Light System)
REFER TO TESTING & REPAIR     AR46.10-P-0810NKB
    IMPORTANT The electronic ignition lock control unit is no longer required.
REMOVING Install
14 Retrofit CAN potential distributor MODEL 242.848/890 1#
with CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 234 (Blind Spot Monitoring)
without CODE 429 (7G-DCT)
without CODE 460 (Canada version)
without CODE 475 (Tyre pressure monitoring system)
without CODE 476 (Lane keeping assist)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 512 (COMAND APS with DVD changer)
without CODE 513 (Speed Limit Assist)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 523 (Audio 20 CD)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
without CODE 614 (Bi-xenon headlamps)
without CODE 615 (Bi-xenon headlamps with active light function)
without CODE 618 (Bi-xenon headlamps)
without CODE 621 (Intelligent Light System (left-hand traffic))
without CODE 622 (Intelligent Light System)
MODEL 242.848/890 1#
with CODE 512 (COMAND APS with DVD changer)
without CODE 234 (Blind Spot Monitoring)
without CODE 429 (7G-DCT)
without CODE 460 (Canada version)
without CODE 475 (Tyre pressure monitoring system)
without CODE 476 (Lane keeping assist)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 513 (Speed Limit Assist)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 523 (Audio 20 CD)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
without CODE 614 (Bi-xenon headlamps)
without CODE 615 (Bi-xenon headlamps with active light function)
without CODE 618 (Bi-xenon headlamps)
without CODE 621 (Intelligent Light System (left-hand traffic))
without CODE 622 (Intelligent Light System)
MODEL 242.848/890 1#
with CODE 523 (Audio 20 CD)
without CODE 234 (Blind Spot Monitoring)
without CODE 429 (7G-DCT)
without CODE 460 (Canada version)
without CODE 475 (Tyre pressure monitoring system)
without CODE 476 (Lane keeping assist)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 512 (COMAND APS with DVD changer)
without CODE 513 (Speed Limit Assist)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
without CODE 614 (Bi-xenon headlamps)
without CODE 615 (Bi-xenon headlamps with active light function)
without CODE 618 (Bi-xenon headlamps)
without CODE 621 (Intelligent Light System (left-hand traffic))
without CODE 622 (Intelligent Light System)
      AN54.65-P-0030-08NKD
    TORQUE SPECIFICATION Right footwell A-pillar ground point *BA00.19-P-1020-01B
    SPECIAL TOOL New passenger car wiring harness repair Figure
    SPECIAL TOOL Wiring harness repair kit, basic Figure
15 Install new electronic ignition lock control unit MODEL 242.848/890 1#
with CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 234 (Blind Spot Monitoring)
without CODE 429 (7G-DCT)
without CODE 460 (Canada version)
without CODE 475 (Tyre pressure monitoring system)
without CODE 476 (Lane keeping assist)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 512 (COMAND APS with DVD changer)
without CODE 513 (Speed Limit Assist)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 523 (Audio 20 CD)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
without CODE 614 (Bi-xenon headlamps)
without CODE 615 (Bi-xenon headlamps with active light function)
without CODE 618 (Bi-xenon headlamps)
without CODE 621 (Intelligent Light System (left-hand traffic))
without CODE 622 (Intelligent Light System)
MODEL 242.848/890 1#
with CODE 512 (COMAND APS with DVD changer)
without CODE 234 (Blind Spot Monitoring)
without CODE 429 (7G-DCT)
without CODE 460 (Canada version)
without CODE 475 (Tyre pressure monitoring system)
without CODE 476 (Lane keeping assist)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 513 (Speed Limit Assist)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 523 (Audio 20 CD)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
without CODE 614 (Bi-xenon headlamps)
without CODE 615 (Bi-xenon headlamps with active light function)
without CODE 618 (Bi-xenon headlamps)
without CODE 621 (Intelligent Light System (left-hand traffic))
without CODE 622 (Intelligent Light System)
MODEL 242.848/890 1#
with CODE 523 (Audio 20 CD)
without CODE 234 (Blind Spot Monitoring)
without CODE 429 (7G-DCT)
without CODE 460 (Canada version)
without CODE 475 (Tyre pressure monitoring system)
without CODE 476 (Lane keeping assist)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 512 (COMAND APS with DVD changer)
without CODE 513 (Speed Limit Assist)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
without CODE 614 (Bi-xenon headlamps)
without CODE 615 (Bi-xenon headlamps with active light function)
without CODE 618 (Bi-xenon headlamps)
without CODE 621 (Intelligent Light System (left-hand traffic))
without CODE 622 (Intelligent Light System)
REFER TO TESTING & REPAIR     AR46.10-P-0810NKB
16 Install new handle strip for liftgate IMPORTANT The reversing camera (B84/3) is integrated in the new handle strip for the liftgate.
17 Retrofit the backup camera wiring harness   AN54.65-P-0030-03NKE
18 Install remaining parts
  Update Vehicle Documentation (VeDoc)
19 Enter special equipment into the on-line vehicle data card IMPORTANT Code 218 (Backup camera)
20 Attach a note "Reversing camera retrofitted as per AN54.65-P-0030NKE " under field organization texts for DG 82 and DG 74
21 Attach a note "Reversing camera retrofitted as per AN54.65-P-0030NKE " under field MODEL 242.848/890 1#
with CODE 510 (Audio 20 CD with 6-disc CD organization texts for DG 54 changer)
without CODE 234 (Blind Spot Monitoring)
without CODE 429 (7G-DCT)
without CODE 460 (Canada version)
without CODE 475 (Tyre pressure monitoring system)
without CODE 476 (Lane keeping assist)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 512 (COMAND APS with DVD changer)
without CODE 513 (Speed Limit Assist)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 523 (Audio 20 CD)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
without CODE 614 (Bi-xenon headlamps)
without CODE 615 (Bi-xenon headlamps with active light function)
without CODE 618 (Bi-xenon headlamps)
without CODE 621 (Intelligent Light System (left-hand traffic))
without CODE 622 (Intelligent Light System)
MODEL 242.848/890 1#
with CODE 512 (COMAND APS with DVD changer)
without CODE 234 (Blind Spot Monitoring)
without CODE 429 (7G-DCT)
without CODE 460 (Canada version)
without CODE 475 (Tyre pressure monitoring system)
without CODE 476 (Lane keeping assist)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 513 (Speed Limit Assist)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 523 (Audio 20 CD)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
without CODE 614 (Bi-xenon headlamps)
without CODE 615 (Bi-xenon headlamps with active light function)
without CODE 618 (Bi-xenon headlamps)
without CODE 621 (Intelligent Light System (left-hand traffic))
without CODE 622 (Intelligent Light System)
MODEL 242.848/890 1#
with CODE 523 (Audio 20 CD)
without CODE 234 (Blind Spot Monitoring)
without CODE 429 (7G-DCT)
without CODE 460 (Canada version)
without CODE 475 (Tyre pressure monitoring system)
without CODE 476 (Lane keeping assist)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 512 (COMAND APS with DVD changer)
without CODE 513 (Speed Limit Assist)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
without CODE 614 (Bi-xenon headlamps)
without CODE 615 (Bi-xenon headlamps with active light function)
without CODE 618 (Bi-xenon headlamps)
without CODE 621 (Intelligent Light System (left-hand traffic))
without CODE 622 (Intelligent Light System)
22 Connect diagnostic system and select vehicle using vehicle identification number (VIN)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
23.1 Carry out variant coding using software calibration number (SCN) MODEL 242.848/890 1#
with CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 460 (Canada version)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 512 (COMAND APS with DVD changer)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 523 (Audio 20 CD)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
MODEL 242.848/890 1#
with CODE 523 (Audio 20 CD)
without CODE 460 (Canada version)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 512 (COMAND APS with DVD changer)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
IMPORTANT "CGW control unit"
"SAM control unit"
"Audio 20"
23.2 Perform variant coding using SCN MODEL 242.848/890 1#
with CODE 512 (COMAND APS with DVD changer)
without CODE 460 (Canada version)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 523 (Audio 20 CD)
without CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 531 (COMAND APS)
MODEL 242.848/890 1#
with CODE 527 (COMAND APS with single
DVD drive (with navigation))
without CODE 460 (Canada version)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 CD with 6-disc CD changer)
without CODE 512 (COMAND APS with DVD changer)
without CODE 520 (Audio 20 USB)
without CODE 522 (Audio 20 radio)
without CODE 523 (Audio 20 CD)
without CODE 531 (COMAND APS)
IMPORTANT "CGW control unit"
"SAM control unit"
"COMAND controller unit"
24 Calibrate reversing camera (B84/3) using diagnostic system and calibration device SPECIAL TOOL Calibration device Figure
25 Disconnect diagnostic system
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
INSPECT Check
26 Perform function test IMPORTANT See the operating instructions for the reversing camera (B84/3).
GROUND POINTS

Number Designation MODEL 242
BA00.19-P-1020-01B Right footwell A-pillar ground point W15/1 Nm 10
Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)
G10442883Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Calibration Device (000 589 01 21 00)
G10442884Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)
G10442885Courtesy of MERCEDES-BENZ USA
PARTS ORDERING NOTE

Part no. Designation Quantity
KG 99 Reversing camera parts kit 1
scientia non olet · About LEMON Manuals
