Remove/install head restraint on front seat - AR91.16-P-0040NKB

MODEL 117, 156, 176, 242, 246 with CODE 275 (Memory package (driver seat, mirrors))

MODEL 117, 176, 242, 246 with CODE 242 (Front passenger seat, electrically adjustable with memory function)

MODEL 156 with CODE 242 (Electrically adjustable front passenger seat with memory)

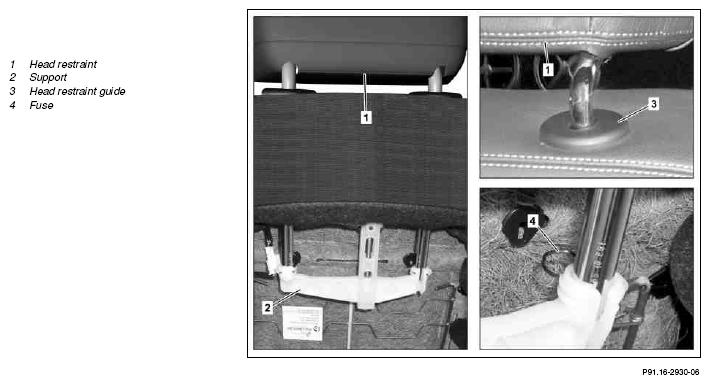

Fig 1: Identifying Head Restraint On Front Seat Remove/Install Components
G10250843Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
1 Remove seat-back lining from front seat backrest   AR91.10-P-1910NKB
2 Remove locking clips (4) from mounting (2)
3 Adjust front seat backrest toward rear until head restraint (1) can be removed from front seat backrest
4 Remove head restraint (1)
5 Install in the reverse order
