Retrofit media interface - AN82.60-P-0016NKB

MODEL 242.8## 1# up to 11/2/14, 246.2## 1# up to 11/2/14 with CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 523 (Audio 20 CD) without CODE 830 (Vehicles for China, additional parts)

MODEL 242.8## 1# up to 11/2/14, 246.2## 1# up to 11/2/14 with CODE 512 (COMAND APS with DVD changer) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 523 (Audio 20 CD) without CODE 830 (Vehicles for China, additional parts)

MODEL 242.8## 1# up to 11/2/14, 246.2## 1# up to 11/2/14 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 523 (Audio 20 CD) without CODE 830 (Vehicles for China, additional parts)

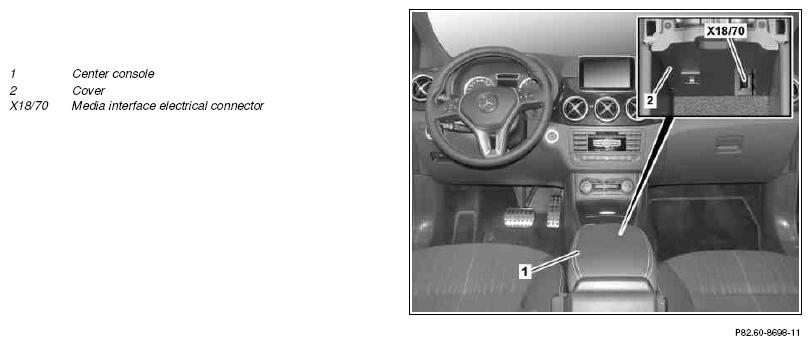

Fig 1: Identifying Center Console, Media Interface Electrical Connector & Cover

Courtesy of MERCEDES-BENZ USA

	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove center console (1)
			AR68.20-P-2000NKB
2	Remove COMAND controller unit or radio
			AR82.60-P-7502NKB
3	Detach fuse box in vehicle interior on passenger side
			AR54.21-P-1255-10NKB
	Install
4	Retrofit media interface control unit		AN82.60-P-0016-01NKB
5	Install media interface wiring harness in center console (1)		AN82.60-P-0016-02NKB
6	Place center console (1) on transmission tunnel
			AR68.20-P-2000NKB
7	Install media interface power supply wiring harness		AN82.60-P-0016-03NKB
		Ground point (center console)	*BA00.19-P-1015-01B
		New passenger car wiring harness repair kit	Fig 2
		Wiring harness repair kit, basic	Fig 3
8	Install optical fiber for Media Oriented System Transport (MOST)	MODEL 242, 246 except CODE 537 (Digital radio) except CODE 810 (Sound system)	AN82.61-P-0001-06NKB
		MODEL 242, 246 with CODE 537 (Digital radio) MODEL 242, 246 with CODE 810 (Sound system)	AN82.61-P-0001-06NKC
9	Install remaining parts
	Update Vehicle Documentation (VeDoc)
10	Enter special equipment into the on-line vehicle data card	CODE 518 (Media interface)
11	Attach note "Media Interface retrofitted as per AN82.60-P-0016NKB " under field organization texts to design group 82
12	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
13	Carry out variant coding using software calibration number (SCN)	"Media interface control unit"
14	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
15	Perform function test with an external audio source	See Media Interface operator's manual.

Fig 2: Identifying Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
