Remove/install windshield washer hose - AR82.35-P-6980NKB
MODEL 156, 176, 242, 246

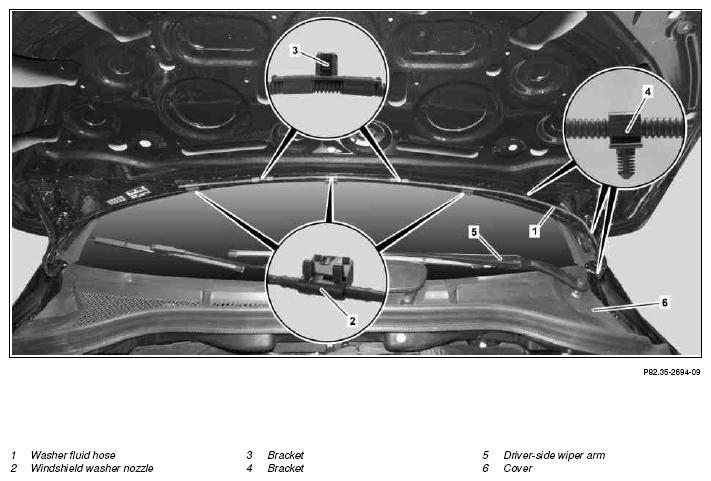

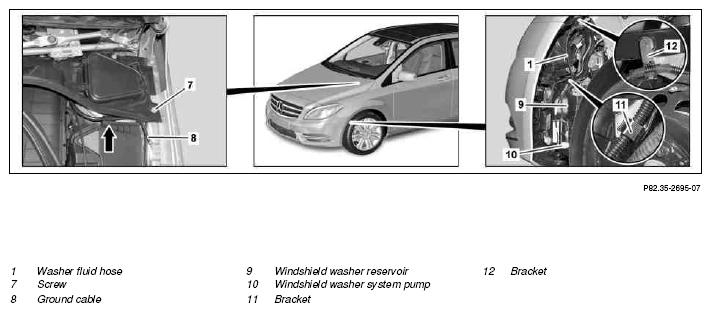

Shown on MODEL 246

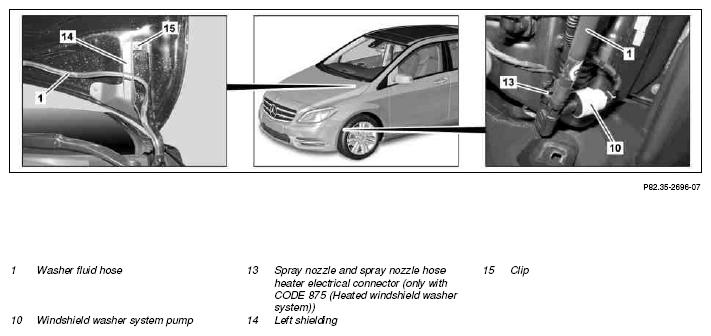

Shown on MODEL 246 with CODE 875 (Heated windshield washer system)
Fig 3: Identifying Windshield Washer Hose Remove/Install Components - Shown On Model 246 With Code 875
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove driver-side wiper arm (5) | MODEL 176, 242, 246 | |
| AR82.30-P-6100NKB | |||
| 2 | Remove cover (6) | MODEL 176, 242, 246 | |
| 3 | Unclip clip (15) from left shielding (14) | MODEL 176, 242, 246 | |
| Fig 4 | |||
| 4 | Unclip windshield washer nozzle (2) from engine hood | ||
| 5 | Unclip brackets (3, 4) | Fig 4 | |
| 6 | Unscrew bolt (7) | MODEL 176, 242, 246 | |
| 7 | Unhook ground line (8) from bracket of fuse box (arrow) | ||
| 8 | Expose washer fluid hose (1) as far as left front lamp unit | ||
| 9 | Raise vehicle with vehicle lift | AR00.60-P-1000AK | |
| 10 | Remove left front fender liner until washer fluid hose (1) is accessible | AR88.10-P-1300NKB | |
| 11 | Disconnect spray nozzle and spray nozzle hose heater electrical connector (13) | MODEL 156, 176, 242, 246 with CODE 875 (Heated windscreen washer system) |
|
| 12 | Disconnect washer fluid hose (1) from windshield washer system pump (10) | Carefully separate washer fluid hose (1). Otherwise damage to the windshield washer system pump (10) may occur thereby resulting in leaks due to tilting of the hose coupling. |
|
| 13 | Unclip brackets (11, 12) | ||
| 14 | Expose washer fluid hose (1) and remove | ||
| 15 | Install in the reverse order | ||
| 16 | Correct fluid level of windshield washer system | ||
| AP82.35-P-8210AK |
