Remove/install satellite radio control unit - AR82.60-P-7545NKB
MODEL 242 with CODE 536 (SIRIUS satellite radio)
MODEL 246 with CODE 536 (SIRIUS satellite radio)
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect Star Diagnosis and perform initial startup of satellite digital audio radio (SDAR) control unit (N87/5) | When replacing the satellite digital audio radio (SDAR) control unit (N87/5). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | ||
| 3 | Remove trunk side paneling on right | AR68.30-P-4800NKB | |

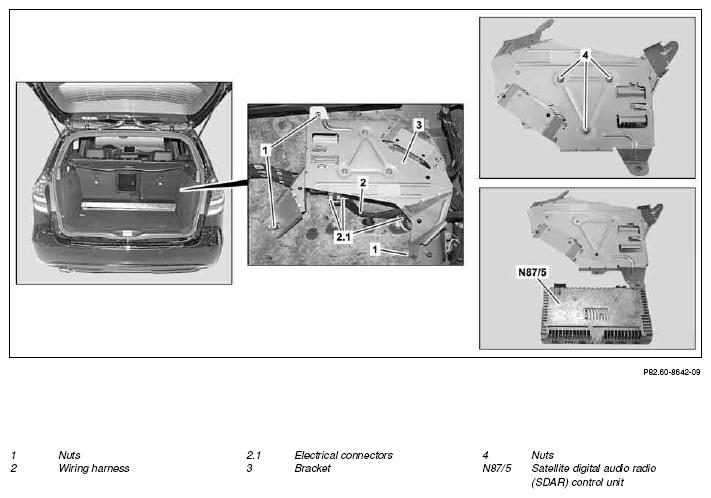

| 4 | Unclip wiring harness (2) from the body | ||
| 5 | Unscrew nuts (1), remove bracket (3) with satellite digital audio radio (SDAR) control unit (N87/5) from the guide and place to one side with the wiring harness (2) connected | ||
| 6 | Disconnect electrical connectors (2.1) and unclip wiring harness (2) from the bracket (3) | ||
| 7 | Remove bracket (3) with the satellite digital audio radio (SDAR) control unit (N87/5) | ||
| 8 | Unscrew nuts (4) and remove satellite digital audio radio (SDAR) control unit (N87/5) from bracket (3) | When replacing the satellite digital audio radio (SDAR) control unit (N87/5). | |
| 9 | Install in the reverse order |
