Remove/install track rod - AR35.20-P-0109RK

MODEL 231

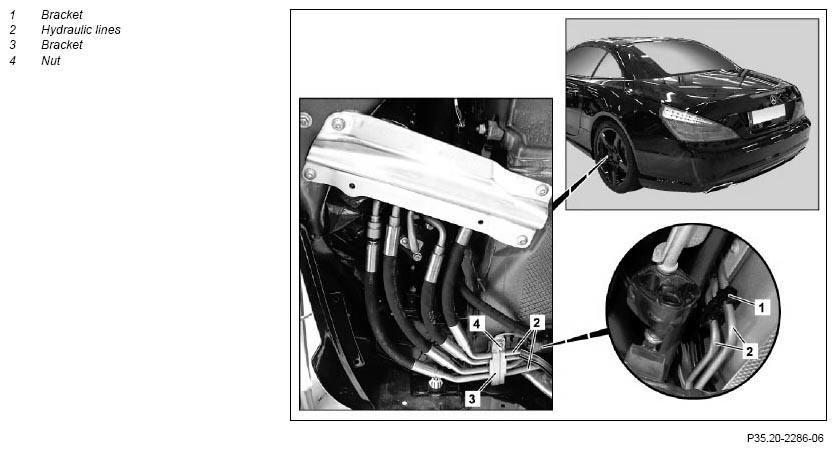

Fig 1: Track Rod Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

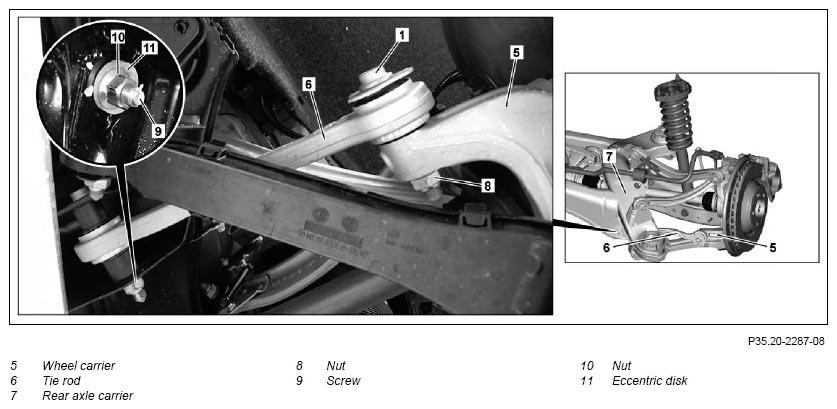

Fig 2: Track Rod Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		While working on the rear axle care must be taken to ensure that the surfaces of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.
		Only tighten bolts and nuts of the chassis components in the curb condition.
1	Unscrew nut (4) and remove bracket (3).
2	Unhook hydraulic lines (2) from bracket (1)
3	Mark installation position of eccentric disk (11)	The toe-in is set ex-factory with the eccentric disk (11).
4	Unfasten nuts (8, 10) and pull out bolts (1, 9)		*BA35.20-P-1001-04I
			*BA35.20-P-1002-04I
5	Remove tie rod (6) from wheel carrier (5) and rear axle carrier (7)
6	Install in the reverse order
7	Perform wheel alignment check		AR40.20-P-0200R

TIE ROD

Number	Designation			Model 231
BA35.20-P-1001-04I	Self-locking nut, tie rod at wheel carrier	Stage 1	Nm	50
		Stage 2	∠°	90
BA35.20-P-1002-04I	Self-locking nut, track rod to rear axle carrier	Stage 1	Nm	50
		Stage 2	∠°	90
