Drain/fill low-temperature circuit coolant - AR09.41-P-6834RKC
ENGINE 279 in MODEL 231

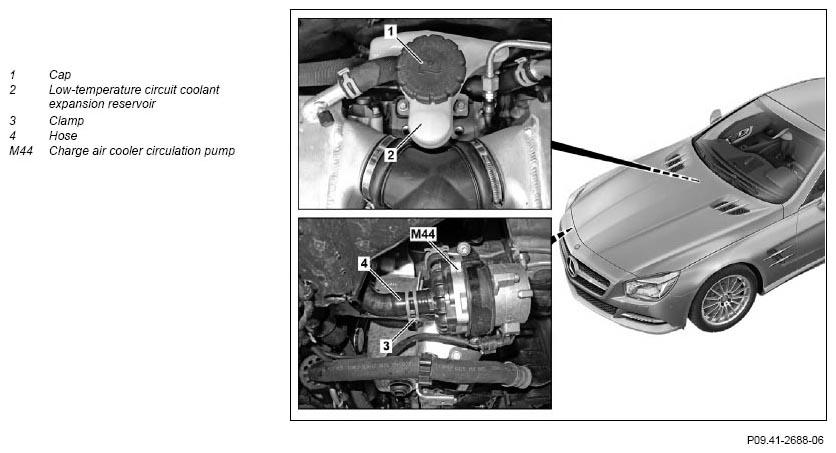

Fig 1: Cap, Low-Temperature Circuit Coolant Expansion Reservoir, Clamp, Hose And Charge Air Cooler Circulation Pump
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove | |||
| 1 | Unscrew cap (1) on low-temperature circuit coolant expansion reservoir (2) | Unscrew cap (1) slowly on low-temperature circuit coolant expansion reservoir (2) and reduce overpressure Scolding can occur otherwise due to spitting out, hot coolant. |
|
| 2 | Remove bottom engine compartment paneling | AR61.20-P-1105RK | |
| 3 | Disconnect hose (4) at the charge air cooler circulation pump (M44) | ||
| Install | |||
| 4 | Attach hose (4) at the charge air cooler circulation pump (M44) | ||
| 5 | Venting air from low-temperature circuit | AR20.00-P-1145H | |
| Check | |||
| 6 | Check low-temperature circuit cooling system for leaktightness | AR09.41-P-1010RKC | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an engine test run; check cooling system low-temperature circuit for proper function | ||
| 8 | Install lower engine compartment paneling | AR61.20-P-1105RK |
