Remove/install electronic selector lever module (ESM) - AR27.60-P-0901RK
MODEL 231 with ENGINE 276, 278, 279
MODIFICATION NOTES
| 30.11.15 | Removal of selector lever handle added to document. | Operation step 1 |
Shown on model 231 with engine 278

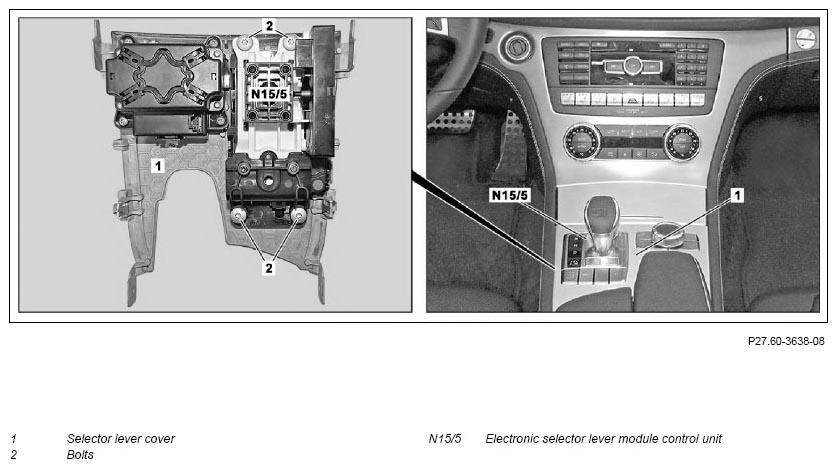

Fig 1: Electronic Selector Lever Module Remove/Install Components - Shown On Model 231 With Engine 278
Shown on model 231 with engine 279

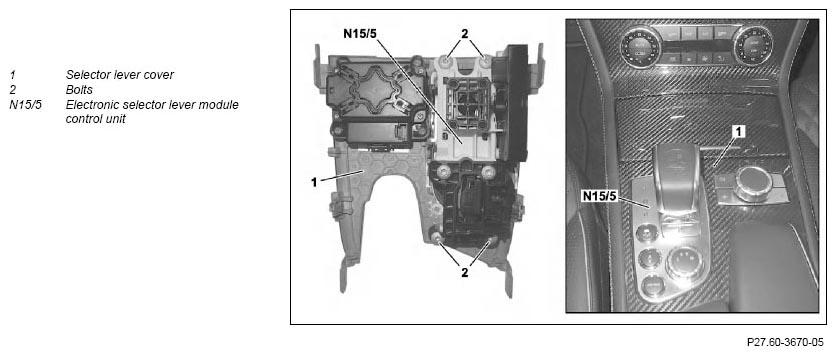

Fig 2: Electronic Selector Lever Module Remove/Install Components - Shown On Model 231 With Engine 279
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
|---|---|---|---|
| Remove/install | |||
| 1 | Remove selector lever handle | Model 231.479 | AR27.60-P-0920-01AMG |
| 2 | Remove selector lever cover (1) | AR68.20-P-2309RK | |
| 3 | Remove bolts (2) and remove electronic selector lever module control unit (N15/5) | ||
| 4 | Install in the reverse order | ||
| 5 | Commission the electronic selector lever module control unit (N15/5) using the diagnostic system | Only when replacing the electronic selector lever module control unit (N15/5). | |
| AD00.00-P-2000-04A |
