Remove/install cover at selector lever - AR68.20-P-2309RK

MODEL 231

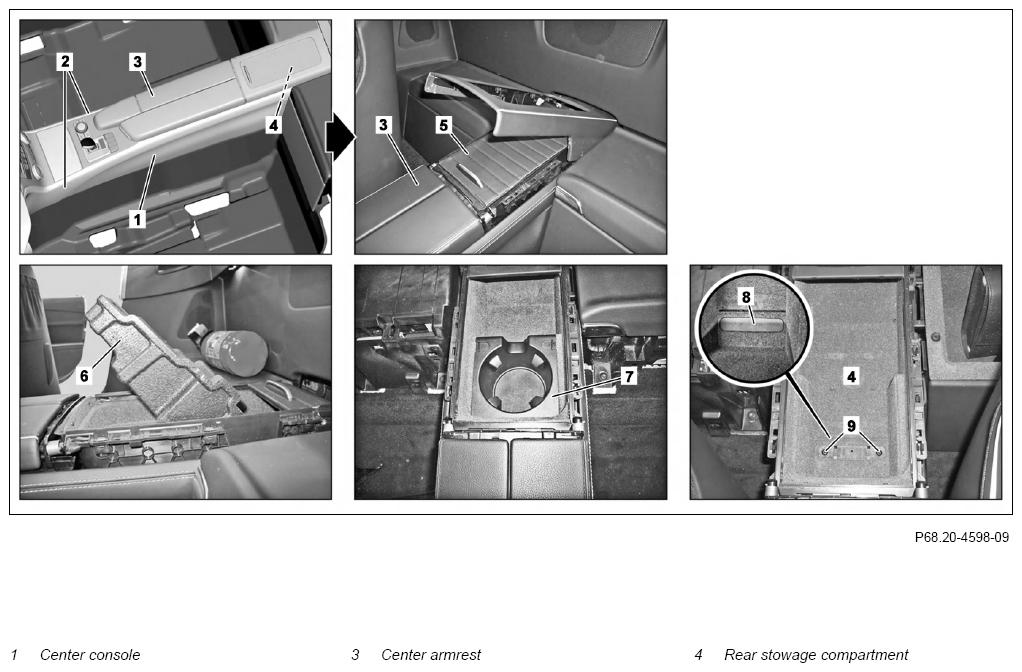

Fig 1: Cover At Selector Lever Remove/Install Components (1 Of 3)
G11129085Courtesy of MERCEDES-BENZ USA

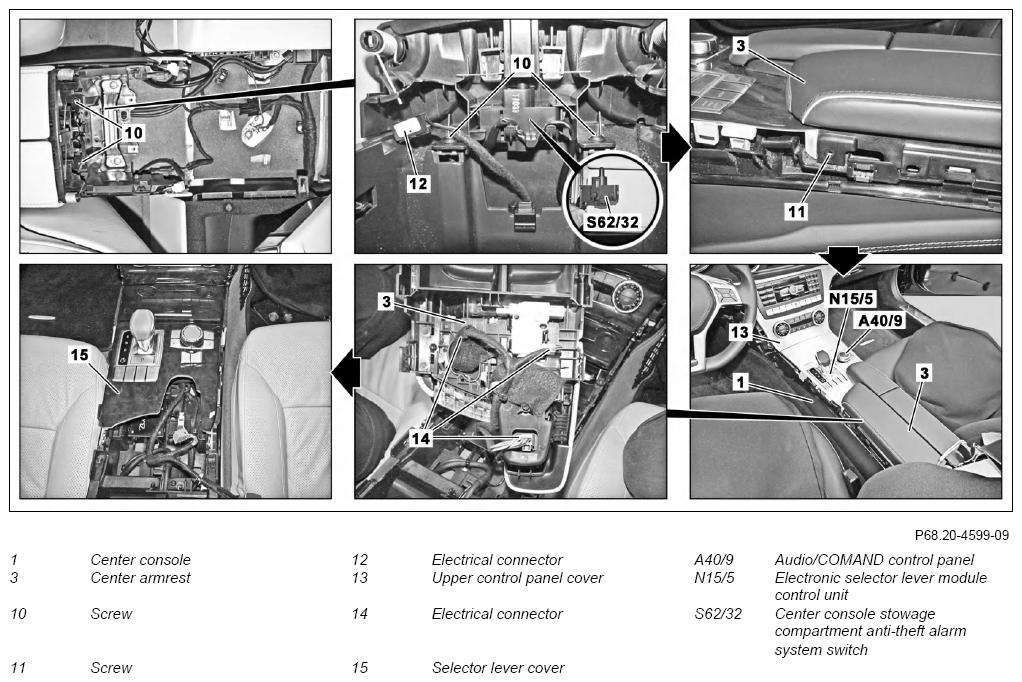

Fig 2: Cover At Selector Lever Remove/Install Components (2 Of 3)
G11129086Courtesy of MERCEDES-BENZ USA

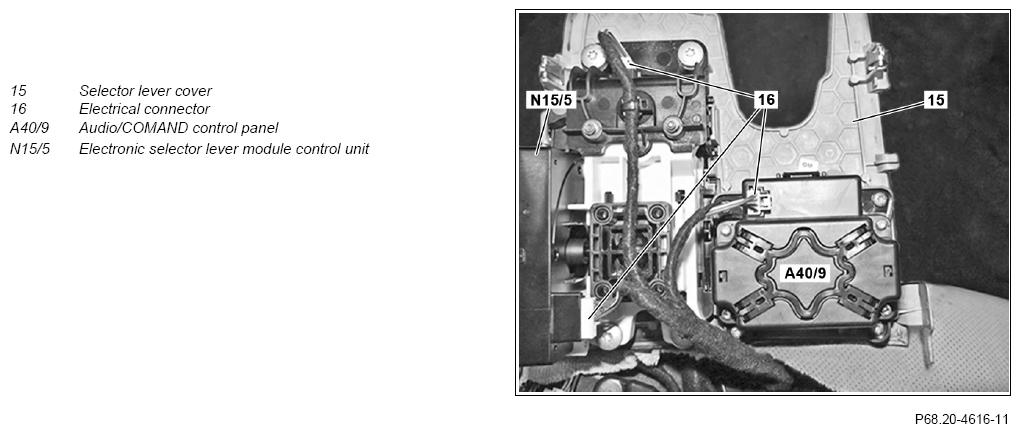

Fig 3: Cover At Selector Lever Remove/Install Components (3 Of 3)
G11129087NOTESREMOVINGINSTALLINGIMPORTANTIMPORTANTINSTALLATION IMPORTANTIMPORTANTIMPORTANTIMPORTANTINSTALLATION IMPORTANTCourtesy of MERCEDES-BENZ USA
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73) IMPORTANT KEYLESS-GO start/stop button (S2/3) only with code (889) KEYLESS-GO.
2 Remove rear stowage compartment (4)   AR68.20-P-2460RK
3 Remove screws/bolts (10)
4 Disconnect electrical connection (12)
5 Unscrew bolts (11) on left and right from center armrest (3)
6 Disconnect electrical connectors (14) at bottom of center armrest (3) IMPORTANT For this purpose lift center armrest (3) at front. Mark installation position.
INSTALLATION IMPORTANT Observe markings.

7 Unclip center console stowage compartment anti-theft alarm system switch (S62/32) IMPORTANT For this purpose lift center armrest (3) at rear.
8 Remove center armrest (3)
9 Lift selector lever cover (15) at rear and unhook at front from center console (1)
10 Remove selector lever cover (15) with electronic selector lever module control unit (N15/5) and audio/COMAND control panel (A40/9) IMPORTANT Remove until electrical connectors (16) are accessible.
11 Disconnect electrical connections (16) IMPORTANT On rear of selector lever cover (15). Mark installation position.
INSTALLATION IMPORTANT Observe markings.

12 Remove selector lever cover (15) electronic selector lever module control unit (N15/5) and audio/COMAND control panel (A40/9)
13 Install in the reverse order
