Remove/install wheel carrier - AR35.20-P-0115RK

MODEL 231

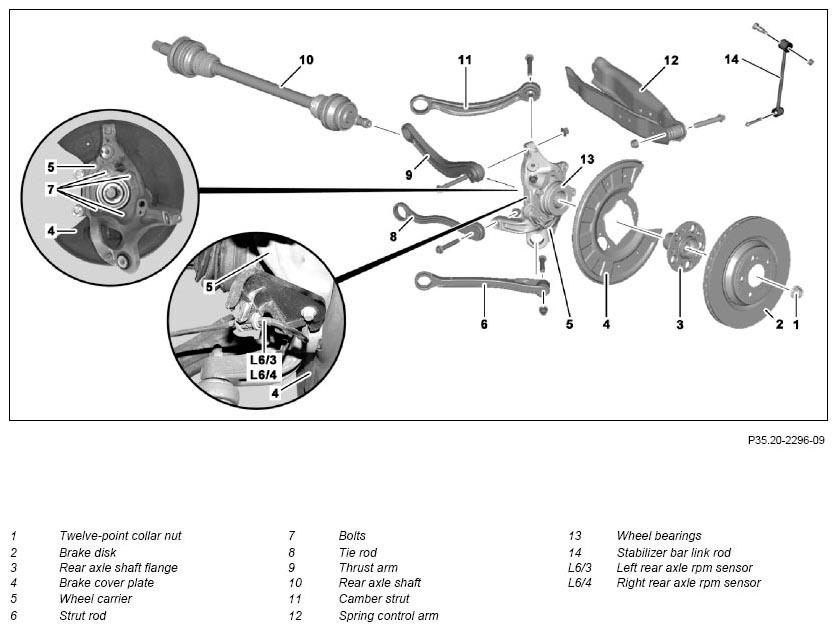

Fig 1: Wheel Carrier Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by pinching or crushing when working on springs or spring bodies that are under tension	Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves.	AS00.00-Z-0001-01A
	Notes on fitting hydraulic lines and hoses		AH32.50-P-0001-02A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on Active Body Control suspension		AH32.50-P-0001-01LF
	Notes on Active Body Control suspension		AH32.50-P-0001-01N
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Switch off ignition
2	Secure vehicle on vehicle lift		AR00.60-P-0100TX
3	Lift vehicle on vehicle lift		AR00.60-P-1000TX
4	Remove left or right rear wheel
			AP40.10-P-4050EW
5.1	Relieve pressure in ABC system	Model 231.### ## up to 021273 with code 487 (Active Body Control (ABC)) Before opening the hydraulic system, thoroughly clean the area surrounding the separation point. Otherwise minute particles of dirt in the hydraulic components can result in malfunctions and total failure of the hydraulic system.	AR32.50-P-0001-01N
		Bleed screw on soldered fitting in hydraulic line	*BA32.50-P-1001-02B
5.2	Release pressure in ABC system using Star Diagnosis	Model 231.### ## as of 021274 with code 487 (Active Body Control (ABC))	AR32.50-P-0001-01LF
			AD00.00-P-2000-04A
6	Unscrew twelve-point collar nut (1) from rear axle shaft (10)	The vehicle must no longer be moved on its wheels when the twelve-point collar nut (1) has been loosened. Otherwise it could lead to wheel bearing damage. Install new twelve-point collar nut (1).	AR35.30-P-0115-01TX
		Collar nut, rear axle shaft to rear axle shaft flange	*BA35.30-P-1001-01J
7	Remove left or right rear brake disk (2)		AR42.10-P-0220RK
8	Detach left rear axle rpm sensor (L6/3) and right rear axle rpm sensor (L6/4) from wheel carrier (5)
9	Unclip electrical lines from wheel carrier (5)
10	Detach tie rod (8) from wheel carrier (5)	Tighten bolted connection finger-tight only. Self-locking nut, tie rod to wheel carrier	*BA35.20-P-1001-04I
11	Detach strut rod (6) from wheel carrier (5)	Tighten bolted connection finger-tight only. Self-locking nut, strut rod to wheel carrier	*BA35.20-P-1002-03I
12	Detach camber strut (11) from wheel carrier (5)	Tighten bolted connection finger-tight only. Self-locking nut, camber strut to wheel carrier	*BA35.20-P-1002-02I
13	Detach thrust arm (9) from wheel carrier (5)	Tighten bolted connection finger-tight only. Self-locking nut, thrust arm to wheel carrier	*BA35.20-P-1002-05G
14	Check whether rear axle shaft (10) is firmly seated in rear axle shaft flange (3)	If the rear axle shaft (10) is jammed: ↓ Press rear axle shaft (10) out of rear axle shaft flange (3)	AR35.30-P-0115-03SX
		Bracket	Fig 2
		Extraction and insertion tool	Fig 3
15	Detach spring control arm (12) from wheel carrier (5)
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate	Raise the wheel carrier (5) using a transmission jack and transmission plate until the rear axle shaft (10) is almost horizontal. Then tighten all finger-tight threaded connections securely.	WS26.00-P-3309B
16	Detach stabilizer bar link rod (14) from spring control arm (12)	Model 231 except code 487 (Active Body Control (ABC))	AR32.20-P-0315RK
17	Remove wheel carrier (5) with brake cover plate (4) and wheel bearing (13)	Remove wheel carrier (5) carefully. The rubber boot and the rotor for the left rear axle rpm sensor (L6/3) and right rear axle rpm sensor (L6/4) on the rear axle shaft (10) can otherwise be damaged.
18	Unscrew bolts (7) and detach wheel bearing (13) from wheel carrier (5)	When replacing the wheel bearing (13). A new wheel carrier (5) is always shipped with a new wheel bearing (13). Wheel bearing to wheel carrier	*BA35.20-P-1001-06D
19	Detach brake cover plate (4) from wheel carrier (5)	When replacing the wheel carrier (5)
20	Install in the reverse order
21	Fill and bleed ABC system	Model 231 with code 487 (Active Body Control (ABC))	AR32.50-P-0021SX
22	Perform wheel alignment check	When replacing the wheel carrier (5)	AR40.20-P-0200R

ACTIVE BODY CONTROL, LINES

Number	Designation			Model 231 with code 487
BA32.50-P-1001-02B	Bleed screw on soldered fitting in hydraulic line	M10 x 1	Nm	20

TIE ROD

Number	Designation			Model 231
BA35.20-P-1001-04I	Self-locking nut, tie rod to wheel carrier	Stage 1	Nm	50
		Stage 2	∠°	90

HUB

Number	Designation		Model 231
BA35.20-P-1001-06D	Wheel bearing to wheel carrier	Nm	70

CAMBER STRUT

Number	Designation				Model 231
BA35.20-P-1002-02I	Self-locking nut, camber strut to wheel carrier	M12	Stage 1	Nm	50
			Stage 2	∠°	90

STRUT ROD

Number	Designation				Model 231
BA35.20-P-1002-03I	Self-locking nut, strut rod to wheel carrier	M12	Stage 1	Nm	50
			Stage 2	∠°	90

THRUST ARM

Number	Designation				Model 231
BA35.20-P-1002-05G	Self-locking nut, thrust arm to wheel carrier	M12	Stage 1	Nm	50
			Stage 2	∠°	90

REAR AXLE SHAFT

Number	Designation				Model 231
BA35.30-P-1001-01J	Collar nut, rear axle shaft to rear axle shaft flange	Self-locking		Nm	350
		not self-locking	Stage 1	Nm	-
			Stage 2	∠°	-

Fig 2: Identifying Bracket (210 589 01 40 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA
