Remove/install torsion bar on rear axle - AR32.20-P-0315RK

MODEL 231 without CODE 487 (Active Body Control (ABC))

Shown on right side of vehicle

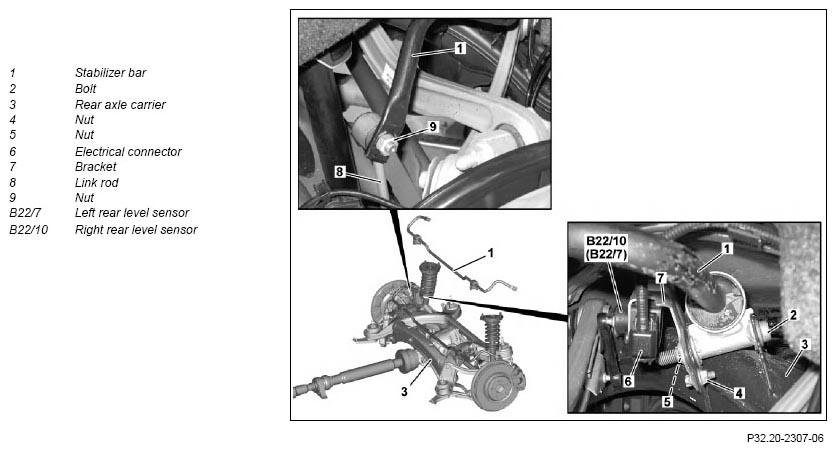

Fig 1: Torsion Bar On Rear Axle Remove/Install Components - Shown On Right Side Of Vehicle
G11128674Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by pinching or crushing when working on springs or spring bodies that are under tension Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves. AS00.00-Z-0001-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
NOTES Notes on repair work on suspension components   AH00.00-P-0100-01A
1 Secure vehicle on vehicle lift   AR00.60-P-0100TX
2 Lift vehicle on vehicle lift   AR00.60-P-1000TX
3 Remove rear wheels   AP40.10-P-4050EW
REFER TO MAINTENANCE
4 Disconnect electrical connection (6)
5 Unscrew the nuts (4) and lay left rear (B22/7) and right rear (B22/10) level sensors with bracket to the side INSTALLATION IMPORTANT observe installation position, do not twist.
TORQUE SPECIFICATION Nut, level sensor bracket to rear axle carrier
*BA82.10-P-1009-02A
6 Lower rear axle carrier (3) at front MODEL 231 with ENGINE 157, 276, 278
NOTES Do not lower rear axle carrier (3) too much. Otherwise lines and components could get damaged.
AR35.10-P-0016RK
7 Unscrew nut (9) and remove torsion bar (1) from link rod (8) INSTALLATION IMPORTANT Only tighten nuts and bolts when vehicle is in a ready-to-drive condition.
TORQUE SPECIFICATION Nut, link rod to stabilizer bar
*BA32.20-P-1002-04G
8 Unscrew nut (5), pull out bolt (2) and remove stabilizer bar (1) on rear axle carrier (3) TORQUE SPECIFICATION Nut, torsion bar to rear axle carrier *BA32.20-P-1006-04G
9 Remove stabilizer bar (1) of rear axle carrier (3)
10 Remove stabilizer bar (1) to left side of vehicle
11 Install in the reverse order
INSPECT Check
12 Check headlamp adjustment Vehicles with xenon headlamps
REFER TO MAINTENANCE   AP82.10-P-8260R
REAR AXLE TORSION BAR

Number Designation MODEL 231
BA32.20-P-1006-04G Nut, torsion bar to rear axle carrier Nm 80
REAR AXLE LEVEL SENSOR

Number Designation MODEL 231
BA82.10-P-1009-02A Nut, level sensor bracket to rear axle carrier Nm 8
REAR AXLE TORSION BAR

Number Designation MODEL 231
BA32.20-P-1002-04G Nut, link rod to stabilizer bar Nm 50
