Remove/install rear axle shaft - AR35.30-P-0620RKC

MODEL 231 with ENGINE 279

Shown on right of rear axle

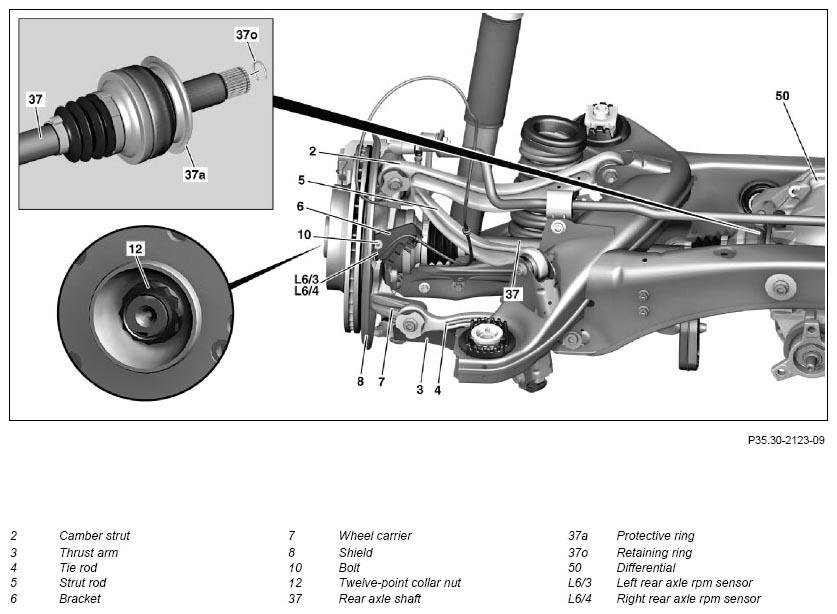

Fig 1: Rear Axle Shaft Remove/Install Components - Shown On Right Of Rear Axle

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
1	Secure vehicle on vehicle lift		AR00.60-P-0100TX
2	Remove rear wheel
			AP40.10-P-4050EW
3	Remove twelve-point collar nut (12) from rear axle shaft (37)	Replace and lock the twelve- point collar nut (12).	AR35.30-P-0115-01TX
		Collar nut, rear axle shaft to rear axle shaft flange	*BA35.30-P-1001-01J
4	Remove wheel carrier (7)	The wheel carrier (7) cannot be folded down far enough to enable the rear axle shaft (37) to be extended.	AR35.20-P-0115RK
5	Pry rear axle shaft (37) out of rear axle differential (50) and remove rear axle shaft (37)	Do not fasten assembly lever to the protective ring (37a). Support assembly lever e.g. with socket wrench on differential (50). Replace locking ring (37o) on inner spline profile.
	Check
6	Check constant velocity joints and rubber boots	If the constant velocity joint is defective, the rear axle shaft (37) must be completely replaced. If a rubber boot is damaged or leaky, see: ↓ Replace rubber boot	AR35.30-P-0661P
7	Check radial sealing ring on side of rear axle differential (50)	If damaged or leaky, see: ↓ Replace radial sealing ring on side of differential (50).	AR35.31-P-0545RKC
8	Install in the reverse order
9	Check oil level in rear axle differential (50) and correct if necessary		AR35.31-P-0520-03RKC
		Filling capacity	*BF35.31-P-1001-01T
		Oil filler screw of rear axle differential	*BA35.31-P-1002-02H
		Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
		Loctite 7063 cleaning spray (150 ml)	*BR00.45-Z-1046-04A
10	Perform wheel alignment check		AR40.20-P-0200R
