Remove/install pyrofuse electrical connector - AR54.15-P-1100RK
MODEL 231
Shown on installed front prefuse box (F32)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003RK | |
| 2 | Remove front prefuse box (F32) and place to one side with electrical lines attached | AR54.15-P-1330RK | |

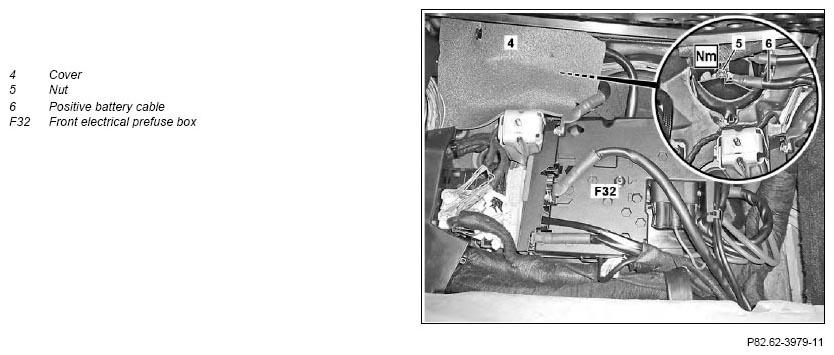

| 3 | Unscrew nut (5) and detach positive battery cable (6) from through-plating on firewall (F52/1) | To do so, pull cover (4) to one side. | |

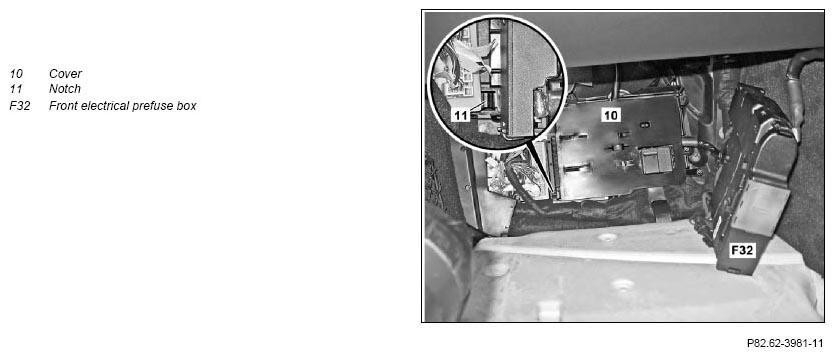

| 4 | Remove cover (10) | ||

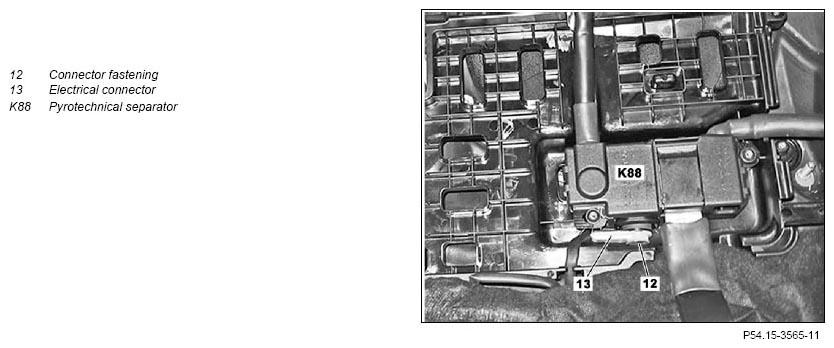

| 5 | Release plug connector catch (12) and detach electrical connection (13) from pyrotechnical separator (K88) | ||
| 6 | Expose wiring harness of electrical connection (13) | ||
| 7 | Cut off damaged wiring harness | ||
| Replace wiring harness | |||

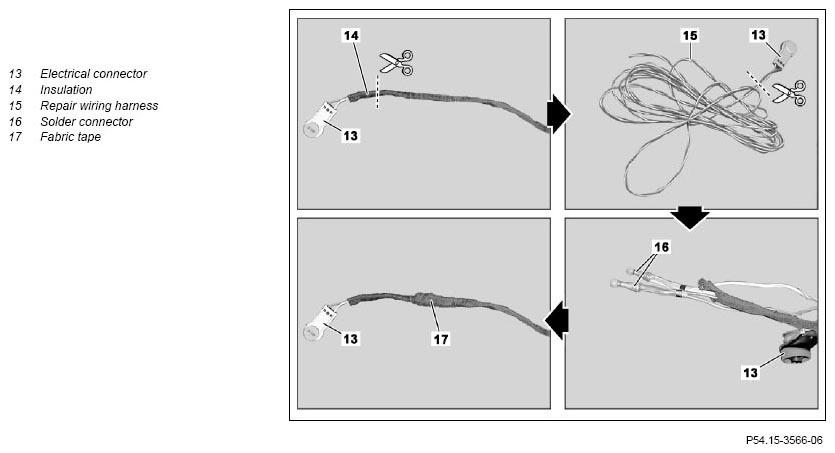

| 8 | Determine length of damaged wiring harness and cut repair wiring harness (15) to suit | ||
| 9 | Connect new electrical connection (13) of repair wiring harness (15) using solder connector (16) to old wiring harness | AR00.19-P-0100A | |
| 10 | Wrap fabric tape (17) around repair area on wiring harness | ||
| Install | |||
| 11 | Route wiring harness to pyrotechnical separator (K88) and fix in place | Ensure that wiring harness is routed properly. Otherwise the wiring harness will be damaged by chafing or crushing. |
|
| 12 | Connect electrical connection (13) to pyrotechnical separator (K88) | ||
| 13 | Install cover (10) | ||
| 14 | Connect positive battery cable (6) to through-plating on firewall (F52/1) | ||
| *BA54.15-P-1010-01A | |||
| 15 | Install front prefuse box (F32) | AR54.15-P-1330RK | |
| 16 | Connect ground cable to battery | AR54.10-P-0003RK |
FUSE AND RELAY BOX
| Number | Designation | MODEL 231 | ||
|---|---|---|---|---|
| BA54.15-P-1010-01A | Nut, positive line to through plating on firewall | M8 | Nm | 15 |
