Remove/install battery sensor - AR54.10-P-0002RK
MODEL 231
| Remove/install | |||
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||

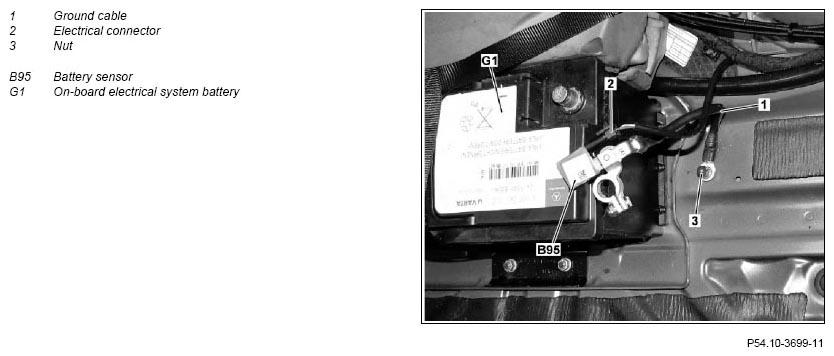

| 1 | Disconnect ground line (1) from the on-board electrical system battery (G1) | AR54.10-P-0003RK | |
| 2 | Disconnect electrical connector (2) from battery sensor (B95) | ||
| 3 | Unscrew nut (3) and remove battery sensor (B95) | *BA54.10-P-1002-01F | |
| 4 | Install in the reverse order |
BATTERY
| Number | Designation | Model 231 | |
|---|---|---|---|
| BA54.10-P-1002-01F | Nut, battery ground line to body | Nm | 9 |
