Remove/install battery - AR54.10-P-0005RK

MODEL 231

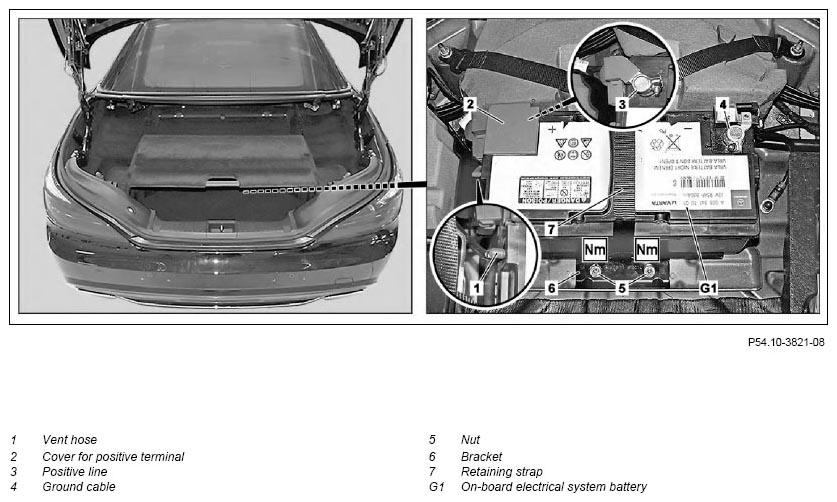

Fig 1: Battery Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
	Remove/install
1	Detach ground line (4) from on-board electrical system battery (G1)	Check that ground line (4) is seated securely. Otherwise damage may occur to the negative terminal.	AR54.10-P-0003RK
2	Remove positive terminal cover (2)
3	Detach positive line (3) from on-board electrical system battery (G1) and place to one side	Nut, battery cable to on-board electrical system battery negative terminal/positive terminal	*BA54.10-P-1006-01F
4	Detach bleed hose (1) from on-board electrical system battery (G1)
5	Remove bracket (6) with retaining strap (7) and place to one side	To do this, unscrew nuts (5). The retaining strap (7) and bracket (6) form a unit and they cannot be separated. Nut/bolt, battery mounting rail	*BA54.10-P-1001-01F
6	Remove on-board electrical system battery (G1)
7	Install in the reverse order

BATTERY

Number	Designation		MODEL 231
BA54.10-P-1001-01F	Nut/bolt, battery mounting rail	Nm	20

BATTERY

Number	Designation		MODEL 231
BA54.10-P-1006-01F	Nut, battery cable to on-board electrical system battery negative terminal/positive terminal	Nm	6
