Disassemble/assemble front bumper - AR88.20-P-2050LF
MODEL 222
Shown with CODE U60 (Pedestrian protection)
Shown with CODE U60 (Pedestrian protection), with CODE 235 (Active parking assist) and with CODE 238 (Active lane keeping assist)
Shown with CODE U60 (Pedestrian protection) and CODE 235 (Active parking assist) with removed impact absorber (5)
Fig 3: Front Bumper Disassemble/Assemble Components - Shown With Code U60 And 235 With Removed Impact Absorber
| Remove | |||
| 1 | Remove front bumper (1) | AR88.20-P-2000LF | |
| Disassemble/assemble | |||
| 2 | Remove license plate and license plate brackets | ||
| 3 | Remove pedestrian protection sensors (3) | Model 222 with code U60 (Active Bonnet (Pedestrian protection)) |
AR91.60-P-0950EWM |
| 4 | Remove impact absorber (5) | ||
| General information on the impact absorber | AH88.20-P-1000-01A | ||
| 5 | Remove front parking system distance sensors (2) | Model 222 with code 235 (Active Parking Assist) |
AR54.65-P-0001LF |
| 6 | Unclip front bumper radar sensors (7) | Model 222 with code 233 (DISTRONIC PLUS) with code 237 (Active Blind Spot Assist) with code 238 (Active lane keeping Assist) with code 258 (COLLISION PREVENTION ASSIST) with code 266 (Steer Assist) with code 268 (Brake Assist System Plus) with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q) with code 271 (Autonomous brake intervention/pedestrian protection) with code 300 (PRE-SAFE® Brake) |
AR30.30-P-1210LF |
| 7 | Unclip electrical wiring harness (6) from front bumper (1) and remove | ||
| 8 | Remove reinforcing bars (8) | ||
| 9 | Remove cover (9) | Fig 5 | |
| 10 | Remove expansion rivets (11) | ||
| 11 | Unclip left and right carrier (10) | Fig 5 | |

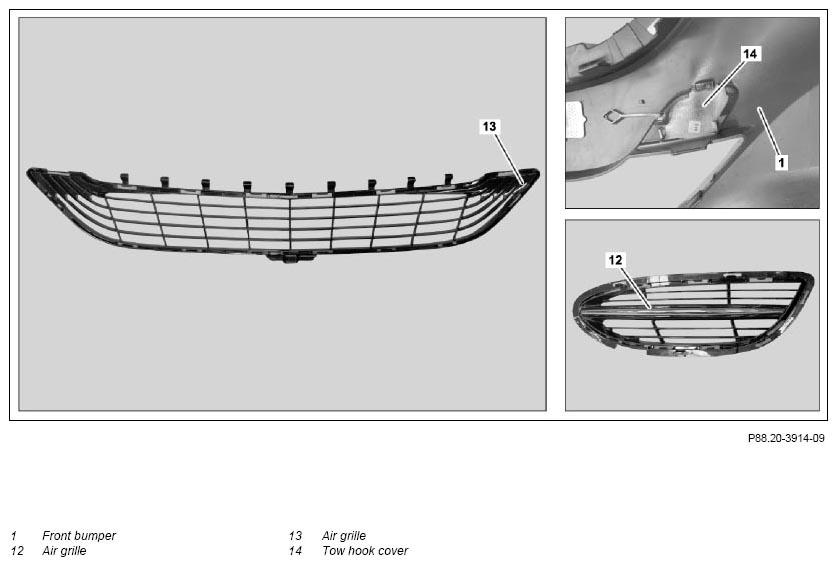

| 12 | Remove left air grille (12) and right air grille (12) | Fig 5 | |
| 13 | Remove air grille (13) | Fig 5 | |
| 14 | Remove tow hook cover (14) | ||
| 15 | Assemble in the reverse order | ||
| Install | |||
| 16 | Install front bumper (1) | AR88.20-P-2000LF |
